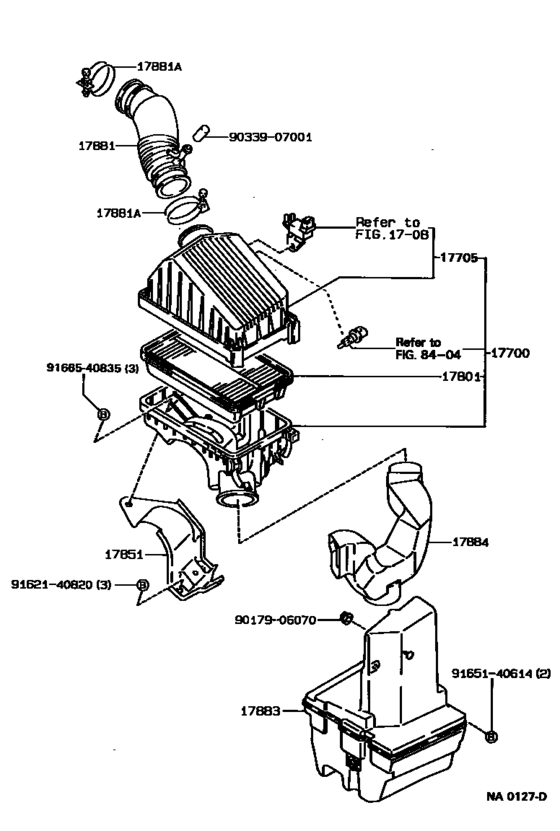

Air Cleaner ([05.1987 - 08.1989] (8705-8908)4AGE) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- General
- Frame
- AE92
- grade
- GTI
- body
- LB
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 08.1989
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-16370 Cleaner Assy, Air[05.1987 - 05.1989] 4AGE..AE92 |
17700-16370 |
US $426.61 |
||
|
17705
|
17705
17705-16160
Cap Sub-Assy, Air Cleaner
[05.1987 - 05.1989] 4AGE..AE92 |
17705-16160 |
— | ||
|
17801
|
17801
17801-16020 Element Sub-Assy, Air Cleaner Filter[05.1987 - 05.1989] 4AGE,4AFE..AE9# |
17801-16020 |
US $43.17 |
||
| replacement | |||||
|
17801
|
17801
17801-16020-83 ELEMENT SUB ASSY[05.1987 - 05.1989] 4AGE,4AFE..AE9# |
17801-16020-83 |
US $46.49 |
||
|
17851
|
17851
17851-15010 Bracket, Air Cleaner Support[05.1987 - 05.1989] 4AGE,4AFE..AE9# |
17851-15010 |
US $39.02 |
||
|
17881
|
17881
17881-16130
Hose, Air Cleaner, No.1
[05.1987 - 05.1989] 4AGE..AE92 |
17881-16130 |
— | ||
|
17881A
|
17881A
90460-80002 Clamp(For Air Cleaner Hose, No.1)[05.1989 - 08.1989] 4AGE..AE92..GEN |
90460-80002 |
US $6.84 |
||
| replacement | |||||
|
17881A
|
17881A
96111-10800 Clamp, Hose(For Air Cleaner Duct)[05.1989 - 08.1989] 4AGE..AE92..GEN |
96111-10800 |
from US $2.56 |
||
|
17881A
|
17881A
96111-10800 Clamp, Hose(For Air Cleaner Duct)[05.1987 - 05.1989] 4AGE..AE92 |
96111-10800 |
from US $2.56 |
||
|
17883
|
17883
17883-16040 Hose, Air Cleaner, No.3[05.1987 - 05.1988] 1C..CE90; 4AGE,4AFE..AE9# |
17883-16040 |
US $90.27 |
||
|
17883
|
17883
17883-16041 Hose, Air Cleaner, No.3[05.1988 - 08.1993] 1C..CE90; 4AGE,4AFE..AE9# |
17883-16041 |
US $66.54 |
||
|
17884
|
17884
17882-16100 Hose, Air Cleaner, No.4[05.1987 - 08.1989] 4AGE,4AFE..AE9# |
17882-16100 |
US $26.30 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9033907001
|
9033907001
90339-07001 Plug, Heater Water |
90339-07001 |
from US $3.20 |
||
|
9162140820
|
9162140820
91621-40820 Bolt |
91621-40820 |
US $2.08 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $2.05 |
||
|
9166540835
|
9166540835
91665-40835
New Genuine Part
|
91665-40835 |
— | ||
| replacement | |||||
|
9166540835
|
9166540835
91661-60835 New Genuine Part |
91661-60835 |
US $1.40 |
||
