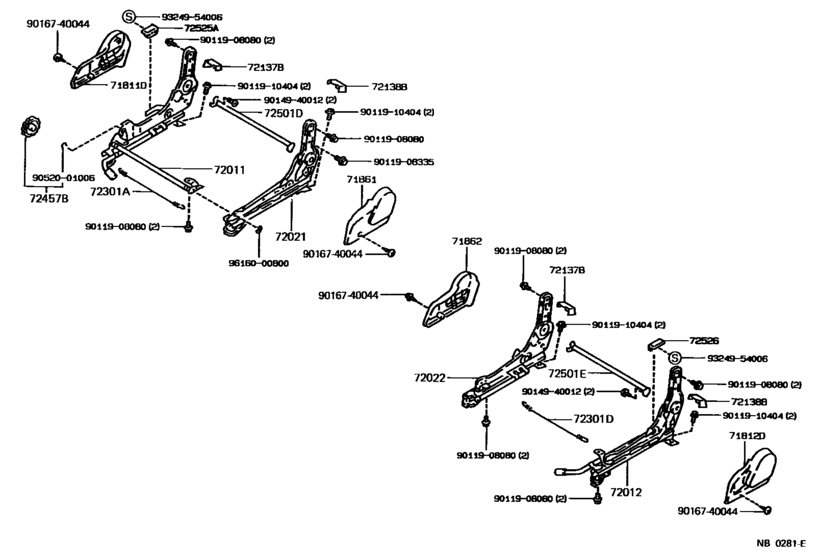

Front Seat & Seat Track ([05.1987 - 08.1989] (8705-8908)GTI) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- General
- Frame
- AE92
- grade
- GTI
- body
- LB
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 08.1989
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71811D
|
71811D
71811-12170-03 Shield, Front Seat Cushion, Rh[05.1987 - 08.1993] AE92..GT,GTI SHADOW GRAY,TRIM1# |
71811-12170-03 |
US $36.25 |
||
|
71812D
|
71812D
71812-12140-03 Shield, Front Seat Cushion, Lh[05.1987 - 08.1993] AE92..GT,GTI SHADOW GRAY,TRIM1# |
71812-12140-03 |
US $42.08 |
||
| replacement | |||||
|
71812D
|
71812D
71812-12140-13
Shield, Front Seat Cushion, Lh
[05.1987 - 08.1993] AE92..GT,GTI SHADOW GRAY,TRIM1# |
71812-12140-13 |
— | ||
|
71861
|
71861
71861-12120-03 Shield, Front Seat Cushion, Inner Rh[05.1987 - 08.1993] AE92..GT,GTI SHADOW GRAY,TRIM1# |
71861-12120-03 |
US $36.25 |
||
|
71862
|
71862
71862-12110-03 Shield, Front Seat Cushion, Inner Lh[05.1987 - 08.1993] AE92..GT,GTI SHADOW GRAY,TRIM1# |
71862-12110-03 |
US $36.25 |
||
|
72011
|
72011
72011-12110 Adjuster Sub-Assy, Front Seat, Outer Rh[05.1987 - 08.1993] AE92..GT,GTI |
72011-12110 |
US $256.26 |
||
|
72012
|
72012
72012-12100 Adjuster Sub-Assy, Front Seat, Outer Lh[05.1987 - 08.1993] AE92..GT,GTI |
72012-12100 |
US $324.69 |
||
|
72021
|
72021
72021-12130 Adjuster Sub-Assy, Front Seat, Inner Rh[05.1987 - 08.1993] AE92..GT,GTI |
72021-12130 |
US $254.80 |
||
|
72022
|
72022
72022-12120 Adjuster Sub-Assy, Front Seat, Inner Lh[05.1987 - 08.1993] AE92..GT,GTI |
72022-12120 |
US $254.80 |
||
|
72137B
|
72137B
72137-12020-03
Cover, Seat Track, Rh
[05.1987 - 08.1993] AE92,CE90,EE9# SHADOW GRAY,TRIM1# |
72137-12020-03 |
— | ||
|
72138B
|
72138B
72138-12030-03
Cover, Seat Track, Lh
[05.1987 - 08.1993] AE92,CE90,EE9# SHADOW GRAY,TRIM1# |
72138-12030-03 |
— | ||
|
72301A
|
72301A
72301-12040 Wire Sub-Assy, Seat Track Equalizing, Rh[05.1987 - 08.1993] AE92,EE97..RHD..XL..GEN;EE90..RHD..(GL,XL)..GEN;AE92..RHD..(GL,GT,GTI,SE) |
72301-12040 |
US $2.62 |
||
|
72301D
|
72301D
72301-12040 Wire Sub-Assy, Seat Track Equalizing, Rh[05.1987 - 08.1993] AE92..GT,GTI;EE97..LHD..XL;AE92,CE90,EE90..LHD..(LB,SED)..(GL,XL) |
72301-12040 |
US $2.62 |
||
|
72457B
|
72457B
72457-12030-03 Knob, Vertical Seat Adjuster, Rh[05.1987 - 08.1993] AE92,EE97..RHD..XL..GEN;EE90..RHD..(GL,XL)..GEN;AE92..RHD..(GL,GT,GTI,SE) SHADOW GRAY,TRIM1# |
72457-12030-03 |
US $16.16 |
||
|
72501D
|
72501D
72501-12050 Pipe Sub-Assy, Reclining Connecting, Rh[05.1987 - 08.1988] AE92..GTI |
72501-12050 |
US $31.74 |
||
|
72501E
|
72501E
72501-12050 Pipe Sub-Assy, Reclining Connecting, Rh[05.1987 - 08.1988] AE92..GTI |
72501-12050 |
US $31.74 |
||
|
72525A
|
72525A
72525-12090-03 Handle, Reclining Adjuster Release[05.1987 - 08.1993] AE9#,CE90,EE9# GRAY,TRIM1# |
72525-12090-03 |
US $12.67 |
||
|
72526
|
72526
72526-12030-03
Handle, Reclining Adjuster Release
[05.1987 - 08.1993] AE9#,CE90,EE9# GRAY,TRIM1# |
72526-12030-03 |
— | ||
|
9011908080
|
9011908080
90119-08080 BOLT |
90119-08080 |
from US $1.61 |
||
|
9011908335
|
9011908335
90119-08335 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08335 |
US $1.75 |
||
| replacement | |||||
|
9011908335
|
9011908335
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.64 |
||
|
9011910404
|
9011910404
90119-10404 New Genuine Part |
90119-10404 |
US $3.58 |
||
|
9014940012
|
9014940012
90149-40012 SCREW |
90149-40012 |
from US $0.76 |
||
|
9016740044
|
9016740044
90167-40044 BOLT |
90167-40044 |
from US $0.92 |
||
|
9052001006
|
9052001006
90520-01006 Ring, Shaft Snap(For Lumber Support Lever) |
90520-01006 |
US $1.43 |
||
|
9324954006
|
9324954006
93249-54006 Screw |
93249-54006 |
US $1.97 |
||
|
9616000800
|
9616000800
96160-00800 Ring, E(For Counter Weight) |
96160-00800 |
from US $0.88 |
||
