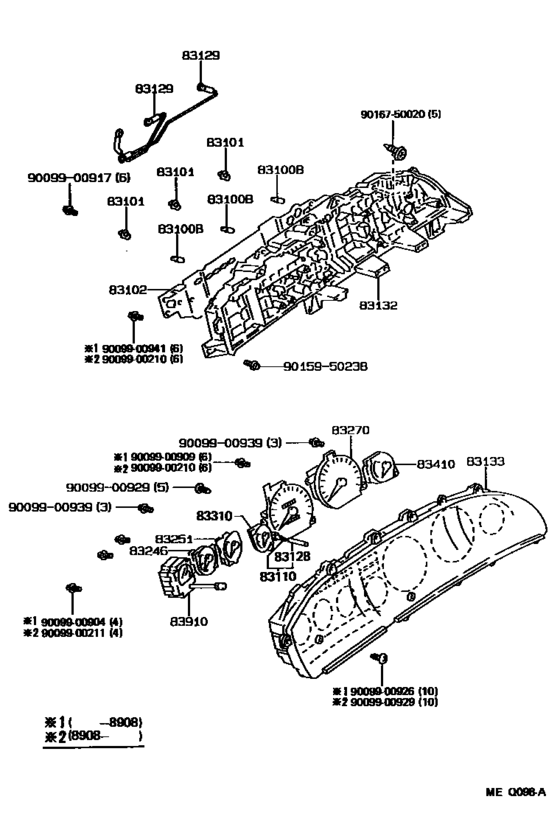

Meter ([05.1987 - ] (8705- )GT,GTI) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- General
- Frame
- AE92
- grade
- GTI
- body
- LB
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 08.1989
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83109-12030 Bulb, Combination Meter, No.1[05.1987 - 08.1993] AE92..GT,GTI 12V 3.4W,BLUE CAP |
83109-12030 |
US $1.92 |
||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[05.1987 - 09.1988] EE90..XL..SA;AE92..3FC..GL;AE92..3FC..SA;AE92..LHD..5F..GL;AE92..RHD..(4FC,5F);AE9 5,EE90..(3FC,5F)..(GL,SR5) 12V 1.2W W/O SOCKET; AE9#,EE9#..XL..GEN 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.09 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[05.1987 - 08.1989] EE90..GL;AE92..3FC..GL;AE92..3FC..SA;AE92..LHD..5F..GL;AE92..RHD..(4FC,5F);AE95,EE 90..(SR5,XL)..(ARL,SA) 12V 3.4W |
99132-12034 |
from US $1.79 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[05.1987 - 08.1989] EE90..GL;AE92..3FC..GL;AE92..3FC..SA;AE92..LHD..5F..GL;AE92..RHD..(4FC,5F);AE95,EE 90..(SR5,XL)..(ARL,SA) 12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[05.1987 - 08.1993] AE92..GT,GTI 12V 3.4W BULB |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[05.1987 - 09.1988] EE90..XL..SA;AE92..3FC..GL;AE92..3FC..SA;AE92..LHD..5F..GL;AE92..RHD..(4FC,5F);AE9 5,EE90..(3FC,5F)..(GL,SR5) 14V 1.4W BULB; AE9#,EE9#..XL..GEN 14V 1.4W BULB |
83101-14040 |
US $2.44 |
||
|
83102
|
83102
83247-1E100
Plate Sub-Assy, Combination Meter Circuit, No.1
[05.1987 - 08.1993] AE92..GTI;AE92..GT..SA |
83247-1E100 |
— | ||
|
83110
|
83110
83110-1E090 Speedometer Assy[05.1987 - 08.1993] AE92..GTI;AE92..GT..SA |
83110-1E090 |
US $298.48 |
||
|
83110
|
83110
83110-1E100 Speedometer Assy[05.1987 - 08.1989] AE92..GTI MILE/KM |
83110-1E100 |
US $299.94 |
||
|
83129
|
83129
83129-12010
Wire, Meter
[05.1987 - 08.1993] AE92..GT,GTI L=225,WHITE |
83129-12010 |
— | ||
|
83129
|
83129
83129-12030
Wire, Meter
[05.1987 - 08.1993] AE92..GT,GTI L=105,BLUE |
83129-12030 |
— | ||
|
83132
|
83132
83132-1A110
Case, Combination Meter
[05.1987 - 08.1993] AE92..GTI;AE92..GT..SA |
83132-1A110 |
— | ||
|
83133
|
83133
83133-1A330
Plate, Combination Meter, No.1
[05.1987 - 08.1993] AE92..GT,GTI |
83133-1A330 |
— | ||
|
83246
|
83246
83246-12170 Gauge, Oil Pressure Receiver[05.1987 - 08.1989] AE92..GTI |
83246-12170 |
US $74.26 |
||
|
83251
|
83251
83251-12070 Meter, Voltage[05.1987 - 08.1989] AE92..GTI |
83251-12070 |
US $113.57 |
||
|
83270
|
83270
83242-1A750 Tachometer Assy, EngineENGINE [05.1987 - 08.1993] AE92..GTI;AE92..GT..SA |
83242-1A750 |
US $509.60 |
||
|
83310
|
83310
83243-1A150 Gage Assy, Fuel Receiver[05.1987 - 08.1993] AE92..GTI;AE92..GT..SA |
83243-1A150 |
US $119.39 |
||
|
83410
|
83410
83244-1A550 Gage Assy, Water Temperature Receiver[05.1987 - 08.1989] AE92..GTI |
83244-1A550 |
US $58.39 |
||
|
83910
|
83910
83910-12440 Clock Assy[05.1987 - 08.1993] AE92..GT,GTI |
83910-12440 |
US $409.14 |
||
|
9009900210
|
9009900210
90099-00210
New Genuine Part
|
90099-00210 |
— | ||
|
9009900211
|
9009900211
90099-00211
New Genuine Part
|
90099-00211 |
— | ||
|
9009900904
|
9009900904
90099-00904
New Genuine Part
|
90099-00904 |
— | ||
|
9009900909
|
9009900909
90099-00909
New Genuine Part
|
90099-00909 |
— | ||
|
9009900917
|
9009900917
90099-00917
New Genuine Part
|
90099-00917 |
— | ||
|
9009900926
|
9009900926
90099-00926
New Genuine Part
|
90099-00926 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9009900939
|
9009900939
90099-00939 New Genuine Part |
90099-00939 |
US $1.89 |
||
|
9009900941
|
9009900941
90099-00941
New Genuine Part
|
90099-00941 |
— | ||
|
9015950238
|
9015950238
90159-50238 SCREW WWASHER |
90159-50238 |
US $2.15 |
||
|
9016750020
|
9016750020
90167-50020 SCREW PAN TAPPING |
90167-50020 |
US $2.15 |
||
