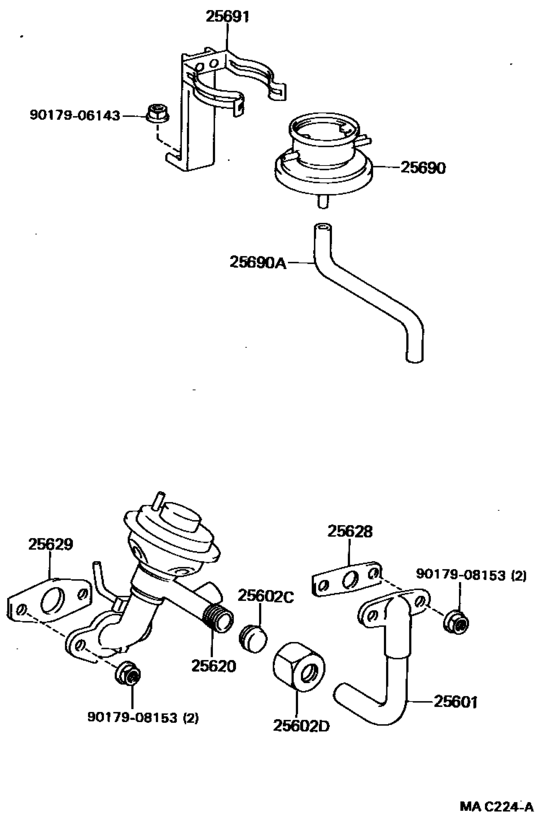

Exhaust Gas Recirculation System ([05.1989 - ] (8905- )4AFE..4FC) Diagram Toyota COROLLA
- Year
- 1989 - 1991
- Sales region
- Japan
- Frame
- AE95
- grade
- SE
- body
- 4D
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 05.1989
- To
- 06.1991
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25601
|
25601
25601-16040 Pipe Sub-Assy, Egr, No.1[05.1989 - 06.1991] 4AFE..AE95..4FC |
25601-16040 |
US $75.71 |
||
|
25602C
|
25602C
90410-12042 Sleeve, Ball, Egr Pipe, No.1[05.1989 - 06.1991] 4AFE..AE95..4FC |
90410-12042 |
from US $11.20 |
||
|
25602D
|
25602D
90402-20073 Nut, Union, Egr Pipe, No.1[05.1989 - 06.1991] 4AFE..AE95..4FC |
90402-20073 |
US $17.78 |
||
|
25620
|
25620
25620-16150 Valve Assy, Egr[05.1989 - 06.1991] 4AFE..AE95..4FC |
25620-16150 |
US $270.82 |
||
|
25628
|
25628
25628-16010
Gasket, Egr Inlet
[05.1989 - 06.1991] 4AFE..AE95..4FC |
25628-16010 |
— | ||
|
25629
|
25629
25627-16030 Gasket, Egr Valve Adapter[05.1989 - 12.1989] 4AFE..AE95..4FC |
25627-16030 |
US $4.95 |
||
| replacement | |||||
|
25629
|
25629
25627-16031 Gasket, Egr Valve Adapter[05.1989 - 12.1989] 4AFE..AE95..4FC |
25627-16031 |
US $4.66 |
||
|
25629
|
25629
25627-16031 Gasket, Egr Valve Adapter[12.1989 - 06.1991] 4AFE..AE95..4FC |
25627-16031 |
US $4.66 |
||
|
25690
|
25690
25870-16180
Modulator Assy, Egr Vacuum
[05.1989 - 06.1991] 4AFE..AE95..4FC |
25870-16180 |
— | ||
|
25690A
|
25690A
25695-16030 Hose(For Egr Vacuum Modulator)[05.1989 - 06.1991] 4AFE..AE95..4FC |
25695-16030 |
US $15.58 |
||
|
25691
|
25691
25691-16150 Bracket, Egr Vacuum Modulator[05.1989 - 06.1991] 4AFE..AE95..4FC |
25691-16150 |
US $8.88 |
||
|
9017906143
|
9017906143
90179-06143 NUT |
90179-06143 |
from US $0.86 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
