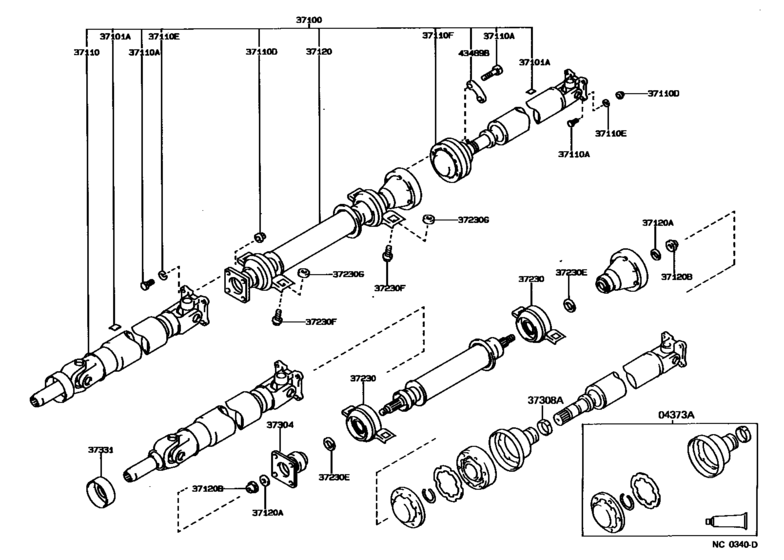

Propeller Shaft & Universal Joint ([10.1987 - ] (8710- )AE95,CE95) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- AE95
- grade
- SE
- body
- 4D
- ENGINE
- 4AF
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 10.1987
- To
- 05.1989
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04373A
|
04373A
04373-12010 Boot Kit, Universal[10.1987 - 06.1991] AE95,CE95 |
04373-12010 |
from US $61.91 |
||
|
37100
|
37100
37100-12460 Shaft Assy, Propeller W/center Bearing[10.1987 - 02.1988] AE95 |
37100-12460 |
US $2,184 |
||
| replacement | |||||
|
37100
|
37100
37100-12520 Shaft Assy, Propeller W/center Bearing[10.1987 - 02.1988] AE95 |
37100-12520 |
US $2,169.44 |
||
|
37100
|
37100
37100-12470 Shaft Assy, Propeller W/center Bearing[02.1988 - 09.1990] AE95,CE95 |
37100-12470 |
US $2,169.44 |
||
| replacement | |||||
|
37100
|
37100
37100-12520 Shaft Assy, Propeller W/center Bearing[02.1988 - 09.1990] AE95,CE95 |
37100-12520 |
US $2,169.44 |
||
|
37101A
|
37101A
90937-01132 Piece, Balance, No.1 (For Propeller Shaft)[10.1987 - 06.1991] AE95,CE95 １０Ｇ，長さ＝２０．７ |
90937-01132 |
US $3.52 |
||
|
37101A
|
37101A
90937-01147 Piece, Balance, No.1 (For Propeller Shaft)[10.1987 - 06.1991] AE95,CE95 ２Ｇ，厚さ＝２．０ |
90937-01147 |
US $2.04 |
||
|
37101A
|
37101A
90937-01148 Piece, Balance, No.1 (For Propeller Shaft)[10.1987 - 06.1991] AE95,CE95 ４Ｇ，厚さ＝２．０ |
90937-01148 |
US $2.24 |
||
|
37101A
|
37101A
90937-01149 Piece, Balance, No.1 (For Propeller Shaft)[10.1987 - 06.1991] AE95,CE95 ６Ｇ，長さ＝１２．４ |
90937-01149 |
US $2.24 |
||
|
37101A
|
37101A
90937-01150 Piece, Balance, No.1 (For Propeller Shaft)[10.1987 - 06.1991] AE95,CE95 ８Ｇ，長さ＝１６．６ |
90937-01150 |
US $2.24 |
||
|
37101A
|
37101A
90937-01151 Piece, Balance, No.1 (For Propeller Shaft)[10.1987 - 06.1991] AE95,CE95 １２Ｇ，長さ＝２４．９ |
90937-01151 |
US $2.40 |
||
|
37101A
|
37101A
90937-01152 Piece, Balance, No.1 (For Propeller Shaft)[10.1987 - 06.1991] AE95,CE95 １４Ｇ，長さ＝２９．０ |
90937-01152 |
US $2.24 |
||
|
37110
|
37110
37110-12530 Shaft Assy, Propeller[10.1987 - 06.1991] AE95,CE95 |
37110-12530 |
US $560.56 |
||
|
37110A
|
37110A
90101-08082 Bolt, No.1 (For Propeller Shaft & Differential Setting)[10.1987 - 05.1989] AE95 ＊８−１．２５ＰＸ２５−１２ |
90101-08082 |
from US $1.09 |
||
|
37110A
|
37110A
90110-08016 Bolt (For Propeller Shaft)[10.1987 - 06.1991] AE95,CE95 ＊８−１．２５ＰＸ４７−２２ |
90110-08016 |
US $2.62 |
||
| replacement | |||||
|
37110A
|
37110A
90110-08036 Bolt (For Rear Propeller Shaft)[10.1987 - 06.1991] AE95,CE95 ＊８−１．２５ＰＸ４７−２２ |
90110-08036 |
from US $1.40 |
||
|
37110D
|
37110D
90170-08015 Nut, No.1 (For Propeller Shaft & Differential Setting)[10.1987 - 06.1991] AE95,CE95 |
90170-08015 |
from US $1.92 |
||
|
37110E
|
37110E
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)[10.1987 - 06.1991] AE95,CE95 |
94512-00800 |
from US $0.80 |
||
|
37110F
|
37110F
37110-12570 Shaft Assy, Propeller, Rear[10.1987 - 02.1988] AE95 |
37110-12570 |
US $559.10 |
||
| replacement | |||||
|
37110F
|
37110F
37110-12580 Shaft Assy, Propeller, Rear[10.1987 - 02.1988] AE95 |
37110-12580 |
US $557.65 |
||
|
37110F
|
37110F
37110-12580 Shaft Assy, Propeller, Rear[02.1988 - 06.1991] AE95,CE95 |
37110-12580 |
US $557.65 |
||
|
37120
|
37120
37120-12230 Shaft Assy, Propeller Intermediate[10.1987 - 09.1990] AE95,CE95 |
37120-12230 |
US $723.63 |
||
| replacement | |||||
|
37120
|
37120
37120-12250 Shaft Assy, Propeller Intermediate[10.1987 - 09.1990] AE95,CE95 |
37120-12250 |
US $711.98 |
||
|
37120A
|
37120A
90201-18182 Washer, Plate (For Propeller Intermediate Shaft Set)[10.1987 - 06.1991] AE95,CE95 外径＝３３．５，厚さ＝４．０ |
90201-18182 |
from US $2.88 |
||
|
37120B
|
37120B
90179-18009 Nut (For Propeller Intermediate Shaft Setting)[10.1987 - 06.1991] AE95,CE95 |
90179-18009 |
from US $1.72 |
||
|
37230
|
37230
37230-12081 Bearing Assy, Center Support, No.1[10.1987 - 09.1990] AE95,CE95 フロント |
37230-12081 |
US $125.22 |
||
| replacement | |||||
|
37230
|
37230
37230-12141 Bearing Assy, Center Support, No.1[10.1987 - 09.1990] AE95,CE95 フロント |
37230-12141 |
US $158.70 |
||
|
37230
|
37230
37230-12091 Bearing Assy, Center Support, No.1[10.1987 - 09.1990] AE95,CE95 リヤ |
37230-12091 |
US $160.16 |
||
| replacement | |||||
|
37230
|
37230
37230-12151
Bearing Assy, Center Support, No.1
[10.1987 - 09.1990] AE95,CE95 リヤ |
37230-12151 |
— | ||
|
37230E
|
37230E
90201-25005 Washer, Plate (For Propeller Intermediate Shaft Set)[10.1987 - 06.1991] AE95,CE95 |
90201-25005 |
US $0.70 |
||
|
37230F
|
37230F
90119-10046 Bolt, No.1 (For Center Support Bearing)[10.1987 - 06.1991] AE95,CE95 |
90119-10046 |
US $1.92 |
||
|
37230G
|
37230G
90201-10008 Washer, No.2 (For Center Support Bearing)[10.1987 - 06.1991] AE95,CE95 厚さ＝４．５ |
90201-10008 |
US $1.76 |
||
|
37230G
|
37230G
90201-10017 Washer, No.2 (For Center Support Bearing)[10.1987 - 06.1991] AE95,CE95 厚さ＝９．０ |
90201-10017 |
US $2.62 |
||
|
37230G
|
37230G
90201-10033 Washer, No.2 (For Center Support Bearing)[10.1987 - 06.1991] AE95,CE95 厚さ＝６．５ |
90201-10033 |
US $2.61 |
||
|
37230G
|
37230G
90201-10034 Washer, No.2 (For Center Support Bearing)[10.1987 - 06.1991] AE95,CE95 厚さ＝１１．０ |
90201-10034 |
US $3.52 |
||
|
37304
|
37304
37304-12010 Flange Sub-Assy, Universal Joint[10.1987 - 06.1991] AE95,CE95 |
37304-12010 |
US $33.34 |
||
|
37308A
|
37308A
90949-01431 Clamp (For Universal Joint Cover)[10.1987 - 06.1991] AE95,CE95 |
90949-01431 |
US $3.20 |
||
|
37331
|
37331
37331-30010 Cover, Sliding Shaft Dust[10.1987 - 06.1991] AE95,CE95 |
37331-30010 |
US $10.48 |
||
|
43489B
|
43489B
43489-12010 Washer (For Propeller Shaft)[10.1987 - 06.1991] AE95,CE95 |
43489-12010 |
US $8.15 |
||
| replacement | |||||
|
43489B
|
43489B
43489-20030 Washer, Constant Velocity Universal Joint[10.1987 - 06.1991] AE95,CE95 |
43489-20030 |
US $7.72 |
||
