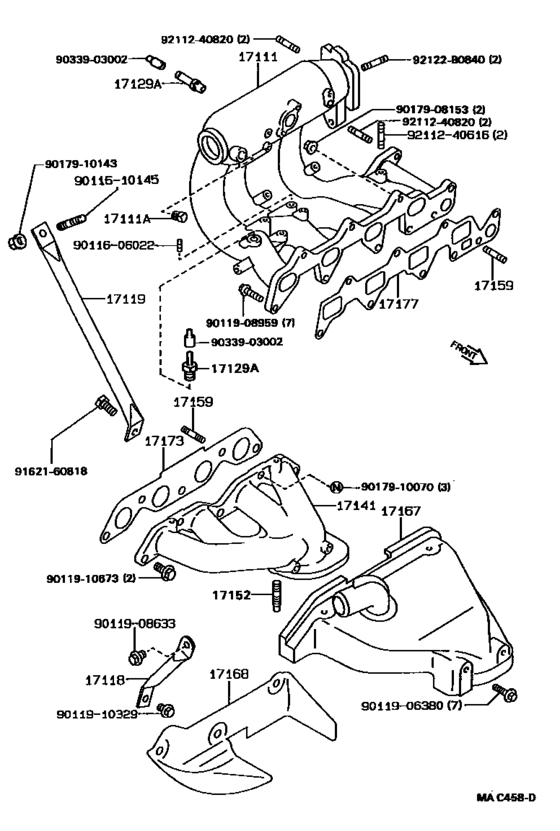

Manifold ([10.1987 - ] (8710- )4AFE..AE95) Diagram Toyota COROLLA
- Year
- 1987 - 1990
- Sales region
- Europe
- Frame
- AE95
- grade
- XLI
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 10.1987
- To
- 08.1990
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17101-16110 Manifold, IntakeINTAKE [10.1987 - 02.1988] 4AFE..AE95 |
17101-16110 |
US $554.74 |
||
| replacement | |||||
|
17111
|
17111
17101-16160 Manifold, Intake[10.1987 - 02.1988] 4AFE..AE95 |
17101-16160 |
US $567.84 |
||
|
17111
|
17111
17101-16160 Manifold, Intake[02.1988 - 08.1990] 4AFE..AE95 |
17101-16160 |
US $567.84 |
||
|
17111A
|
17111A
90345-51006 Plug, W/head Taper Screw, No.2[10.1987 - 08.1990] 4AFE..AE9#; 2EE..EE90 |
90345-51006 |
US $0.96 |
||
|
17118
|
17118
17118-16050 Stay, Manifold[05.1987 - 08.1990] 4AF#..AE9# |
17118-16050 |
US $17.76 |
||
|
17119
|
17119
17139-16050 Stay, Manifold, No.2[10.1987 - 09.1990] 4AFE..AE95 |
17139-16050 |
US $34.51 |
||
|
17129A
|
17129A
90404-51010 Union, Vacuum Hose[10.1987 - 08.1990] 4AFE..AE95 |
90404-51010 |
US $3.32 |
||
|
17141
|
17141
17141-16200
Manifold, Exhaust
[05.1987 - 08.1989] 4AF#..AE9# |
17141-16200 |
— | ||
|
17152
|
17152
90116-10058 Bolt, Stud(For Manifold Extension)[05.1987 - 05.1988] 4AF#..AE9# |
90116-10058 |
from US $2.44 |
||
|
17152
|
17152
90116-10146 Bolt, Stud(For Manifold To Exhaust Pipe)[05.1988 - 04.1989] 4AF#..AE9# |
90116-10146 |
from US $1.91 |
||
|
17159
|
17159
92112-60825 Bolt, Stud(For Oil Filter)[05.1987 - 08.1990] 4AF#..AE9# INTAKE MANIFOLD |
92112-60825 |
US $2.56 |
||
|
17159
|
17159
92112-61028 Bolt, Stud(For Manifold To Cylinder Head)[07.1989 - 08.1990] 4AF#..AE9# EXHAUST MANIFOLD |
92112-61028 |
US $3.84 |
||
|
17159
|
17159
92112-61032 Bolt, Stud(For Manifold To Cylinder Head)[05.1987 - 07.1989] 4AF#..AE9# EXHAUST MANIFOLD |
92112-61032 |
US $3.06 |
||
|
17167
|
17167
17167-16090 Insulator, Exhaust Manifold Heat, No.1EXHAUST MANIFOLD HEAT, NO.1 [10.1987 - 08.1990] 4AFE..AE9# |
17167-16090 |
US $67.70 |
||
| replacement | |||||
|
17167
|
17167
17167-16150
Insulator, Exhaust Manifold Heat, No.1
[10.1987 - 08.1990] 4AFE..AE9# |
17167-16150 |
— | ||
|
17168
|
17168
17168-16050
Insulator, Exhaust Manifold Heat, No.2
[05.1987 - 08.1989] 4AF#..AE9# |
17168-16050 |
— | ||
| replacement | |||||
|
17168
|
17168
17168-16100
Insulator, Exhaust Manifold Heat, No.2
[05.1987 - 08.1989] 4AF#..AE9# |
17168-16100 |
— | ||
|
17173
|
17173
17173-15010 Gasket, Exhaust Manifold To Head[05.1987 - 12.1989] 4AF#..AE9# |
17173-15010 |
US $28.25 |
||
| replacement | |||||
|
17173
|
17173
17173-15011 Gasket, Exhaust Manifold To Head[05.1987 - 12.1989] 4AF#..AE9# |
17173-15011 |
US $29.53 |
||
|
17173
|
17173
17173-15011 Gasket, Exhaust Manifold To Head[12.1989 - 08.1990] 4AF#..AE9# |
17173-15011 |
US $29.53 |
||
|
17177
|
17177
17171-15020
Gasket, Intake Manifold To Head, No.1
[10.1987 - 12.1989] 4AFE..AE9# |
17171-15020 |
— | ||
| replacement | |||||
|
17177
|
17177
17171-15021
Gasket, Intake Manifold To Head, No.1
[10.1987 - 12.1989] 4AFE..AE9# |
17171-15021 |
— | ||
|
17177
|
17177
17171-15021
Gasket, Intake Manifold To Head, No.1
[12.1989 - 08.1990] 4AFE..AE9# |
17171-15021 |
— | ||
|
92122B0840
|
92122B0840
92122-B0840 New Genuine Part |
92122-B0840 |
US $1.02 |
||
|
9011606022
|
9011606022
90116-06022 Bolt, Stud(For Valve Push Rod Cover) |
90116-06022 |
from US $1.95 |
||
|
9011610145
|
9011610145
90116-10145 New Genuine Part |
90116-10145 |
US $2.18 |
||
|
9011906380
|
9011906380
90119-06380
New Genuine Part
|
90119-06380 |
— | ||
| replacement | |||||
|
9011906380
|
9011906380
90119-06817 BOLT WWASHER |
90119-06817 |
US $1.12 |
||
|
9011908633
|
9011908633
90119-08633 New Genuine Part |
90119-08633 |
from US $1.60 |
||
|
9011908959
|
9011908959
90119-08959 New Genuine Part |
90119-08959 |
US $1.22 |
||
|
9011910329
|
9011910329
90119-10329 New Genuine Part |
90119-10329 |
US $1.60 |
||
|
9011910673
|
9011910673
90119-10673
New Genuine Part
|
90119-10673 |
— | ||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9017910070
|
9017910070
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
9017910070
|
9017910070
90080-17187 Nut, Exhaust Pipe Set Stud Bolt |
90080-17187 |
US $33.80 |
||
|
9017910143
|
9017910143
90179-10143 Nut(For Front Suspension Support) |
90179-10143 |
US $3.20 |
||
|
9033903002
|
9033903002
90339-03002 PLUG |
90339-03002 |
US $2.88 |
||
|
9162160818
|
9162160818
91621-60818
Bolt(For Automatic Transmission Case Protector)
|
91621-60818 |
— | ||
| replacement | |||||
|
9162160818
|
9162160818
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.07 |
||
|
9211240616
|
9211240616
92112-40616
Bolt, Stud(For Cold Start Injector)
|
92112-40616 |
— | ||
|
9211240820
|
9211240820
92112-40820 Bolt, Stud(For Manifold To Venturi) |
92112-40820 |
US $1.05 |
||
