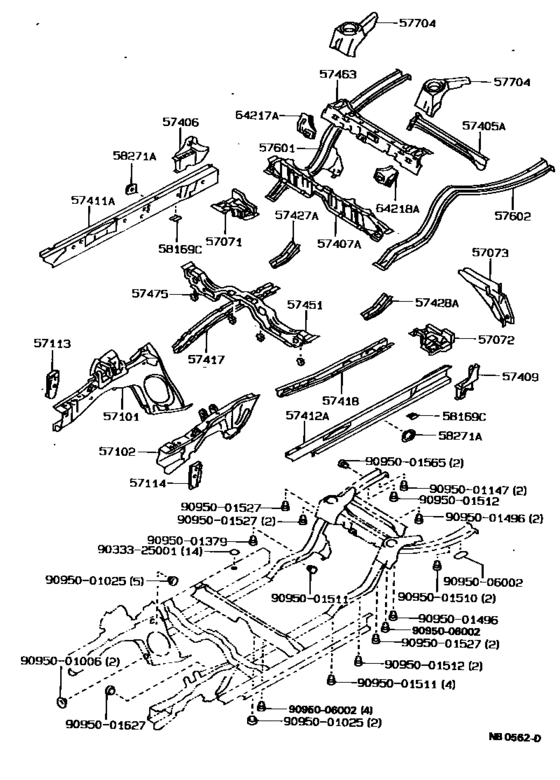

Floor Side Member ([10.1987 - ] (8710- )AE95..SED) Diagram Toyota COROLLA
- Year
- 1987 - 1990
- Sales region
- Europe
- Frame
- AE95
- grade
- XL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 10.1987
- To
- 08.1990
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57071
|
57071
57071-12030 Box Sub-Assy, Torque, Rear Rh[08.1989 - 09.1990] AE95 |
57071-12030 |
US $110.66 |
||
|
57072
|
57072
57072-12030 Box Sub-Assy, Torque, Rear Lh[08.1989 - 09.1990] AE95 |
57072-12030 |
US $110.66 |
||
|
57073
|
57073
57073-12040 Bracket Sub-Assy, Lateral Rod[10.1987 - 11.1987] AE95 |
57073-12040 |
US $192.19 |
||
| replacement | |||||
|
57073
|
57073
57073-12041 Bracket Sub-Assy, Lateral Rod[10.1987 - 11.1987] AE95 |
57073-12041 |
US $187.82 |
||
|
57073
|
57073
57073-12041 Bracket Sub-Assy, Lateral Rod[11.1987 - 09.1990] AE95 |
57073-12041 |
US $187.82 |
||
|
57101
|
57101
57101-12340 Member Sub-Assy, Front Side, Rh[05.1987 - 05.1988] AE9# |
57101-12340 |
US $446.99 |
||
| replacements | |||||
|
57101
|
57101
57101-12380 Member Sub-Assy, Front Side, Rh[05.1987 - 05.1988] AE9# |
57101-12380 |
US $438.26 |
||
|
57101
|
57101
17883-16031 Hose, Air Cleaner, No.3[05.1987 - 05.1988] AE9# |
17883-16031 |
US $60.72 |
||
|
57101
|
57101
48971-12011 Bracket, Height Control Pump, No.1[05.1987 - 05.1988] AE9# |
48971-12011 |
US $27.08 |
||
|
57101
|
57101
57101-12380 Member Sub-Assy, Front Side, Rh[05.1988 - 05.1992] AE9# |
57101-12380 |
US $438.26 |
||
|
57102
|
57102
57102-12360 Member Sub-Assy, Front Side, Lh[05.1988 - 05.1992] AE9#,EE90 |
57102-12360 |
US $438.26 |
||
|
57102
|
57102
57102-12370 Member Sub-Assy, Front Side, Lh[05.1987 - 05.1988] AE9#,EE90 |
57102-12370 |
US $446.99 |
||
| replacements | |||||
|
57102
|
57102
57102-12360 Member Sub-Assy, Front Side, Lh[05.1987 - 05.1988] AE9#,EE90 |
57102-12360 |
US $438.26 |
||
|
57102
|
57102
17883-16041 Hose, Air Cleaner, No.3[05.1987 - 05.1988] AE9#,EE90 |
17883-16041 |
US $66.54 |
||
|
57113
|
57113
57113-12110 Extension, Front Side Member, Rh[05.1987 - 05.1992] AE9#,CE90,EE90 |
57113-12110 |
US $4.95 |
||
|
57114
|
57114
57114-12110 Extension, Front Side Member, Lh[05.1987 - 05.1992] AE9#,CE90,EE90 |
57114-12110 |
US $4.95 |
||
|
57405A
|
57405A
57405-12050 Member Sub-Assy, Center Floor Cross, No.2[10.1987 - 09.1990] AE95 |
57405-12050 |
US $136.86 |
||
|
57406
|
57406
57406-12020 Member Sub-Assy, Main Floor Side, Rh[10.1987 - 09.1990] AE95 |
57406-12020 |
US $19.66 |
||
|
57407A
|
57407A
57407-12030 Member Sub-Assy, Center Floor Cross[10.1987 - 09.1990] AE95 |
57407-12030 |
US $87.36 |
||
|
57409
|
57409
57409-12020 Member Sub-Assy, Main Floor Side, Lh[10.1987 - 09.1990] AE95 |
57409-12020 |
US $19.66 |
||
|
57411A
|
57411A
57411-12160 Member, Floor Side, Inner RhFLOOR SIDE, INNER RH [05.1987 - 05.1992] AE9#,CE90,EE90 |
57411-12160 |
US $85.90 |
||
|
57412A
|
57412A
57412-12160 Member, Floor Side, Inner LhFLOOR SIDE, INNER LH [05.1987 - 05.1992] AE9#,CE90,EE90 |
57412-12160 |
US $85.90 |
||
|
57417
|
57417
57417-12090 Reinforcement, Front Floor Under, Rh[10.1987 - 02.1988] AE95..CBR |
57417-12090 |
US $62.32 |
||
|
57418
|
57418
57418-12050 Reinforcement, Front Floor Under, Lh[10.1987 - 02.1988] AE95..CBR |
57418-12050 |
US $62.32 |
||
|
57427A
|
57427A
57427-12010 Reinforcement, Front Floor, No.3 Rh[10.1987 - 02.1988] AE95..CBR |
57427-12010 |
US $24.90 |
||
|
57428A
|
57428A
57428-12030 Reinforcement, Front Floor, No.3 Lh[10.1987 - 02.1988] AE95..CBR |
57428-12030 |
US $24.90 |
||
|
57451
|
57451
57451-12120 Member, Front Floor Cross[10.1987 - 02.1988] AE95..CBR |
57451-12120 |
US $116.48 |
||
| replacement | |||||
|
57451
|
57451
57451-12121 Member, Front Floor Cross[10.1987 - 02.1988] AE95..CBR |
57451-12121 |
US $113.57 |
||
|
57463
|
57463
57463-12050 Member, Center Floor Cross, No.3[10.1987 - 09.1990] AE95 |
57463-12050 |
US $88.82 |
||
|
57475
|
57475
57475-32010 Plate, Front Floor Crossmember[02.1988 - 09.1990] AE95 |
57475-32010 |
US $2.04 |
||
|
57601
|
57601
57601-12650 Member Sub-Assy, Rear Floor Side, Rh[10.1987 - 08.1990] AE95..SED |
57601-12650 |
US $336.34 |
||
|
57602
|
57602
57602-12540 Member Sub-Assy, Rear Floor Side, Lh[10.1987 - 08.1990] AE95..SED |
57602-12540 |
US $430.98 |
||
|
57704
|
57704
57701-12060 Support Sub-Assy, Rear Suspension Spring[10.1987 - 09.1990] AE95 RH |
57701-12060 |
US $110.66 |
||
|
57704
|
57704
57704-12070 Support Sub-Assy, Rear Suspension Spring[10.1987 - 09.1990] AE95 LH |
57704-12070 |
US $110.66 |
||
|
58169C
|
58169C
58169-12010 Patch, Front Floor Rear[10.1987 - 09.1988] AE95 |
58169-12010 |
US $2.18 |
||
|
58271A
|
58271A
58271-12050 Reinforcement, Belt Anchor To Floor Pan, No.3[05.1987 - 05.1992] AE9#,CE90,EE90 |
58271-12050 |
US $19.80 |
||
|
64217A
|
64217A
64217-12030 Extension, Centor Floor To Package Tray, Rh[10.1987 - 08.1990] AE95..SED |
64217-12030 |
US $25.19 |
||
|
64218A
|
64218A
64218-12030 Extension, Centor Floor To Package Tray, Lh[10.1987 - 08.1990] AE95..SED |
64218-12030 |
US $25.19 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.41 |
||
|
9095001006
|
9095001006
90950-01006 Plug, Hole(For Front Fender) |
90950-01006 |
from US $2.16 |
||
|
9095001025
|
9095001025
90950-01025 Plug, Hole(For Front Fender Apron) |
90950-01025 |
US $3.84 |
||
|
9095001147
|
9095001147
90950-01147
Plug, Hole(For Luggage Compartment Door Panel)
|
90950-01147 |
— | ||
| replacement | |||||
|
9095001147
|
9095001147
90950-01864 Plug, Hole(For Luggage Compartment Door Panel) |
90950-01864 |
US $1.60 |
||
|
9095001379
|
9095001379
90950-01379 New Genuine Part |
90950-01379 |
US $4 |
||
|
9095001496
|
9095001496
90950-01496 New Genuine Part |
90950-01496 |
US $2.62 |
||
|
9095001510
|
9095001510
90950-01510 New Genuine Part |
90950-01510 |
US $0.87 |
||
|
9095001511
|
9095001511
90950-01511 New Genuine Part |
90950-01511 |
US $3.04 |
||
|
9095001512
|
9095001512
90950-01512 New Genuine Part |
90950-01512 |
US $1.92 |
||
|
9095001527
|
9095001527
90950-01527 PLUG |
90950-01527 |
US $1.76 |
||
|
9095001565
|
9095001565
90950-01565 New Genuine Part |
90950-01565 |
US $1.75 |
||
|
9095001627
|
9095001627
90950-01627
New Genuine Part
|
90950-01627 |
— | ||
|
9095006002
|
9095006002
90950-06002 Cover, Front Floor Hole |
90950-06002 |
US $0.96 |
||
