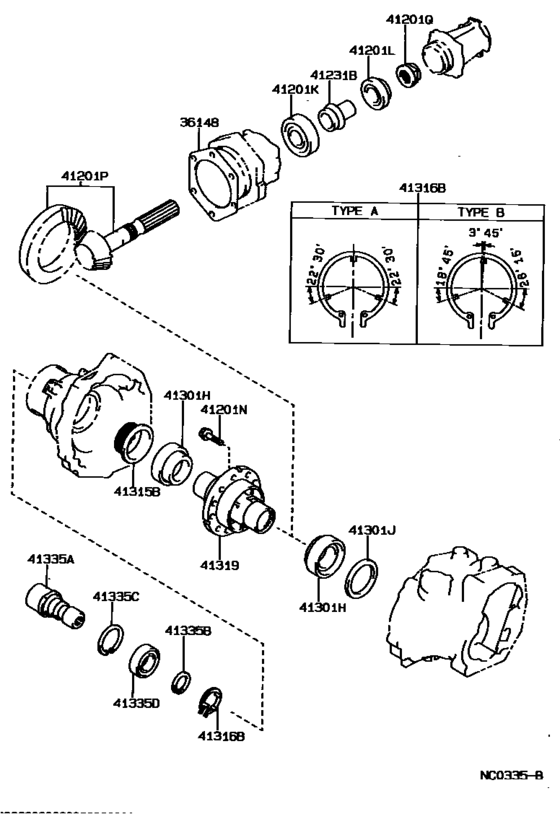

Transfer Gear ([10.1987 - ] E55F5,E57F5 (8710- )AE95) Diagram Toyota COROLLA
- Year
- 1987 - 1990
- Sales region
- Europe
- Frame
- AE95
- grade
- XL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 10.1987
- To
- 08.1990
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
36148
|
36148
36148-20010 Shim, Pinion Bearing Cage[10.1987 - 08.1989] AE95 T=0.30,MARK A |
36148-20010 |
US $5.82 |
||
| replacement | |||||
|
36148
|
36148
36148-32010 Shim, Pinion Bearing Cage[10.1987 - 08.1989] AE95 T=0.30,MARK A |
36148-32010 |
US $3.20 |
||
|
36148
|
36148
36148-20020 Shim, Pinion Bearing Cage[10.1987 - 08.1989] AE95 T=0.33,MARK B |
36148-20020 |
US $6.70 |
||
| replacement | |||||
|
36148
|
36148
36148-32020 Shim, Pinion Bearing Cage[10.1987 - 08.1989] AE95 T=0.33,MARK B |
36148-32020 |
US $3.86 |
||
|
36148
|
36148
36148-20030 Shim, Pinion Bearing Cage[10.1987 - 08.1989] AE95 T=0.36,MARK C |
36148-20030 |
US $6.70 |
||
| replacement | |||||
|
36148
|
36148
36148-32030
Shim, Pinion Bearing Cage
[10.1987 - 08.1989] AE95 T=0.36,MARK C |
36148-32030 |
— | ||
|
36148
|
36148
36148-20040 Shim, Pinion Bearing Cage[10.1987 - 08.1989] AE95 T=0.39,MARK D |
36148-20040 |
US $6.70 |
||
| replacement | |||||
|
36148
|
36148
36148-32040 Shim, Pinion Bearing Cage[10.1987 - 08.1989] AE95 T=0.39,MARK D |
36148-32040 |
US $4.08 |
||
|
36148
|
36148
36148-20050 Shim, Pinion Bearing Cage[10.1987 - 08.1989] AE95 T=0.42,MARK E |
36148-20050 |
US $6.70 |
||
| replacement | |||||
|
36148
|
36148
36148-32050 Shim, Pinion Bearing Cage[10.1987 - 08.1989] AE95 T=0.42,MARK E |
36148-32050 |
US $3.86 |
||
|
36148
|
36148
36148-20060 Shim, Pinion Bearing Cage[10.1987 - 08.1989] AE95 T=0.45,MARK F |
36148-20060 |
US $6.70 |
||
| replacement | |||||
|
36148
|
36148
36148-32060
Shim, Pinion Bearing Cage
[10.1987 - 08.1989] AE95 T=0.45,MARK F |
36148-32060 |
— | ||
|
36148
|
36148
36148-20070 Shim, Pinion Bearing Cage[10.1987 - 08.1989] AE95 T=0.48,MARK G |
36148-20070 |
US $6.70 |
||
| replacement | |||||
|
36148
|
36148
36148-32070 Shim, Pinion Bearing Cage[10.1987 - 08.1989] AE95 T=0.48,MARK G |
36148-32070 |
US $4.08 |
||
|
36148
|
36148
36148-20080 Shim, Pinion Bearing Cage[10.1987 - 08.1989] AE95 T=0.51,MARK H |
36148-20080 |
US $6.70 |
||
| replacement | |||||
|
36148
|
36148
36148-32080 Shim, Pinion Bearing Cage[10.1987 - 08.1989] AE95 T=0.51,MARK H |
36148-32080 |
US $3.86 |
||
|
36148
|
36148
36148-20090 Shim, Pinion Bearing Cage[10.1987 - 08.1989] AE95 T=0.54,MARK J |
36148-20090 |
US $6.70 |
||
| replacement | |||||
|
36148
|
36148
36148-32090
Shim, Pinion Bearing Cage
[10.1987 - 08.1989] AE95 T=0.54,MARK J |
36148-32090 |
— | ||
|
36148
|
36148
36148-20100 Shim, Pinion Bearing Cage[10.1987 - 08.1989] AE95 T=0.57,MARK K |
36148-20100 |
US $6.70 |
||
| replacement | |||||
|
36148
|
36148
36148-32100 Shim, Pinion Bearing Cage[10.1987 - 08.1989] AE95 T=0.57,MARK K |
36148-32100 |
US $3.86 |
||
|
36148
|
36148
36148-32010 Shim, Pinion Bearing Cage[08.1989 - 08.1990] AE95 T=0.30,MARK A |
36148-32010 |
US $3.20 |
||
|
36148
|
36148
36148-32020 Shim, Pinion Bearing Cage[08.1989 - 08.1990] AE95 T=0.33,MARK B |
36148-32020 |
US $3.86 |
||
|
36148
|
36148
36148-32030
Shim, Pinion Bearing Cage
[08.1989 - 08.1990] AE95 T=0.36,MARK C |
36148-32030 |
— | ||
|
36148
|
36148
36148-32040 Shim, Pinion Bearing Cage[08.1989 - 08.1990] AE95 T=0.39,MARK D |
36148-32040 |
US $4.08 |
||
|
36148
|
36148
36148-32050 Shim, Pinion Bearing Cage[08.1989 - 08.1990] AE95 T=0.42,MARK E |
36148-32050 |
US $3.86 |
||
|
36148
|
36148
36148-32060
Shim, Pinion Bearing Cage
[08.1989 - 08.1990] AE95 T=0.45,MARK F |
36148-32060 |
— | ||
|
36148
|
36148
36148-32070 Shim, Pinion Bearing Cage[08.1989 - 08.1990] AE95 T=0.48,MARK G |
36148-32070 |
US $4.08 |
||
|
36148
|
36148
36148-32080 Shim, Pinion Bearing Cage[08.1989 - 08.1990] AE95 T=0.51,MARK H |
36148-32080 |
US $3.86 |
||
|
36148
|
36148
36148-32090
Shim, Pinion Bearing Cage
[08.1989 - 08.1990] AE95 T=0.54,MARK J |
36148-32090 |
— | ||
|
36148
|
36148
36148-32100 Shim, Pinion Bearing Cage[08.1989 - 08.1990] AE95 T=0.57,MARK K |
36148-32100 |
US $3.86 |
||
|
41201K
|
41201K
90366-40044 Bearing (For Transfer Driven Pinion Front)[10.1987 - 08.1989] AE95 |
90366-40044 |
US $39.75 |
||
| replacement | |||||
|
41201K
|
41201K
90366-40055
Bearing (For Transfer Driven Pinion Front)
[10.1987 - 08.1989] AE95 |
90366-40055 |
— | ||
|
41201K
|
41201K
90366-40055
Bearing (For Transfer Driven Pinion Front)
[08.1989 - 08.1990] AE95 |
90366-40055 |
— | ||
|
41201L
|
41201L
90366-32019
Bearing (For Transfer Driven Pinion Rear)
[10.1987 - 08.1990] AE95 |
90366-32019 |
— | ||
|
41201N
|
41201N
90105-11026
Bolt (For Transfer Gear )
[10.1987 - 08.1990] AE95 |
90105-11026 |
— | ||
|
41201P
|
41201P
41201-12160 Gear Kit, Transfer[10.1987 - 08.1990] AE95 |
41201-12160 |
US $640.64 |
||
|
41201Q
|
41201Q
90179-30004
Nut (For Transfer Gear)
[10.1987 - 08.1990] AE95 |
90179-30004 |
— | ||
|
41231B
|
41231B
41231-12040
Spacer, Transfer Pinion Bearing
[10.1987 - 08.1990] AE95 |
41231-12040 |
— | ||
|
41301H
|
41301H
90366-54008
Bearing(For Ring Gear Mounting Case)
[10.1987 - 08.1990] AE95 RH |
90366-54008 |
— | ||
|
41301H
|
41301H
90366-55017
Bearing(For Ring Gear Mounting Case)
[10.1987 - 08.1990] AE95 LH |
90366-55017 |
— | ||
|
41301J
|
41301J
90201-68025
Washer, Plate(For Ring Gear Mounting Case)
[10.1987 - 08.1990] AE95 T=2.13,MARK 01 |
90201-68025 |
— | ||
|
41301J
|
41301J
90201-68026 Washer, Plate(For Ring Gear Mounting Case)[10.1987 - 08.1990] AE95 T=2.16,MARK 02 |
90201-68026 |
US $5.53 |
||
|
41301J
|
41301J
90201-68027 Washer, Plate(For Ring Gear Mounting Case)[10.1987 - 08.1990] AE95 T=2.19,MARK 03 |
90201-68027 |
US $5.53 |
||
|
41301J
|
41301J
90201-68028 Washer, Plate(For Ring Gear Mounting Case)[10.1987 - 08.1990] AE95 T=2.22,MARK 04 |
90201-68028 |
US $5.53 |
||
|
41301J
|
41301J
90201-68029 Washer, Plate(For Ring Gear Mounting Case)[10.1987 - 08.1990] AE95 T=2.25,MARK 05 |
90201-68029 |
US $5.53 |
||
|
41301J
|
41301J
90201-68030 Washer, Plate(For Ring Gear Mounting Case)[10.1987 - 08.1990] AE95 T=2.28,MARK 06 |
90201-68030 |
US $5.53 |
||
|
41301J
|
41301J
90201-68031 Washer, Plate(For Ring Gear Mounting Case)[10.1987 - 08.1990] AE95 T=2.31,MARK 07 |
90201-68031 |
US $5.53 |
||
|
41301J
|
41301J
90201-68032 Washer, Plate(For Ring Gear Mounting Case)[10.1987 - 08.1990] AE95 T=2.34,MARK 08 |
90201-68032 |
US $5.53 |
||
|
41301J
|
41301J
90201-68033 Washer, Plate(For Ring Gear Mounting Case)[10.1987 - 08.1990] AE95 T=2.37,MARK 09 |
90201-68033 |
US $5.53 |
||
|
41301J
|
41301J
90201-68034 Washer, Plate(For Ring Gear Mounting Case)[10.1987 - 08.1990] AE95 T=2.40,MARK 10 |
90201-68034 |
US $5.53 |
||
|
41301J
|
41301J
90201-68035 Washer, Plate(For Ring Gear Mounting Case)[10.1987 - 08.1990] AE95 T=2.43,MARK 11 |
90201-68035 |
US $5.53 |
||
|
41301J
|
41301J
90201-68036 Washer, Plate(For Ring Gear Mounting Case)[10.1987 - 08.1990] AE95 T=2.46,MARK 12 |
90201-68036 |
US $3.20 |
||
|
41301J
|
41301J
90201-68037 Washer, Plate(For Ring Gear Mounting Case)[10.1987 - 08.1990] AE95 T=2.49,MARK 13 |
90201-68037 |
US $5.53 |
||
|
41301J
|
41301J
90201-68038 Washer, Plate(For Ring Gear Mounting Case)[10.1987 - 08.1990] AE95 T=2.52,MARK 14 |
90201-68038 |
US $6.99 |
||
|
41301J
|
41301J
90201-68039 Washer, Plate(For Ring Gear Mounting Case)[10.1987 - 08.1990] AE95 T=2.55,MARK 15 |
90201-68039 |
US $6.99 |
||
|
41301J
|
41301J
90201-68040 Washer, Plate(For Ring Gear Mounting Case)[10.1987 - 08.1990] AE95 T=2.58,MARK 16 |
90201-68040 |
US $6.99 |
||
|
41301J
|
41301J
90201-68041 Washer, Plate(For Ring Gear Mounting Case)[10.1987 - 08.1990] AE95 T=2.61,MARK 17 |
90201-68041 |
US $6.99 |
||
|
41301J
|
41301J
90201-68042 Washer, Plate(For Ring Gear Mounting Case)[10.1987 - 08.1990] AE95 T=2.64,MARK 18 |
90201-68042 |
US $6.99 |
||
|
41301J
|
41301J
90201-68043 Washer, Plate(For Ring Gear Mounting Case)[10.1987 - 08.1990] AE95 T=2.67,MARK 19 |
90201-68043 |
US $6.99 |
||
|
41301J
|
41301J
90201-68044 Washer, Plate(For Ring Gear Mounting Case)[10.1987 - 08.1990] AE95 T=2.70,MARK 20 |
90201-68044 |
US $6.99 |
||
|
41301J
|
41301J
90201-68045 Washer, Plate(For Ring Gear Mounting Case)[10.1987 - 08.1990] AE95 T=2.73,MARK 21 |
90201-68045 |
US $6.99 |
||
|
41301J
|
41301J
90201-68046 Washer, Plate(For Ring Gear Mounting Case)[10.1987 - 08.1990] AE95 T=2.76,MARK 22 |
90201-68046 |
US $6.99 |
||
|
41301J
|
41301J
90201-68047 Washer, Plate(For Ring Gear Mounting Case)[10.1987 - 08.1990] AE95 T=2.79,MARK 23 |
90201-68047 |
US $6.99 |
||
|
41301J
|
41301J
90201-68048 Washer, Plate(For Ring Gear Mounting Case)[10.1987 - 08.1990] AE95 T=2.82,MARK 24 |
90201-68048 |
US $6.99 |
||
|
41315B
|
41315B
41315-12030 Nut, Bearing Adjusting[10.1987 - 08.1990] AE95 |
41315-12030 |
US $32.18 |
||
|
41316B
|
41316B
41316-20030 Plate, Adjusting Nut Lock[10.1987 - 08.1990] AE95 TYPE A |
41316-20030 |
US $4.95 |
||
| replacement | |||||
|
41316B
|
41316B
41316-20040 Plate, Adjusting Nut Lock[10.1987 - 08.1990] AE95 TYPE A |
41316-20040 |
US $3.32 |
||
|
41316B
|
41316B
41316-20040 Plate, Adjusting Nut Lock[10.1987 - 08.1990] AE95 TYPE B |
41316-20040 |
US $3.32 |
||
|
41319
|
41319
41319-12010
Case, Transfer Ring Gear Mounting
[10.1987 - 08.1990] AE95 |
41319-12010 |
— | ||
|
41335A
|
41335A
41335-12010 Holder, Differential Side Gear Shaft[10.1987 - 07.1988] AE95 |
41335-12010 |
US $125.22 |
||
| replacement | |||||
|
41335A
|
41335A
41335-12011 Holder, Differential Side Gear Shaft[10.1987 - 07.1988] AE95 |
41335-12011 |
US $125.22 |
||
|
41335A
|
41335A
41335-12011 Holder, Differential Side Gear Shaft[07.1988 - 08.1990] AE95 |
41335-12011 |
US $125.22 |
||
|
41335B
|
41335B
90520-40001
Ring, Shaft Snap (For Side Gear Shaft Holder)
[10.1987 - 08.1990] AE95 |
90520-40001 |
— | ||
|
41335C
|
41335C
90521-75004
Ring, Hole Snap (For Side Gear Shaft Holder)
[10.1987 - 08.1990] AE95 |
90521-75004 |
— | ||
| replacement | |||||
|
41335C
|
41335C
90521-76005 Ring, Snap (For Transfer Fr Drive Gear Assy)[10.1987 - 08.1990] AE95 |
90521-76005 |
US $1.05 |
||
|
41335D
|
41335D
90365-44003 Bearing (For Side Gear Shaft Holder)[10.1987 - 10.1989] AE95 |
90365-44003 |
US $27.52 |
||
| replacement | |||||
|
41335D
|
41335D
90365-44006 Bearing (For Side Gear Shaft Holder)[10.1987 - 10.1989] AE95 |
90365-44006 |
US $18.17 |
||
|
41335D
|
41335D
90365-44005 Bearing (For Side Gear Shaft Holder)[10.1989 - 12.1989] AE95 |
90365-44005 |
US $27.96 |
||
| replacement | |||||
|
41335D
|
41335D
90365-44006 Bearing (For Side Gear Shaft Holder)[10.1989 - 12.1989] AE95 |
90365-44006 |
US $18.17 |
||
|
41335D
|
41335D
90365-44006 Bearing (For Side Gear Shaft Holder)[12.1989 - 08.1990] AE95 |
90365-44006 |
US $18.17 |
||
