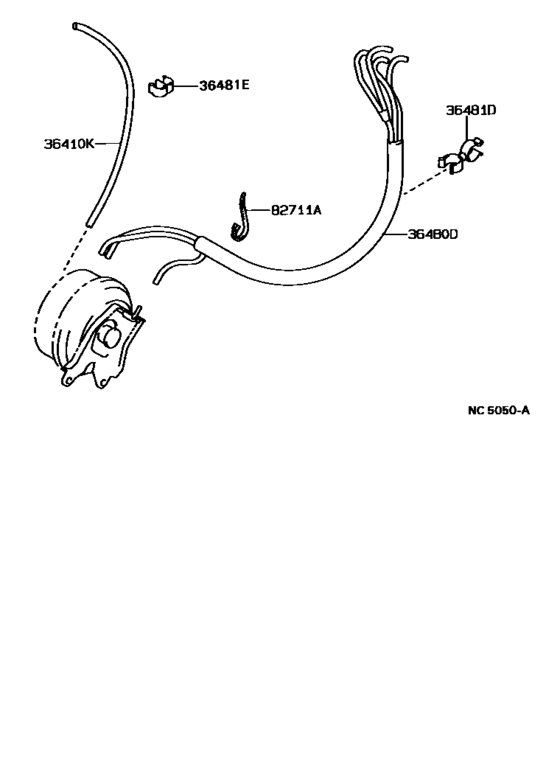

Transfer Vacuum Piping ([10.1987 - ] E55F5,E57F5 (8710- )AE95) Diagram Toyota COROLLA
- Year
- 1987 - 1990
- Sales region
- Europe
- Frame
- AE95
- grade
- XL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 10.1987
- To
- 08.1990
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- CBR
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
36410K
|
36410K
90999-92003
Hose, Breather (For Transfer Case)
[10.1987 - 08.1990] AE95 |
90999-92003 |
— | ||
|
36480D
|
36480D
36480-12020 Tube Assy, Transfer Vacuum[10.1987 - 05.1989] AE95..CBR |
36480-12020 |
US $85.90 |
||
| replacement | |||||
|
36480D
|
36480D
36480-12021 Tube Assy, Transfer VacuumTRANSFER VACUUM [10.1987 - 05.1989] AE95..CBR |
36480-12021 |
US $84.45 |
||
|
36480D
|
36480D
36480-12021 Tube Assy, Transfer VacuumTRANSFER VACUUM [05.1989 - 08.1990] AE95..CBR |
36480-12021 |
US $84.45 |
||
|
36481D
|
36481D
90464-00497 Clamp, No.1 (For Transfer Vacuum)[10.1987 - 08.1990] AE95 |
90464-00497 |
US $2.48 |
||
|
36481E
|
36481E
90464-00082 Clamp(For Resistive Cord)[10.1987 - 08.1990] AE95..CBR |
90464-00082 |
from US $1.60 |
||
|
82711A
|
82711A
82711-22270 Clamp(For Transfer Vacuum Tube)[10.1987 - 08.1990] AE95 |
82711-22270 |
US $4.37 |
||
