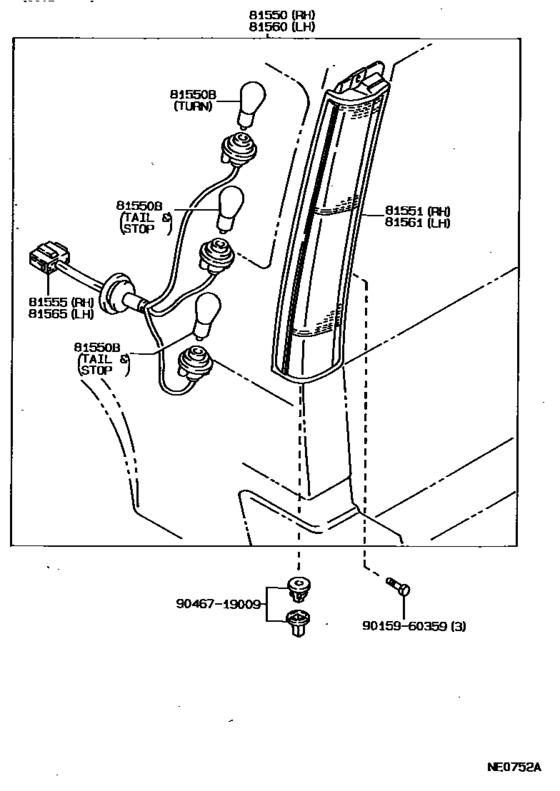

Rear Combination Lamp ([02.1988 - 08.1990] (8802-9008)AE95..WG) Diagram Toyota COROLLA
- Year
- 1988 - 1990
- Sales region
- General
- Frame
- AE95
- grade
- XL
- body
- WG
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 02.1988
- To
- 09.1990
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-1A450 Lamp Assy, Rear Combination, Rh[02.1988 - 06.1988] AE95..WG |
81550-1A450 |
US $253.34 |
||
|
81550
|
81550
81550-1A451
Lamp Assy, Rear Combination, Rh
[06.1988 - 09.1990] AE95..WG |
81550-1A451 |
— | ||
|
81550B
|
81550B
99132-11210 Bulb (12V 21W)[02.1988 - 05.1988] AE95..WG 12V 21W,TURN OR BACK |
99132-11210 |
from US $2.72 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[05.1987 - 05.1988] AE95..WG 12V 21/5W,TURN OR BACK; AE9#,CE90,EE90..SED 12V 21/5W,STOP & TAIL |
99132-21210 |
from US $2.81 |
||
|
81551
|
81551
81551-1A450 Lens, Rear Combination Lamp, Rh[02.1988 - 05.1988] AE95..WG |
81551-1A450 |
US $155.79 |
||
|
81551
|
81551
81551-1A451
Lens, Rear Combination Lamp, Rh
[05.1988 - 09.1990] AE95..WG |
81551-1A451 |
— | ||
|
81555
|
81555
81555-1A450 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[02.1988 - 09.1990] AE95..WG |
81555-1A450 |
US $33.49 |
||
|
81560
|
81560
81560-1A420 Lamp Assy, Rear Combination, Lh[02.1988 - 06.1988] AE95..WG |
81560-1A420 |
US $253.34 |
||
|
81560
|
81560
81560-1A421 Lamp Assy, Rear Combination, Lh[06.1988 - 09.1990] AE95..WG |
81560-1A421 |
US $248.98 |
||
|
81561
|
81561
81561-1A420 Lens, Rear Combination Lamp, Lh[02.1988 - 05.1988] AE95..WG |
81561-1A420 |
US $155.79 |
||
|
81561
|
81561
81561-1A421 Lens, Rear Combination Lamp, Lh[05.1988 - 09.1990] AE95..WG |
81561-1A421 |
US $155.79 |
||
|
81565
|
81565
81555-1A450 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[02.1988 - 09.1990] AE95..WG |
81555-1A450 |
US $33.49 |
||
|
9015960359
|
9015960359
90159-60359 New Genuine Part |
90159-60359 |
US $2.08 |
||
|
9046719009
|
9046719009
90467-19009 CLIP |
90467-19009 |
US $3.20 |
