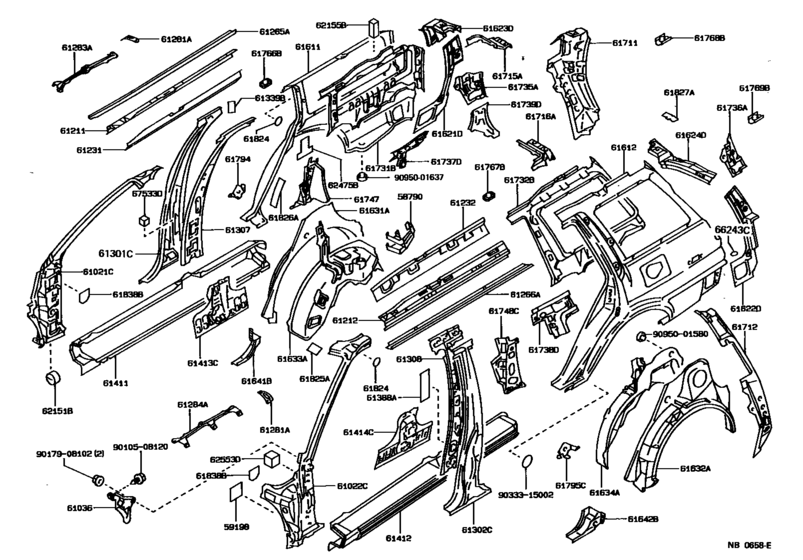

Side Member ([02.1988 - ] (8802- )AE95..WG) Diagram Toyota COROLLA
- Year
- 1988 - 1990
- Sales region
- General
- Frame
- AE95
- grade
- XL
- body
- WG
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 02.1988
- To
- 09.1990
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58790
|
58790
58790-12040 Carrier Assy, Jack[05.1987 - 05.1992] AE95..WG;AE92,EE90..LB |
58790-12040 |
US $29.27 |
||
|
59198
|
59198
59198-12010 Seal, Noise Shutter[05.1987 - 08.1993] AE9#,CE90,EE9# |
59198-12010 |
US $1.60 |
||
|
61021C
|
61021C
61021-1A020
Pillar Sub-Assy, Front Body, Rh
[02.1988 - 09.1990] AE95..LHD..WG |
61021-1A020 |
— | ||
| replacement | |||||
|
61021C
|
61021C
61021-1A070
Pillar Sub-Assy, Front Body, Rh
[02.1988 - 09.1990] AE95..LHD..WG |
61021-1A070 |
— | ||
|
61022C
|
61022C
61022-1A020
Pillar Sub-Assy, Front Body, Lh
[02.1988 - 09.1990] AE95..LHD..WG |
61022-1A020 |
— | ||
| replacement | |||||
|
61022C
|
61022C
61022-1A080
Pillar Sub-Assy, Front Body, Lh
[02.1988 - 09.1990] AE95..LHD..WG |
61022-1A080 |
— | ||
|
61211
|
61211
61211-12270 Rail, Roof Side, Outer Rh[02.1988 - 09.1990] AE95..WG |
61211-12270 |
US $81.54 |
||
|
61212
|
61212
61212-12270 Rail, Roof Side, Outer Lh[02.1988 - 09.1990] AE95..WG |
61212-12270 |
US $81.54 |
||
|
61231
|
61231
61231-12660 Rail, Roof Side, Inner Rh[02.1988 - 09.1990] AE95..WG |
61231-12660 |
US $77.17 |
||
|
61232
|
61232
61232-12530 Rail, Roof Side, Inner Lh[02.1988 - 09.1990] AE95..WG |
61232-12530 |
US $77.17 |
||
|
61265A
|
61265A
61265-12170 Channel, Roof Drip Side, Center Rh[02.1988 - 09.1990] AE95..WG |
61265-12170 |
US $39.31 |
||
|
61266A
|
61266A
61266-12170 Channel, Roof Drip Side, Center Lh[02.1988 - 09.1990] AE95..WG |
61266-12170 |
US $39.31 |
||
|
61281A
|
61281A
61281-12050 Bracket, Sliding Roof Housing Side Mounting, No.1[02.1988 - 09.1990] AE95..WG |
61281-12050 |
US $5.24 |
||
|
61283A
|
61283A
61283-12060 Bracket, Sliding Roof Housing Side Mounting, No.3 Rh[02.1988 - 09.1990] AE95..WG |
61283-12060 |
US $21.11 |
||
|
61284A
|
61284A
61284-12060 Bracket, Sliding Roof Housing Side Mounting, No.3 Lh[02.1988 - 09.1990] AE95..WG |
61284-12060 |
US $21.11 |
||
|
61301C
|
61301C
61301-12190 Pillar Sub-Assy, Center Body, Outer Rh[05.1987 - 08.1993] AE9#,CE90,EE9# |
61301-12190 |
US $310.13 |
||
|
61302C
|
61302C
61302-12250 Pillar Sub-Assy, Center Body, Outer Lh[05.1987 - 08.1989] AE9#,CE90,EE9#..GCC,GEN,SA |
61302-12250 |
US $310.13 |
||
|
61307
|
61307
61307-13030 Pillar Sub-Assy, Center Body, Inner Rh[08.1987 - 07.1992] AE9#,EE9#..WG..(GCC,GEN) |
61307-13030 |
US $139.78 |
||
| replacement | |||||
|
61307
|
61307
61307-13020 Pillar Sub-Assy, Center Body, Inner RhCENTER BODY, INNER RH [08.1987 - 07.1992] AE9#,EE9#..WG..(GCC,GEN) |
61307-13020 |
US $139.78 |
||
|
61308
|
61308
61308-12070
Pillar Sub-Assy, Center Body, Inner Lh
[02.1988 - 05.1989] AE95..WG..GEN |
61308-12070 |
— | ||
| replacement | |||||
|
61308
|
61308
61308-13030 Pillar Sub-Assy, Center Body, Inner LhCENTER BODY, INNER LH [02.1988 - 05.1989] AE95..WG..GEN |
61308-13030 |
US $139.78 |
||
|
61308
|
61308
61308-13040 Pillar Sub-Assy, Center Body, Inner Lh[05.1989 - 07.1992] AE9#,EE9#..WG..(GCC,GEN) |
61308-13040 |
US $139.78 |
||
| replacement | |||||
|
61308
|
61308
61308-13030 Pillar Sub-Assy, Center Body, Inner LhCENTER BODY, INNER LH [05.1989 - 07.1992] AE9#,EE9#..WG..(GCC,GEN) |
61308-13030 |
US $139.78 |
||
|
61388A
|
61388A
61388-12010 Plate, Center Body Pillar End, Rh[05.1987 - 12.1989] AE9#,CE90,EE9# |
61388-12010 |
US $5.82 |
||
|
61411
|
61411
61411-12370 Panel, Rocker, Outer Rh[05.1987 - 08.1993] AE9#,CE90,EE9# |
61411-12370 |
US $299.94 |
||
|
61412
|
61412
61412-12360 Panel, Rocker, Outer Lh[05.1987 - 08.1993] AE9#,CE90,EE9# |
61412-12360 |
US $299.94 |
||
|
61413C
|
61413C
61413-12040 Reinforcement, Rocker Panel, No.2 Rh[05.1987 - 08.1993] AE9#,CE90,EE9# |
61413-12040 |
US $44.41 |
||
|
61414C
|
61414C
61414-12060 Reinforcement, Rocker Panel, No.2 Lh[05.1987 - 08.1993] AE9#,CE90,EE9# |
61414-12060 |
US $44.41 |
||
|
61611
|
61611
61601-1E909 Panel, Quarter, Rh[02.1988 - 09.1990] AE95..WG |
61601-1E909 |
US $576.58 |
||
|
61612
|
61612
61602-1E916 Panel, Quarter, Lh[02.1988 - 09.1990] AE95..SR5;AE95..WG..GEN; AE95..XL..ARL W(FUEL LID OPENER) |
61602-1E916 |
US $576.58 |
||
|
61621D
|
61621D
61621-12902 Trough, Back Door Opening, Rh[02.1988 - 10.1989] AE95..WG |
61621-12902 |
US $52.12 |
||
| replacement | |||||
|
61621D
|
61621D
61621-12904 Trough, Back Door Opening, Rh[02.1988 - 10.1989] AE95..WG |
61621-12904 |
US $57.80 |
||
|
61621D
|
61621D
61621-12904 Trough, Back Door Opening, Rh[10.1989 - 09.1990] AE95 |
61621-12904 |
US $57.80 |
||
|
61622D
|
61622D
61622-12902 Trough, Back Door Opening, Lh[02.1988 - 10.1989] AE95..WG |
61622-12902 |
US $52.12 |
||
| replacement | |||||
|
61622D
|
61622D
61622-12904 Trough, Back Door Opening, Lh[02.1988 - 10.1989] AE95..WG |
61622-12904 |
US $57.80 |
||
|
61622D
|
61622D
61622-12904 Trough, Back Door Opening, Lh[10.1989 - 09.1990] AE95 |
61622-12904 |
US $57.80 |
||
|
61623D
|
61623D
61623-12080 Extension, Quarter Panel, Front Rh[02.1988 - 09.1990] AE95..WG |
61623-12080 |
US $35.53 |
||
|
61624D
|
61624D
61624-12080 Extension, Quarter Panel, Front Lh[02.1988 - 09.1990] AE95..WG |
61624-12080 |
US $35.53 |
||
|
61631A
|
61631A
61631-13060 Panel, Quarter Wheel House, Outer Rh[08.1987 - 07.1992] AE9#,EE90..WG |
61631-13060 |
US $161.62 |
||
|
61632A
|
61632A
61632-12270 Panel, Quarter Wheel House, Outer Lh[02.1988 - 09.1990] AE95..WG |
61632-12270 |
US $161.62 |
||
|
61633A
|
61633A
61607-12400 Panel, Quarter Wheel House, Inner Rh[02.1988 - 09.1990] AE95..WG |
61607-12400 |
US $235.87 |
||
|
61634A
|
61634A
61608-12420 Panel, Quarter Wheel House, Inner Lh[02.1988 - 09.1990] AE95..WG |
61608-12420 |
US $235.87 |
||
|
61641B
|
61641B
61641-12040 Gusset, Quarter Wheel House, Rh[05.1987 - 08.1993] AE9#,CE90,EE9# |
61641-12040 |
US $20.68 |
||
|
61642B
|
61642B
61642-12040 Gusset, Quarter Wheel House, Lh[05.1987 - 08.1993] AE9#,CE90,EE9# |
61642-12040 |
US $20.68 |
||
|
61711
|
61711
61711-12300 Panel, Roof Side, Outer Rh[02.1988 - 09.1990] AE95..WG |
61711-12300 |
US $128.13 |
||
|
61712
|
61712
61712-12330 Panel, Roof Side, Outer Lh[02.1988 - 09.1990] AE95..WG |
61712-12330 |
US $128.13 |
||
|
61715A
|
61715A
61715-12030 Extension, Roof Side, Inner Upper Rh[02.1988 - 09.1990] AE95..WG |
61715-12030 |
US $24.90 |
||
|
61716A
|
61716A
61716-12030 Extension, Roof Side, Inner Upper Lh[02.1988 - 09.1990] AE95..WG |
61716-12030 |
US $24.90 |
||
|
61731B
|
61731B
61731-12490 Panel, Roof Side, Inner Rh[02.1988 - 09.1990] AE95..WG |
61731-12490 |
US $211.12 |
||
|
61732B
|
61732B
61732-12450 Panel, Roof Side, Inner Lh[02.1988 - 09.1990] AE95..WG |
61732-12450 |
US $211.12 |
||
|
61735A
|
61735A
61735-12290 Panel, Roof Side, Inner Rear Rh[02.1988 - 09.1990] AE95..WG |
61735-12290 |
US $20.24 |
||
|
61736A
|
61736A
61736-12260 Panel, Roof Side, Inner Rear Lh[02.1988 - 09.1990] AE95..WG |
61736-12260 |
US $20.24 |
||
|
61737D
|
61737D
61737-12110 Reinforcement, Roof Side, Inner Rh[02.1988 - 09.1990] AE95..WG |
61737-12110 |
US $28.83 |
||
|
61738D
|
61738D
61738-12120 Reinforcement, Roof Side, Inner Lh[02.1988 - 09.1990] AE95..WG |
61738-12120 |
US $28.83 |
||
|
61739D
|
61739D
61739-12110 Reinforcement, Jack Carrier Support[02.1988 - 09.1990] AE95..WG |
61739-12110 |
US $21.99 |
||
|
61747
|
61747
61747-12160 Brace, Roof Side Inner To Wheel House, Rh[02.1988 - 09.1990] AE95..WG |
61747-12160 |
US $38.58 |
||
|
61748C
|
61748C
61748-12160 Brace, Roof Side Inner To Wheel House, Lh[02.1988 - 09.1990] AE95..WG |
61748-12160 |
US $38.58 |
||
|
61766B
|
61766B
61766-12220 Reinforcement, Belt Anchor To Roof Side, Inner Rh[02.1988 - 09.1990] AE95..WG |
61766-12220 |
US $7.43 |
||
|
61767B
|
61767B
61767-12180 Reinforcement, Belt Anchor To Roof Side, Inner Lh[02.1988 - 09.1990] AE95..WG |
61767-12180 |
US $7.43 |
||
|
61768B
|
61768B
61768-32010 Reinforce, Belt Anchor To Roof Side, Inner Rear Rh[02.1988 - 09.1990] AE95..WG |
61768-32010 |
US $10.19 |
||
|
61769B
|
61769B
61768-32010 Reinforce, Belt Anchor To Roof Side, Inner Rear Rh[02.1988 - 09.1990] AE95..WG |
61768-32010 |
US $10.19 |
||
|
61794
|
61794
61794-12010 Bracket, Radio Speaker, No.1[02.1988 - 09.1990] AE95..WG |
61794-12010 |
US $6.99 |
||
|
61795C
|
61795C
61795-12030 Bracket, Radio Speaker, No.2[02.1988 - 09.1990] AE95..WG |
61795-12030 |
US $6.99 |
||
|
61824
|
61824
61824-12020 Plate, Noise Control, No.1[05.1987 - 05.1989] AE9#,CE90,EE9# |
61824-12020 |
US $2.18 |
||
| replacement | |||||
|
61824
|
61824
61824-12040 Plate, Noise Control, No.1[05.1987 - 05.1989] AE9#,CE90,EE9# |
61824-12040 |
US $1.89 |
||
|
61824
|
61824
61824-12040 Plate, Noise Control, No.1[05.1989 - 08.1993] AE9#,CE90,EE9# |
61824-12040 |
US $1.89 |
||
|
61825A
|
61825A
61825-12010 Cover, Roof Side, Inner Upper Rh[05.1987 - 08.1993] AE9#,CE90,EE9# |
61825-12010 |
US $2.04 |
||
|
61826A
|
61826A
61826-12040 Plate, Noise Control, No.3[02.1988 - 09.1990] AE95..WG |
61826-12040 |
US $3.20 |
||
|
61827A
|
61827A
61827-12020 Plate, Noise Control, No.4[02.1988 - 09.1990] AE95..WG |
61827-12020 |
US $5.24 |
||
|
61838B
|
61838B
61838-12010 Plate, Noise Control, No.5[05.1987 - 08.1993] AE9#,CE90,EE9# |
61838-12010 |
US $3.20 |
||
|
62151B
|
62151B
62151-12100 Pad, Cowl Side Silencer[05.1987 - 06.1991] AE9#,CE90,EE9# |
62151-12100 |
US $14.71 |
||
|
62155B
|
62155B
62155-12010 Pad, Cowl Side Lower Silencer[02.1988 - 09.1990] AE95..WG |
62155-12010 |
US $1.75 |
||
|
62475B
|
62475B
62475-12050
Seal, Roof Side, Inner
[02.1988 - 09.1990] AE95..WG |
62475-12050 |
— | ||
|
62553D
|
62553D
62553-12120 Pad, Cowl Side Silencer[05.1987 - 08.1993] AE9#,CE90,EE9# |
62553-12120 |
US $1.60 |
||
|
66243C
|
66243C
66243-20010 Protector, Rear Body, No.1[05.1989 - 09.1990] AE95..WG |
66243-20010 |
US $2.20 |
||
|
67533D
|
67533D
67533-12010 Pad, Front Door Lower Frame Garnish, Rh[05.1987 - 08.1993] AE9#,CE90,EE9# |
67533-12010 |
US $6.41 |
||
|
9010508120
|
9010508120
90105-08120 New Genuine Part |
90105-08120 |
US $1.44 |
||
|
9017908102
|
9017908102
90179-08102 NUT |
90179-08102 |
US $2.56 |
||
|
9033315002
|
9033315002
90333-15002 PLUG |
90333-15002 |
from US $1.44 |
||
|
9095001580
|
9095001580
90950-01580 Plug, Hole(For Clutch Under Cover) |
90950-01580 |
US $3.68 |
||
|
9095001637
|
9095001637
90950-01637 PLUG HOLE |
90950-01637 |
US $1.76 |
||
