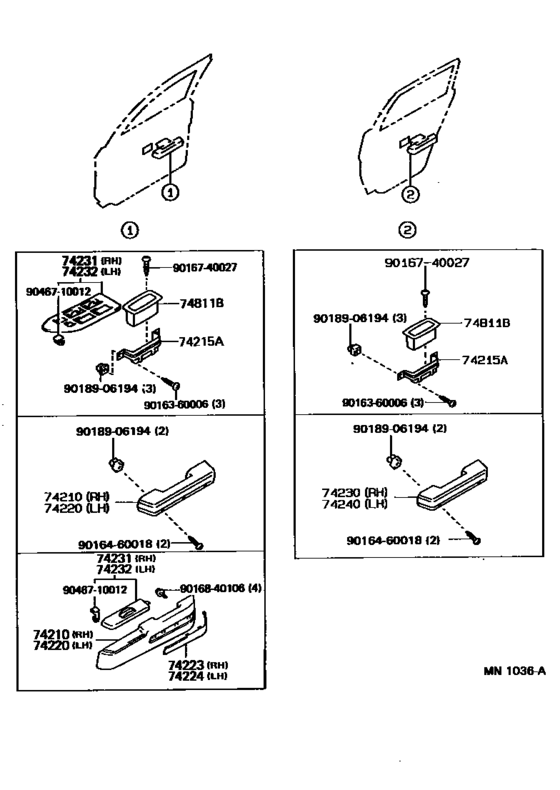

Armrest & Visor ([09.1990 - ] (9009- )) Diagram Toyota COROLLA
- Year
- 1990 - 1995
- Sales region
- General
- Frame
- AE95
- grade
- XL
- body
- WG
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA WAGON
- From
- 09.1990
- To
- 08.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla Wagon
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74210
|
74210
74210-12110-B1 Armrest Assy, Front, Rh[09.1990 - 08.1995] AE95..XL SHADOW GRAY,TRIM1# |
74210-12110-B1 |
US $26.73 |
||
|
74210
|
74210
74210-12110-J0 Armrest Assy, Front, Rh[09.1990 - 08.1993] AE95..XL DARK BLUE,TRIM8# |
74210-12110-J0 |
US $43.68 |
||
|
74210
|
74210
74210-12130-B0 Armrest Assy, Front, Rh[09.1990 - 08.1993] AE95..RHD..GEN W(POWER WINDOW),SHADOW GRAY,TRIM1#; AE95..LHD W(POWER WINDOW),SHADOW GRAY,TRIM1# |
74210-12130-B0 |
US $149.97 |
||
|
74210
|
74210
74210-12130-J0 Armrest Assy, Front, Rh[09.1990 - 08.1995] AE95..LHD W(POWER WINDOW),DARK BLUE,TRIM8# |
74210-12130-J0 |
US $149.97 |
||
|
74220
|
74220
74210-12110-B1 Armrest Assy, Front, Rh[09.1990 - 08.1995] AE95..XL SHADOW GRAY,TRIM1# |
74210-12110-B1 |
US $26.73 |
||
|
74220
|
74220
74210-12110-J0 Armrest Assy, Front, Rh[09.1990 - 08.1993] AE95..XL DARK BLUE,TRIM8# |
74210-12110-J0 |
US $43.68 |
||
|
74220
|
74220
74220-12070-B0 Armrest Assy, Front, Lh[09.1990 - 08.1993] AE95..RHD..GEN W(POWER WINDOW),SHADOW GRAY,TRIM1#; AE95..LHD W(POWER WINDOW),SHADOW GRAY,TRIM1# |
74220-12070-B0 |
US $149.97 |
||
|
74220
|
74220
74220-12070-J0 Armrest Assy, Front, Lh[09.1990 - 08.1995] AE95..LHD W(POWER WINDOW),DARK BLUE,TRIM8# |
74220-12070-J0 |
US $149.97 |
||
|
74223
|
74223
74223-12080-B0 Cap, Door Armrest, Rh[09.1990 - 08.1995] AE95..GEN SHADOW GRAY,TRIM1# |
74223-12080-B0 |
US $13.25 |
||
|
74223
|
74223
74223-12080-J0 Cap, Door Armrest, Rh[09.1990 - 08.1993] AE95..GEN DARK BLUE,TRIM8# |
74223-12080-J0 |
US $13.25 |
||
|
74224
|
74224
74224-12030-B0 Cap, Door Armrest, Lh[09.1990 - 08.1995] AE95..GEN SHADOW GRAY,TRIM1# |
74224-12030-B0 |
US $13.25 |
||
|
74224
|
74224
74224-12030-J0 Cap, Door Armrest, Lh[09.1990 - 08.1993] AE95..GEN DARK BLUE,TRIM8# |
74224-12030-J0 |
US $13.25 |
||
|
74230
|
74230
74210-12110-B1 Armrest Assy, Front, Rh[09.1990 - 08.1995] AE95..XL SHADOW GRAY,TRIM1# |
74210-12110-B1 |
US $26.73 |
||
|
74230
|
74230
74210-12110-J0 Armrest Assy, Front, Rh[09.1990 - 08.1993] AE95..XL DARK BLUE,TRIM8# |
74210-12110-J0 |
US $43.68 |
||
|
74232
|
74232
74231-12050-B0
Panel, Front Armrest Base, Upper Rh
[09.1990 - 08.1995] AE95..LHD W(POWER WINDOW),SHADOW GRAY,TRIM1# |
74231-12050-B0 |
— | ||
|
74232
|
74232
74231-12050-J0
Panel, Front Armrest Base, Upper Rh
[09.1990 - 08.1995] AE95..LHD W(POWER WINDOW),DARK BLUE,TRIM8# |
74231-12050-J0 |
— | ||
| replacement | |||||
|
74232
|
74232
74231-12050-B0
Panel, Front Armrest Base, Upper Rh
[09.1990 - 08.1995] AE95..LHD W(POWER WINDOW),DARK BLUE,TRIM8# |
74231-12050-B0 |
— | ||
|
74232
|
74232
74232-12040-B0 Panel, Front Armrest Base, Upper Lh[09.1990 - 08.1995] AE95..LHD W(POWER WINDOW & ELECTRO MAGNETICK LOCK),SHADOW GRAY,TRIM1# |
74232-12040-B0 |
US $27.52 |
||
|
74232
|
74232
74232-12040-J0 Panel, Front Armrest Base, Upper Lh[09.1990 - 08.1995] AE95..LHD W(POWER WINDOW & ELECTRO MAGNETICK LOCK),DARK BLUE,TRIM8# |
74232-12040-J0 |
US $27.52 |
||
| replacement | |||||
|
74232
|
74232
74232-12040-B0 Panel, Front Armrest Base, Upper Lh[09.1990 - 08.1995] AE95..LHD W(POWER WINDOW & ELECTRO MAGNETICK LOCK),DARK BLUE,TRIM8# |
74232-12040-B0 |
US $27.52 |
||
|
74240
|
74240
74210-12110-B1 Armrest Assy, Front, Rh[09.1990 - 08.1995] AE95..XL SHADOW GRAY,TRIM1# |
74210-12110-B1 |
US $26.73 |
||
|
74240
|
74240
74210-12110-J0 Armrest Assy, Front, Rh[09.1990 - 08.1993] AE95..XL DARK BLUE,TRIM8# |
74210-12110-J0 |
US $43.68 |
||
|
9016360006
|
9016360006
90163-60006 New Genuine Part |
90163-60006 |
US $1.60 |
||
|
9016460018
|
9016460018
90164-60018 SCREW |
90164-60018 |
from US $0.76 |
||
|
9016740027
|
9016740027
90167-40027 SCREW |
90167-40027 |
from US $0.86 |
||
| replacement | |||||
|
9016740027
|
9016740027
90167-40021 SCREW |
90167-40021 |
from US $0.92 |
||
|
9016840106
|
9016840106
90168-40106 New Genuine Part |
90168-40106 |
US $1.16 |
||
|
9018906194
|
9018906194
90189-06194 New Genuine Part |
90189-06194 |
US $1.75 |
||
|
9046710012
|
9046710012
90467-10012 CLIP |
90467-10012 |
US $1.05 |
||
