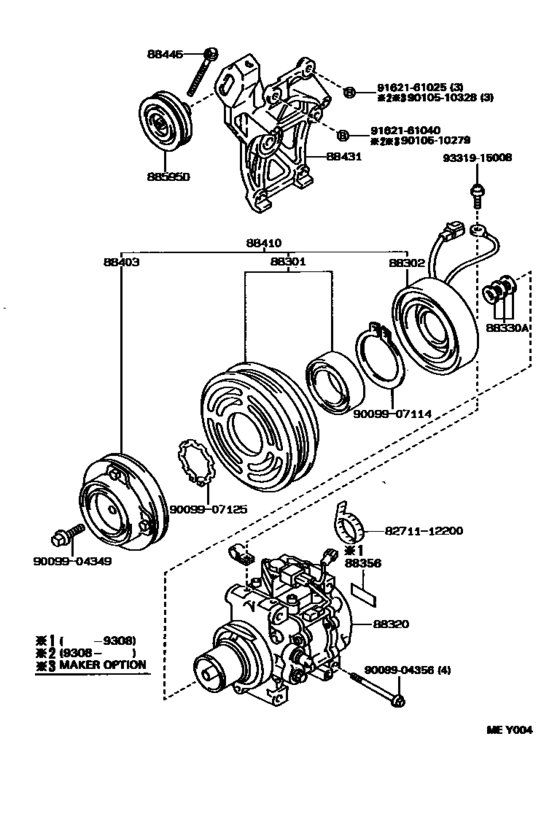

Heating & Air Conditioning - Compressor ([09.1990 - ] (9009- )) Diagram Toyota COROLLA
- Year
- 1990 - 1995
- Sales region
- General
- Frame
- AE95
- grade
- XL
- body
- WG
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA WAGON
- From
- 09.1990
- To
- 08.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla Wagon
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-12150
Rotor Sub-Assy, Magnet Clutch
[09.1990 - 08.1993] AE95..GEN MAKER OPTION |
88412-12150 |
— | ||
|
88301
|
88301
88412-12190
Rotor Sub-Assy, Magnet Clutch
[09.1990 - 08.1993] AE95..ARL; AE95..GEN DEALER OPTION |
88412-12190 |
— | ||
|
88301
|
88301
88412-1A060
Rotor Sub-Assy, Magnet Clutch
[08.1993 - 08.1995] AE95 |
88412-1A060 |
— | ||
|
88302
|
88302
88411-12141
Stator Sub-Assy, Magnet Clutch
[09.1990 - 08.1993] AE95..GEN DEALER OPTION |
88411-12141 |
— | ||
|
88302
|
88302
88411-12150
Stator Sub-Assy, Magnet Clutch
[09.1990 - 08.1993] AE95..ARL; AE95..GEN LOW PULLEY TYPE |
88411-12150 |
— | ||
|
88302
|
88302
88411-30540
Stator Sub-Assy, Magnet Clutch
[09.1990 - 08.1993] AE95..GEN MAKER OPTION |
88411-30540 |
— | ||
| replacement | |||||
|
88302
|
88302
88411-3A010
Stator Sub-Assy, Magnet Clutch
[09.1990 - 08.1993] AE95..GEN MAKER OPTION |
88411-3A010 |
— | ||
|
88320
|
88320
88320-12520
Compressor Assy, Cooler
[09.1990 - 08.1993] AE95..ARL; AE95..GEN DEALER OPTION |
88320-12520 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-35H91 Compressor Assy, Cooler[09.1990 - 08.1993] AE95..ARL; AE95..GEN DEALER OPTION |
88320-35H91 |
US $1,579.47 |
||
|
88320
|
88320
88320-12720
Compressor Assy, Cooler
[09.1990 - 08.1993] AE95..GEN MAKER OPTION,LOW PULLY TYPE |
88320-12720 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-35H91 Compressor Assy, Cooler[09.1990 - 08.1993] AE95..GEN MAKER OPTION,LOW PULLY TYPE |
88320-35H91 |
US $1,579.47 |
||
|
88320
|
88320
88320-12880
Compressor Assy, Cooler
[09.1990 - 08.1993] AE95..GEN MAKER OPTION |
88320-12880 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-35H91 Compressor Assy, Cooler[09.1990 - 08.1993] AE95..GEN MAKER OPTION |
88320-35H91 |
US $1,579.47 |
||
|
88320
|
88320
88320-1A420
Compressor Assy, Cooler
[08.1993 - 08.1995] AE95 |
88320-1A420 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-35H92 Compressor Assy, Cooler[08.1993 - 08.1995] AE95 |
88320-35H92 |
US $1,359.32 |
||
|
88330A
|
88330A
90099-01553 Washer (For Magnet Clutch)[09.1990 - 08.1995] AE95 T=0.1 |
90099-01553 |
US $1.46 |
||
|
88330A
|
88330A
90099-01554 Washer (For Magnet Clutch)[09.1990 - 08.1995] AE95 T=0.3 |
90099-01554 |
US $1.46 |
||
|
88330A
|
88330A
90099-01555 Washer (For Magnet Clutch)[09.1990 - 08.1995] AE95 T=0.5 |
90099-01555 |
US $1.02 |
||
|
88356
|
88356
88356-12010
Plate, Caution
[09.1990 - 08.1993] AE95 |
88356-12010 |
— | ||
|
88403
|
88403
88403-16011 Hub Sub-Assy, Magnet Clutch[09.1990 - 08.1993] AE95 |
88403-16011 |
US $82.47 |
||
|
88403
|
88403
88403-30290 Hub Sub-Assy, Magnet Clutch[08.1993 - 08.1995] AE95 |
88403-30290 |
US $86.66 |
||
|
88410
|
88410
88410-12270 Clutch Assy, MagnetMAGNET [09.1990 - 08.1993] AE95..GEN DEALER OPTION,LOW PULLEY TYPE,W(*BV) |
88410-12270 |
US $554.74 |
||
|
88410
|
88410
88410-12320 Clutch Assy, MagnetMAGNET [09.1990 - 08.1993] AE95..GEN DEALER OPTION |
88410-12320 |
US $554.74 |
||
|
88410
|
88410
88410-12330 Clutch Assy, MagnetMAGNET [09.1990 - 08.1993] AE95..ARL; AE95..GEN LOW PULLEY TYPE |
88410-12330 |
US $556.19 |
||
|
88410
|
88410
88410-12420 Clutch Assy, MagnetMAGNET [09.1990 - 08.1993] AE95..GEN MAKER OPTION |
88410-12420 |
US $554.74 |
||
|
88410
|
88410
88410-1A160 Clutch Assy, MagnetMAGNET [08.1993 - 08.1995] AE95..GEN; AE95..ARL |
88410-1A160 |
US $551.82 |
||
|
88431
|
88431
88431-12380
Bracket, Compressor Mounting, No.1
[09.1990 - 08.1995] AE95 |
88431-12380 |
— | ||
|
88446
|
88446
88446-12030
Bolt, Idle Pulley
[09.1990 - 08.1995] AE95 |
88446-12030 |
— | ||
|
88595D
|
88595D
88440-17010 Pulley Assy, Idle[09.1990 - 08.1995] AE95 |
88440-17010 |
US $94.72 |
||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
from US $1.66 |
||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009904356
|
9009904356
90099-04356 BOLT |
90099-04356 |
US $2.77 |
||
| replacement | |||||
|
9009904356
|
9009904356
90099043561
Bolt
|
90099043561 |
— | ||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.19 |
||
|
9009907125
|
9009907125
90099-07125 Ring, Snap |
90099-07125 |
from US $1.15 |
||
|
9010510279
|
9010510279
90105-10279 New Genuine Part |
90105-10279 |
US $2.48 |
||
|
9010510328
|
9010510328
90105-10328 Bolt (For Rear Differential Carrier Cover Setting) |
90105-10328 |
US $2.04 |
||
|
9162161025
|
9162161025
91621-61025 New Genuine Part |
91621-61025 |
US $2.62 |
||
|
9162161040
|
9162161040
91621-61040 New Genuine Part |
91621-61040 |
US $4.53 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
