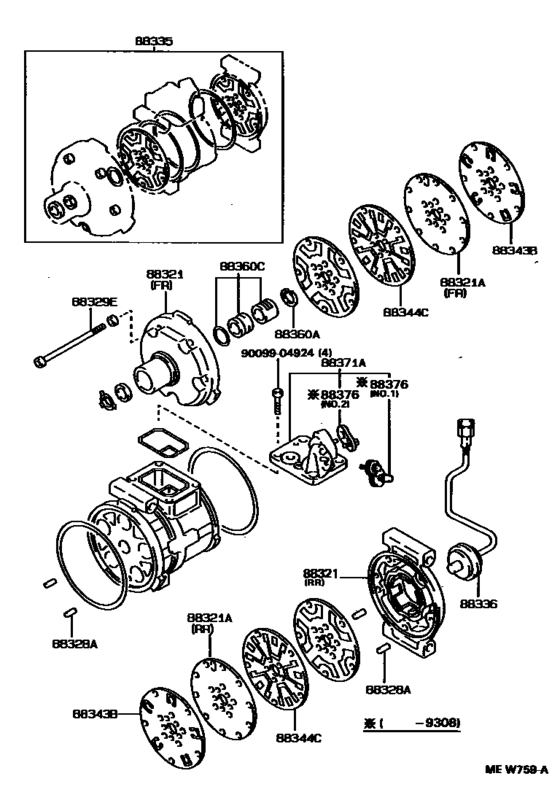

Heating & Air Conditioning - Compressor ([09.1990 - ] (9009- )) Diagram Toyota COROLLA
- Year
- 1990 - 1995
- Sales region
- General
- Frame
- AE95
- grade
- XL
- body
- WG
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA WAGON
- From
- 09.1990
- To
- 08.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla Wagon
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88321
|
88321
88321-14021
Head, Cooler Compressor Cylinder
[09.1990 - 08.1993] AE95 FR |
88321-14021 |
— | ||
|
88321
|
88321
88321-32010
Head, Cooler Compressor Cylinder
[08.1993 - 08.1995] AE95 FR |
88321-32010 |
— | ||
|
88321
|
88321
88322-14020
Head, Cooler Compressor Cylinder
[09.1990 - 08.1993] AE95 RR |
88322-14020 |
— | ||
|
88321
|
88321
88322-32040
Head, Cooler Compressor Cylinder
[08.1993 - 08.1995] AE95 RR |
88322-32040 |
— | ||
|
88321A
|
88321A
88341-14020
Plate Sub-Assy, Valve
[09.1990 - 08.1993] AE95 FR |
88341-14020 |
— | ||
|
88321A
|
88321A
88341-22010
Plate Sub-Assy, Valve
[08.1993 - 08.1995] AE95 FR |
88341-22010 |
— | ||
|
88321A
|
88321A
88342-14020
Plate Sub-Assy, Valve
[09.1990 - 08.1993] AE95 RR |
88342-14020 |
— | ||
|
88321A
|
88321A
88342-22010
Plate Sub-Assy, Valve
[08.1993 - 08.1995] AE95 RR |
88342-22010 |
— | ||
|
88328A
|
88328A
90099-08058
Pin, Cylinder Block
[09.1990 - 08.1995] AE95 |
90099-08058 |
— | ||
|
88329E
|
88329E
90099-04370
Bolt, Compressor, No.1
[09.1990 - 08.1995] AE95 |
90099-04370 |
— | ||
|
88335
|
88335
88335-14010
Gasket Kit, Overhaul
[09.1990 - 08.1993] AE95 |
88335-14010 |
— | ||
| replacement | |||||
|
88335
|
88335
88335-2B030 Gasket Kit, Overhaul[09.1990 - 08.1993] AE95 |
88335-2B030 |
from US $38.98 |
||
|
88335
|
88335
88335-2B010
Gasket Kit, Overhaul
[08.1993 - 08.1995] AE95 |
88335-2B010 |
— | ||
| replacement | |||||
|
88335
|
88335
88335-2B030 Gasket Kit, Overhaul[08.1993 - 08.1995] AE95 |
88335-2B030 |
from US $38.98 |
||
|
88336
|
88336
88336-12050
Sensor, Compressor
[09.1990 - 08.1993] AE95..GEN |
88336-12050 |
— | ||
|
88343B
|
88343B
88343-14020
Reed, Suction Valve
[09.1990 - 08.1995] AE95 |
88343-14020 |
— | ||
|
88344C
|
88344C
88344-14020
Reed Sub-Assy, Valve
[09.1990 - 08.1993] AE95 |
88344-14020 |
— | ||
|
88344C
|
88344C
88344-22010
Reed, Discharge Valve
[08.1993 - 08.1995] AE95 |
88344-22010 |
— | ||
|
88360A
|
88360A
90096-90022
Ring, Compressor Seal Plate Snap
[09.1990 - 08.1995] AE95 |
90096-90022 |
— | ||
|
88360C
|
88360C
88360-14030
Seal Assy, Shaft
[09.1990 - 08.1993] AE95 |
88360-14030 |
— | ||
| replacement | |||||
|
88360C
|
88360C
88360-2B020 Seal Assy, Shaft[09.1990 - 08.1993] AE95 |
88360-2B020 |
US $68.84 |
||
|
88360C
|
88360C
88360-2B010
Seal Assy, Shaft
[08.1993 - 08.1995] AE95 |
88360-2B010 |
— | ||
| replacement | |||||
|
88360C
|
88360C
88360-2B020 Seal Assy, Shaft[08.1993 - 08.1995] AE95 |
88360-2B020 |
US $68.84 |
||
|
88371A
|
88371A
88371-12340
Valve, Suction
[09.1990 - 08.1993] AE95..ARL; AE95..GEN DEALER OPTION |
88371-12340 |
— | ||
|
88371A
|
88371A
88371-12350
Valve, Suction
[09.1990 - 08.1993] AE95..GEN MAKER OPTION,LOW PULLY TYPE |
88371-12350 |
— | ||
|
88371A
|
88371A
88371-12360
Valve, Suction
[09.1990 - 08.1993] AE95..GEN MAKER OPTION |
88371-12360 |
— | ||
|
88371A
|
88371A
88371-1A010
Valve, Cooler Compressor Suction Service
[08.1993 - 08.1995] AE95 |
88371-1A010 |
— | ||
|
88376
|
88376
88376-17020
Cap, Blind
[09.1990 - 08.1993] AE95..GEN MAKER OPTION,NO.1 |
88376-17020 |
— | ||
|
88376
|
88376
88376-22020
Cap, Blind
[09.1990 - 08.1993] AE95..GEN MAKER OPTION,NO.2 |
88376-22020 |
— | ||
|
88376
|
88376
88376-28010
Cap, Blind
[09.1990 - 08.1993] AE95..ARL NO.1; AE95..GEN DEALER OPTION,NO.1 |
88376-28010 |
— | ||
| replacement | |||||
|
88376
|
88376
88376-20020
Cap, Blind
[09.1990 - 08.1993] AE95..ARL NO.1; AE95..GEN DEALER OPTION,NO.1 |
88376-20020 |
— | ||
|
88376
|
88376
88376-28020
Cap, Blind
[09.1990 - 08.1993] AE95..ARL NO.2; AE95..GEN DEALER OPTION,NO.2 |
88376-28020 |
— | ||
|
9009904924
|
9009904924
90099-04924
Bolt, Service Valve
|
90099-04924 |
— | ||
