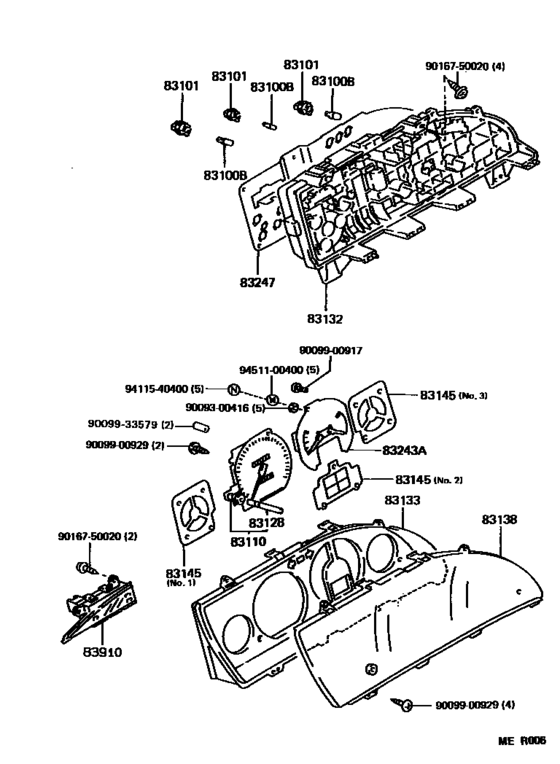

Meter ([09.1990 - ] (9009- )XL) Diagram Toyota COROLLA
- Year
- 1990 - 1995
- Sales region
- General
- Frame
- AE95
- grade
- XL
- body
- WG
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA WAGON
- From
- 09.1990
- To
- 08.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla Wagon
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83101-20080
Bulb, Combination Meter, No.1
[09.1990 - 08.1995] AE95..4FC 12V 1.4W,W(SOCKET); AE95..LHD 12V 1.4W,W(SOCKET) |
83101-20080 |
— | ||
|
83100B
|
83100B
83109-12030 Bulb, Combination Meter, No.1[09.1990 - 08.1995] AE95 12V 3.4W,BLUE CAP |
83109-12030 |
US $1.92 |
||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[09.1990 - 08.1995] AE95..LHD 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.24 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[09.1990 - 08.1993] AE95..GEN 12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[09.1990 - 08.1993] AE95..GEN 12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[09.1990 - 08.1993] AE95..GEN 12V 3.4W BULB |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[09.1990 - 08.1995] AE95..LHD 12V 1.4W BULB |
83101-14040 |
US $3.02 |
||
|
83110
|
83110
83110-1E341 Speedometer Assy[09.1990 - 08.1995] AE95..LHD |
83110-1E341 |
US $353.81 |
||
| replacement | |||||
|
83110
|
83110
83110-1E421 Speedometer Assy[09.1990 - 08.1995] AE95..LHD |
83110-1E421 |
US $337.79 |
||
|
83110
|
83110
83110-1E351 Speedometer Assy[09.1990 - 08.1995] AE95..LHD MILE/KM |
83110-1E351 |
US $413.50 |
||
|
83110
|
83110
83110-1E361 Speedometer Assy[09.1990 - 08.1995] AE95..LHD W(TACHOMETER) |
83110-1E361 |
US $353.81 |
||
| replacement | |||||
|
83110
|
83110
83110-1E411 Speedometer Assy[09.1990 - 08.1995] AE95..LHD W(TACHOMETER) |
83110-1E411 |
US $451.36 |
||
|
83110
|
83110
83110-1E371 Speedometer Assy[09.1990 - 08.1995] AE95..LHD MILE/KM & W(TACHOMETER) |
83110-1E371 |
US $413.50 |
||
|
83128
|
83128
83128-14630
Knob, Trip Counter
[09.1990 - 08.1995] AE95 |
83128-14630 |
— | ||
|
83132
|
83132
83132-1A230
Case, Combination Meter
[09.1990 - 08.1995] AE95..LHD |
83132-1A230 |
— | ||
|
83132
|
83132
83132-1A270
Case, Combination Meter
[09.1990 - 08.1995] AE95..LHD W(TACHOMETER) |
83132-1A270 |
— | ||
|
83133
|
83133
83133-13130
Plate, Combination Meter, No.1
[09.1990 - 08.1995] AE95..LHD W(TACHOMETER) |
83133-13130 |
— | ||
|
83133
|
83133
83133-1A750
Plate, Combination Meter, No.1
[09.1990 - 08.1995] AE95..LHD |
83133-1A750 |
— | ||
|
83138
|
83138
83138-1A030
Glass, Speedometer
[09.1990 - 08.1995] AE95..LHD |
83138-1A030 |
— | ||
|
83145
|
83145
83145-13410
Lens, Meter, No.1
[09.1990 - 08.1995] AE95..LHD NO.1 |
83145-13410 |
— | ||
|
83145
|
83145
83145-1E650
Lens, Meter, No.1
[09.1990 - 08.1995] AE95..LHD NO.3 |
83145-1E650 |
— | ||
|
83145
|
83145
83145-1E750
Lens, Meter, No.1
[09.1990 - 08.1995] AE95..LHD NO.2 |
83145-1E750 |
— | ||
|
83243A
|
83243A
83243-1A251
Gauge Sub-Assy, Fuel Receiver
[09.1990 - 08.1995] AE95..LHD W(TACHOMETER) |
83243-1A251 |
— | ||
|
83243A
|
83243A
83243-1A631 Gauge Sub-Assy, Fuel ReceiverFUEL RECEIVER [09.1990 - 08.1995] AE95..LHD |
83243-1A631 |
US $78.62 |
||
|
83247
|
83247
83247-13750
Plate, Meter Circuit
[09.1990 - 08.1995] AE95..LHD W(TACHOMETER) |
83247-13750 |
— | ||
|
83247
|
83247
83247-13810
Plate, Meter Circuit
[09.1990 - 08.1995] AE95..LHD |
83247-13810 |
— | ||
|
83910
|
83910
83910-12410 Clock Assy[09.1990 - 08.1995] AE95..LHD |
83910-12410 |
US $409.14 |
||
|
9009300416
|
9009300416
90093-00416
New Genuine Part
|
90093-00416 |
— | ||
|
9009900917
|
9009900917
90099-00917
New Genuine Part
|
90099-00917 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9009933579
|
9009933579
90099-33579
New Genuine Part
|
90099-33579 |
— | ||
|
9016750020
|
9016750020
90167-50020 SCREW PAN TAPPING |
90167-50020 |
US $1.92 |
||
|
9411540400
|
9411540400
94115-40400
NUT
|
94115-40400 |
— | ||
| replacement | |||||
|
9411540400
|
9411540400
90076-01001 NUT |
90076-01001 |
US $2.08 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
