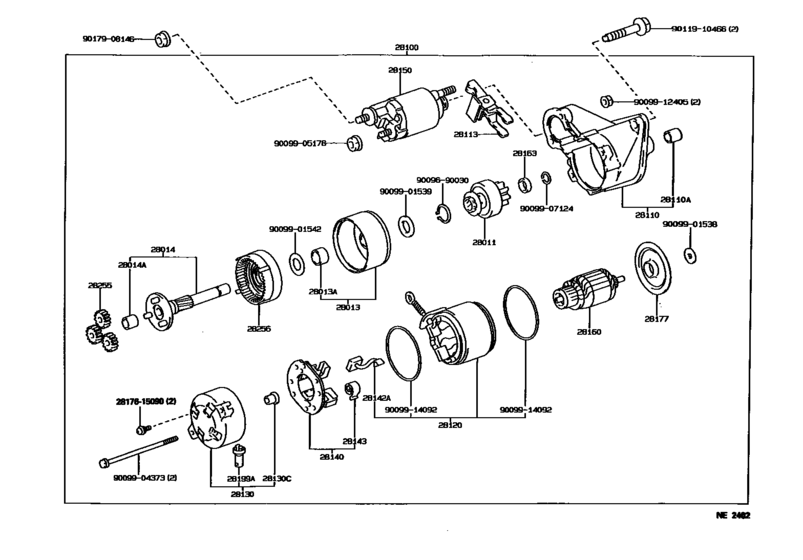

Starter ([09.1990 - ] 12V 0.8KW (9009- )) Diagram Toyota COROLLA
- Year
- 1990 - 1995
- Sales region
- General
- Frame
- AE95
- grade
- XL
- body
- WG
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA WAGON
- From
- 09.1990
- To
- 08.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla Wagon
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-70020 Clutch Sub-Assy, Starter[09.1990 - 08.1992] 4AF#..AE95..5F |
28011-70020 |
US $43.51 |
||
|
28013
|
28013
28013-70020 Bearing, Starter Center & Shock Absorber, No.1[09.1990 - 08.1995] 4AF#..AE95 |
28013-70020 |
US $29.12 |
||
| replacement | |||||
|
28013
|
28013
28013-70030 Bearing, Starter Center & Shock Absorber, No.1[09.1990 - 08.1995] 4AF#..AE95 |
28013-70030 |
US $24.32 |
||
|
28013A
|
28013A
90099-10181
Bearing, Starter Center & Shock Absorber, No.2
[09.1990 - 08.1995] 4AF#..AE95 |
90099-10181 |
— | ||
|
28014
|
28014
28014-70020 Shaft Sub-Assy, Planet Carrier[09.1990 - 08.1995] 4AF#..AE95 |
28014-70020 |
US $23.15 |
||
|
28014A
|
28014A
90099-10180
Bush Or Bearing, Planet Carrier Shaft
[09.1990 - 08.1995] 4AF#..AE95 |
90099-10180 |
— | ||
|
28100
|
28100
28100-16070 Starter Assy[09.1990 - 06.1991] 4AF#..AE95..5F 12V 0.8KW |
28100-16070 |
US $931.84 |
||
| replacement | |||||
|
28100
|
28100
28100-16071
Starter Assy
[09.1990 - 06.1991] 4AF#..AE95..5F 12V 0.8KW |
28100-16071 |
— | ||
|
28100
|
28100
28100-16071
Starter Assy
[06.1991 - 08.1992] 4AF#..AE95..5F 12V 0.8KW |
28100-16071 |
— | ||
|
28110
|
28110
28110-16070 Housing Assy, Starter Drive[09.1990 - 06.1991] 4AF#..AE95..5F |
28110-16070 |
US $94.64 |
||
| replacement | |||||
|
28110
|
28110
28110-16071 Housing Assy, Starter Drive[09.1990 - 06.1991] 4AF#..AE95..5F |
28110-16071 |
US $96.10 |
||
|
28110
|
28110
28110-16071 Housing Assy, Starter Drive[06.1991 - 08.1992] 4AF#..AE95..5F |
28110-16071 |
US $96.10 |
||
|
28110A
|
28110A
90099-10182
Bearing(For Starter Housing)
[09.1990 - 08.1995] 4AF#..AE95 |
90099-10182 |
— | ||
|
28113
|
28113
28113-16070 Lever, Starter Pinion Drive[09.1990 - 08.1995] 4AF#..AE95 |
28113-16070 |
US $12.41 |
||
|
28120
|
28120
28120-70020 Yoke Assy, Starter[09.1990 - 08.1995] 4AF#..AE95 |
28120-70020 |
from US $98.61 |
||
|
28130
|
28130
28130-16070
Frame Assy, Starter Commutator End
[09.1990 - 08.1995] 4AF#..AE95 |
28130-16070 |
— | ||
|
28130C
|
28130C
90099-10183
Bearing, Starter Flange
[09.1990 - 08.1995] 4AF#..AE95 |
90099-10183 |
— | ||
|
28140
|
28140
28140-70020 Holder Assy, Starter Brush[09.1990 - 08.1995] 4AF#..AE95 |
28140-70020 |
from US $22.19 |
||
|
28142A
|
28142A
28142-70020 Brush, Starter[09.1990 - 08.1995] 4AF#..AE95 |
28142-70020 |
from US $2.81 |
||
|
28143
|
28143
28143-70020
Spring, Starter Brush
[09.1990 - 08.1995] 4AF#..AE95 |
28143-70020 |
— | ||
|
28150
|
28150
28150-10020
Switch Assy, Magnet Starter
[09.1990 - 10.1990] 4AF#..AE95 |
28150-10020 |
— | ||
| replacement | |||||
|
28150
|
28150
28150-10021 Switch Assy, Magnet Starter[09.1990 - 10.1990] 4AF#..AE95 |
28150-10021 |
US $101.34 |
||
|
28150
|
28150
28150-10021 Switch Assy, Magnet Starter[10.1990 - 08.1995] 4AF#..AE95 |
28150-10021 |
US $101.34 |
||
|
28160
|
28160
28160-70021 Armature Assy, Starter[09.1990 - 08.1995] 4AF#..AE95 |
28160-70021 |
US $131.04 |
||
|
28163
|
28163
28163-70020
Nut Or Collar, Pinion Stop, Starter
[09.1990 - 08.1995] 4AF#..AE95 |
28163-70020 |
— | ||
|
28177
|
28177
28177-70020
Plate(For Starter Armature)
[09.1990 - 08.1995] 4AF#..AE95 |
28177-70020 |
— | ||
|
28199A
|
28199A
28199-46080 Cover, Starter End Frame[10.1990 - 08.1995] 4AF#..AE95 |
28199-46080 |
US $2.97 |
||
|
28199A
|
28199A
28199-70020
Cover, Starter End Frame
[09.1990 - 10.1990] 4AF#..AE95 |
28199-70020 |
— | ||
| replacement | |||||
|
28199A
|
28199A
28199-46080 Cover, Starter End Frame[09.1990 - 10.1990] 4AF#..AE95 |
28199-46080 |
US $2.97 |
||
|
28255
|
28255
28255-70020
Gear, Planet
[09.1990 - 08.1995] 4AF#..AE95 |
28255-70020 |
— | ||
|
28256
|
28256
28256-70020
Gear, Starter Internal
[09.1990 - 08.1995] 4AF#..AE95 |
28256-70020 |
— | ||
|
2817615090
|
2817615090
28176-15090
Screw, Starter
|
28176-15090 |
— | ||
| replacement | |||||
|
2817615090
|
2817615090
28176-87701
Screw, Starter
|
28176-87701 |
— | ||
|
9009690030
|
9009690030
90096-90030
Ring, Snap, Starter Clutch Housing Disc
|
90096-90030 |
— | ||
|
9009901538
|
9009901538
90099-01538
New Genuine Part
|
90099-01538 |
— | ||
|
9009901539
|
9009901539
90099-01539
New Genuine Part
|
90099-01539 |
— | ||
|
9009901542
|
9009901542
90099-01542
New Genuine Part
|
90099-01542 |
— | ||
|
9009904373
|
9009904373
90099-04373
BOLTTHROUGH
|
90099-04373 |
— | ||
|
9009905178
|
9009905178
90099-05178
New Genuine Part
|
90099-05178 |
— | ||
|
9009907124
|
9009907124
90099-07124
Bearing(For Starter Housing)
|
90099-07124 |
— | ||
|
9009912405
|
9009912405
90099-12405
New Genuine Part
|
90099-12405 |
— | ||
|
9009914092
|
9009914092
90099-14092
Ring, O(For Starter Yoke)
|
90099-14092 |
— | ||
|
9011910466
|
9011910466
90119-10466
Bolt(For Transaxle & Engine Setting)
|
90119-10466 |
— | ||
| replacement | |||||
|
9011910466
|
9011910466
91612-61050 Bolt(For Transaxle & Engine Setting) |
91612-61050 |
from US $1.33 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
