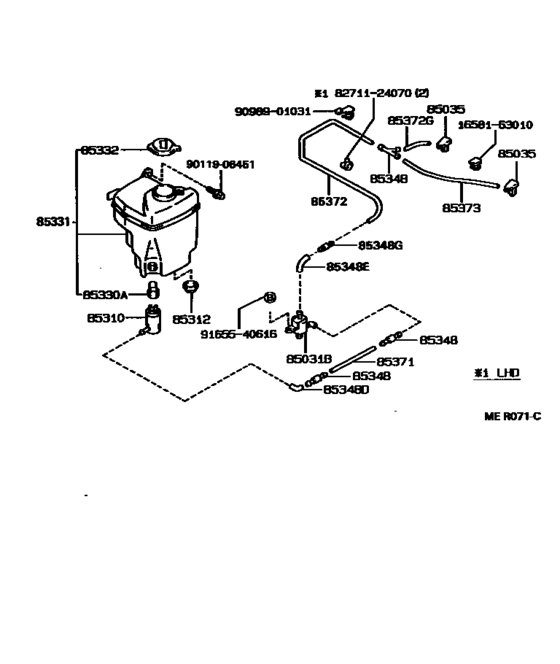

Windshield Washer ([09.1990 - ] (9009- )) Diagram Toyota COROLLA
- Year
- 1990 - 1995
- Sales region
- General
- Frame
- AE95
- grade
- XL
- body
- WG
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA WAGON
- From
- 09.1990
- To
- 08.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla Wagon
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85031B
|
85031B
85031-12121 Valve Sub-Assy, Washer[09.1990 - 08.1995] AE95 |
85031-12121 |
US $51.68 |
||
|
85035
|
85035
85035-12290
Nozzle Sub-Assy, Washer
[09.1990 - 08.1993] AE95..LHD |
85035-12290 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-12050 Nozzle Sub-Assy, Washer[09.1990 - 08.1993] AE95..LHD |
85381-12050 |
from US $17.28 |
||
|
85035
|
85035
85035-12410
Nozzle Sub-Assy, Washer
[08.1993 - 08.1995] AE95..LHD |
85035-12410 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-12050 Nozzle Sub-Assy, Washer[08.1993 - 08.1995] AE95..LHD |
85381-12050 |
from US $17.28 |
||
|
85310
|
85310
85310-22080 Motor And Pump Assy, Windshield Washer[09.1990 - 08.1995] AE95 |
85310-22080 |
from US $49.97 |
||
|
85312
|
85312
85312-12650
Packing, Windshield Washer Tank
[09.1990 - 08.1995] AE95 |
85312-12650 |
— | ||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[09.1990 - 08.1995] AE95 |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[09.1990 - 08.1995] AE95 |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[09.1990 - 08.1995] AE95 |
90068-32002 |
US $7.46 |
||
|
85331
|
85331
85331-12660
Jar Assy, Windshield Washer
[09.1990 - 08.1995] AE95 |
85331-12660 |
— | ||
|
85331
|
85331
85331-12720
Jar Assy, Windshield Washer
[09.1990 - 08.1995] AE95..GEN W(PRE AIR CLEANER) |
85331-12720 |
— | ||
|
85332
|
85332
85316-34040 Cap Assy, Windshield Washer[10.1993 - 08.1995] AE95 |
85316-34040 |
US $3.14 |
||
|
85332
|
85332
85332-12660
Cap, Windshield Washer Jar
[09.1990 - 10.1993] AE95 |
85332-12660 |
— | ||
| replacement | |||||
|
85332
|
85332
85316-34040 Cap Assy, Windshield Washer[09.1990 - 10.1993] AE95 |
85316-34040 |
US $3.14 |
||
|
85348
|
85348
85348-12250 Joint, Windshield Washer Hose, No.1[09.1990 - 08.1995] AE95 3-WAY |
85348-12250 |
from US $0.55 |
||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[09.1990 - 08.1995] AE95 2-WAY |
85349-89122 |
from US $1.25 |
||
|
85348D
|
85348D
85355-14481 Joint, Windshield Washer Elbow, No.1[09.1990 - 08.1995] AE95 |
85355-14481 |
US $0.98 |
||
|
85348E
|
85348E
85355-14481 Joint, Windshield Washer Elbow, No.1[09.1990 - 08.1995] AE95 |
85355-14481 |
US $0.98 |
||
|
85348G
|
85348G
85349-89122 Valve Sub-Assy, Washer[09.1990 - 08.1995] AE95 |
85349-89122 |
from US $1.25 |
||
|
85371
|
85371
90446-07001 Hose, Windshield Washer (From Motor To Joint)[09.1990 - 08.1995] AE95 |
90446-07001 |
from US $2.10 |
||
|
85372
|
85372
85343-12420
Hose, Windshield Washer (From Joint To Joint), No.1
[09.1990 - 08.1995] AE95 L=530 |
85343-12420 |
— | ||
|
85372G
|
85372G
90099-33080 Hose, Windshield Washer (From Motor To Joint)[09.1990 - 08.1995] AE95..LHD L=1450; AE95..RHD L=1450 |
90099-33080 |
from US $8.31 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[09.1990 - 08.1995] AE95 L=1450 |
90099-33080 |
from US $8.31 |
||
|
1658163010
|
1658163010
16581-63010 Clamp, Hose(for Water Hose) |
16581-63010 |
US $4.16 |
||
|
8271124070
|
8271124070
82711-24070 Clamp(For Hood Lock Control Cable) |
82711-24070 |
US $3.52 |
||
|
9011906451
|
9011906451
90119-06451 BOLT WWASHER |
90119-06451 |
from US $0.78 |
||
|
9098901031
|
9098901031
90989-01031 New Genuine Part |
90989-01031 |
US $3.64 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
