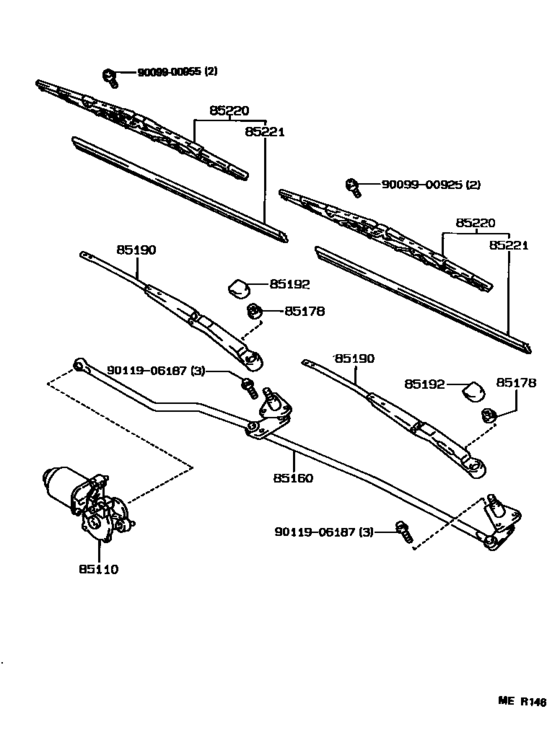

Windshield Wiper ([09.1990 - ] (9009- )LHD) Diagram Toyota COROLLA
- Year
- 1990 - 1995
- Sales region
- General
- Frame
- AE95
- grade
- XL
- body
- WG
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA WAGON
- From
- 09.1990
- To
- 08.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla Wagon
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-12632 Motor Assy, Windshield Wiper[09.1990 - 08.1995] AE95..LHD |
85110-12632 |
US $349.44 |
||
| replacement | |||||
|
85110
|
85110
85110-12722 Motor Assy, Windshield WiperWINDSHIELD WIPER [09.1990 - 08.1995] AE95..LHD |
85110-12722 |
US $365.46 |
||
|
85160
|
85160
85160-12491 Link Assy, Windshield WiperWINDSHIELD WIPER [09.1990 - 08.1995] AE95..LHD |
85160-12491 |
US $145.60 |
||
|
85178
|
85178
90179-08113 Nut (For Front Wiper Arm Setting)[09.1990 - 08.1995] AE95 |
90179-08113 |
from US $1.92 |
||
|
85190
|
85190
85190-12811 Arm Assy, Windshield WiperWINDSHIELD WIPER [09.1990 - 08.1995] AE95..LHD LH |
85190-12811 |
US $56.64 |
||
|
85190
|
85190
85210-12251
Arm Assy, Windshield Wiper
[09.1990 - 08.1995] AE95..LHD RH |
85210-12251 |
— | ||
|
85192
|
85192
85192-12800 Cover, Windshield Wiper Arm[09.1990 - 08.1991] AE95 |
85192-12800 |
from US $2.15 |
||
| replacement | |||||
|
85192
|
85192
85292-12020 Cover, Windshield Wiper Arm[09.1990 - 08.1991] AE95 |
85292-12020 |
from US $1.52 |
||
|
85192
|
85192
85292-12020 Cover, Windshield Wiper Arm[08.1991 - 08.1995] AE95 PLANT NO.B11 |
85292-12020 |
from US $1.52 |
||
|
85220
|
85220
85220-16880 Blade Assy, Windshield WiperWINDSHIELD WIPER [09.1990 - 08.1995] AE95..LHD RH |
85220-16880 |
US $36.55 |
||
| replacement | |||||
|
85220
|
85220
85220-16640 Blade Assy, Windshield WiperWINDSHIELD WIPER [09.1990 - 08.1995] AE95..LHD RH |
85220-16640 |
US $36.69 |
||
|
85220
|
85220
85220-32860 Blade Assy, Windshield WiperWINDSHIELD WIPER [09.1990 - 08.1995] AE95..LHD LH |
85220-32860 |
US $44.26 |
||
| replacement | |||||
|
85220
|
85220
85220-3A050 Blade Assy, Windshield WiperWINDSHIELD WIPER [09.1990 - 08.1995] AE95..LHD LH |
85220-3A050 |
US $30.23 |
||
|
85221
|
85221
85221-30100
Blade, Windshield Wiper
[09.1990 - 08.1995] AE95..LHD RH |
85221-30100 |
— | ||
| replacement | |||||
|
85221
|
85221
85214-24H90 Blade, Rear Wiper[09.1990 - 08.1995] AE95..LHD RH |
85214-24H90 |
from US $12.59 |
||
|
85221
|
85221
85221-32050
Blade, Windshield Wiper
[09.1990 - 08.1995] AE95..LHD LH |
85221-32050 |
— | ||
| replacement | |||||
|
85221
|
85221
85214-24H90 Blade, Rear Wiper[09.1990 - 08.1995] AE95..LHD LH |
85214-24H90 |
from US $12.59 |
||
|
9009900925
|
9009900925
90099-00925 SCREW |
90099-00925 |
US $1.46 |
||
|
9009900955
|
9009900955
90099-00955 New Genuine Part |
90099-00955 |
US $2.88 |
||
|
9011906187
|
9011906187
90119-06187
New Genuine Part
|
90119-06187 |
— | ||
| replacement | |||||
|
9011906187
|
9011906187
90119-06490 BOLT W-WASHER |
90119-06490 |
from US $1.40 |
||
