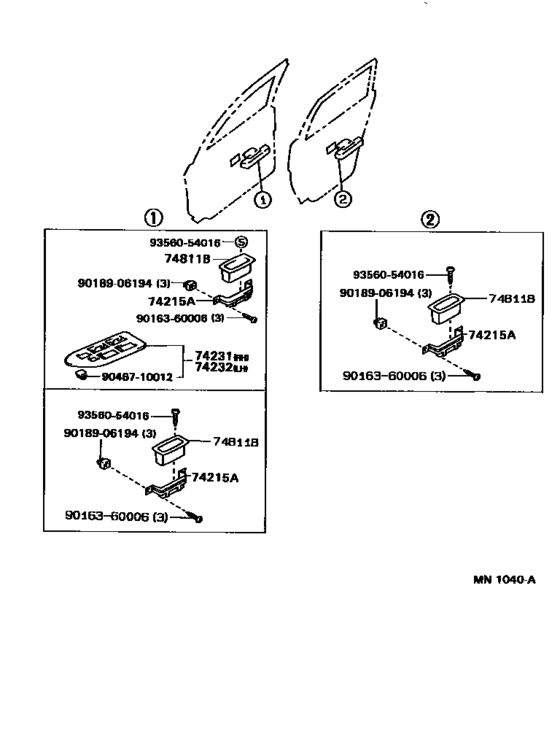

Armrest & Visor ([09.1990 - ] (9009- )) Diagram Toyota COROLLA
- Year
- 1990 - 1992
- Sales region
- Europe
- Frame
- AE95
- grade
- XL
- body
- WG
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- CBR
- Model
- COROLLA WAGON
- From
- 09.1990
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla Wagon
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74215A
|
74215A
74215-12020 Base, Door Armrest Rh[09.1990 - 08.1995] AE95 W(POWER WINDOW),RH |
74215-12020 |
US $28.83 |
||
|
74215A
|
74215A
74215-12040 Base, Door Armrest Rh[09.1990 - 08.1995] AE95 W(POWER WINDOW),LH |
74215-12040 |
US $32.76 |
||
|
74231
|
74231
74231-12070-03
Panel, Front Armrest Base, Upper Rh
[09.1990 - 08.1995] AE95..LHD SHADOW GRAY,TRIM1# |
74231-12070-03 |
— | ||
|
74231
|
74231
74231-12070-04 Panel, Front Armrest Base, Upper RhFRONT ARMREST BASE, UPPER RH [09.1990 - 08.1995] AE95..LHD DARK BLUE,TRIM8# |
74231-12070-04 |
US $27.52 |
||
|
74232
|
74232
74232-12060-B1
Panel, Front Armrest Base, Upper Lh
[09.1990 - 08.1995] AE95..LHD SHADOW GRAY,TRIM1# |
74232-12060-B1 |
— | ||
|
74232
|
74232
74232-12060-J0 Panel, Front Armrest Base, Upper LhFRONT ARMREST BASE, UPPER LH [09.1990 - 08.1995] AE95..LHD DARK BLUE,TRIM8# |
74232-12060-J0 |
US $24.75 |
||
|
74811B
|
74811B
74811-12040-03
Handle, Door Pull
[09.1990 - 08.1995] AE95 SHADOW GRAY,TRIM1# |
74811-12040-03 |
— | ||
| replacement | |||||
|
74811B
|
74811B
74811-12040-B0
Pull Assy, Door, Inside
[09.1990 - 08.1995] AE95 SHADOW GRAY,TRIM1# |
74811-12040-B0 |
— | ||
|
74811B
|
74811B
74811-12040-04 Handle, Door Pull[09.1990 - 08.1995] AE95 DARK BLUE,TRIM8# |
74811-12040-04 |
US $6.41 |
||
|
9016360006
|
9016360006
90163-60006 New Genuine Part |
90163-60006 |
US $1.60 |
||
|
9018906194
|
9018906194
90189-06194 New Genuine Part |
90189-06194 |
US $1.75 |
||
|
9046710012
|
9046710012
90467-10012 CLIP |
90467-10012 |
US $1.05 |
||
|
9356054016
|
9356054016
93560-54016 SCREW |
93560-54016 |
from US $0.96 |
||
