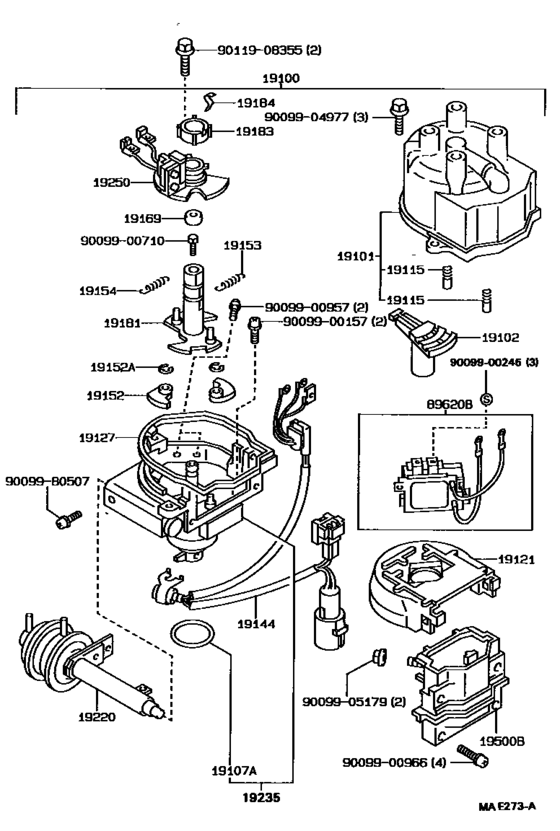

Distributor ([09.1990 - 05.1992] (9009-9205)4AF) Diagram Toyota COROLLA
- Year
- 1990 - 1992
- Sales region
- Europe
- Frame
- AE95
- grade
- XL
- body
- WG
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- CBR
- Model
- COROLLA WAGON
- From
- 09.1990
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla Wagon
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100
|
19100
19020-16090 Distributor Assy[09.1990 - 05.1992] 4AF..AE95 |
19020-16090 |
US $1,236.14 |
||
| replacement | |||||
|
19100
|
19100
19020-16100 Distributor Assy[09.1990 - 05.1992] 4AF..AE95 |
19020-16100 |
US $1,333.70 |
||
|
19101
|
19101
19101-15120
Cap Sub-Assy, Distributor
[09.1990 - 05.1992] 4AF..AE95 |
19101-15120 |
— | ||
|
19102
|
19102
19102-11031
Rotor Sub-Assy, Distributor
[09.1990 - 08.1995] 4AF#..AE95 |
19102-11031 |
— | ||
| replacement | |||||
|
19102
|
19102
19102-16010 Rotor Sub-Assy, Distributor[09.1990 - 08.1995] 4AF#..AE95 |
19102-16010 |
from US $8.96 |
||
|
19107A
|
19107A
90099-14091 O-Ring, Distributor Housing[03.1991 - 10.1994] 4AF#..AE95 |
90099-14091 |
from US $3.32 |
||
|
19107A
|
19107A
96711-35030 Ring, O, Distributor Housing[09.1990 - 03.1991] 4AF#..AE95 |
96711-35030 |
from US $4.48 |
||
|
19115
|
19115
19115-63010 Piece, Distributor Cap, Center[09.1990 - 05.1992] 4AF..AE95 |
19115-63010 |
from US $1.40 |
||
|
19121
|
19121
19121-11080 Cover, Dust Proof[09.1990 - 05.1992] 4AF..AE95 |
19121-11080 |
from US $4.02 |
||
|
19127
|
19127
19127-15120 Packing, Dust Proof[09.1990 - 05.1992] 4AF..AE95 |
19127-15120 |
from US $3.43 |
||
|
19144
|
19144
19144-16090
Lead, Distributor Breaker
[09.1990 - 05.1992] 4AF..AE95 |
19144-16090 |
— | ||
|
19152
|
19152
19152-15160 Weight, Governor[09.1990 - 05.1992] 4AF..AE95 |
19152-15160 |
US $12.52 |
||
|
19152A
|
19152A
90099-07122
Ring, Snap(For Governor Weight)
[09.1990 - 05.1992] 4AF..AE95 |
90099-07122 |
— | ||
|
19153
|
19153
19153-16090 Spring, Governor, AGOVERNOR, A [09.1990 - 05.1992] 4AF..AE95 |
19153-16090 |
US $5.39 |
||
|
19154
|
19154
19154-16090 Spring, Governor, BGOVERNOR, B [09.1990 - 05.1992] 4AF..AE95 |
19154-16090 |
US $5.39 |
||
|
19169
|
19169
19169-63011
Stopper, Cam Grease
[09.1990 - 05.1992] 4AF..AE95 |
19169-63011 |
— | ||
|
19181
|
19181
19181-16100
Rotor, Distributor, Signal
[09.1990 - 05.1992] 4AF..AE95 |
19181-16100 |
— | ||
| replacement | |||||
|
19181
|
19181
19181-16250
Rotor, Distributor, Signal
[09.1990 - 05.1992] 4AF..AE95 |
19181-16250 |
— | ||
|
19183
|
19183
19183-15010
Rotor, Signal
[09.1990 - 05.1992] 4AF..AE95 |
19183-15010 |
— | ||
|
19184
|
19184
19184-63010
Spring, Rotor Set
[09.1990 - 05.1992] 4AF..AE95 |
19184-63010 |
— | ||
|
19220
|
19220
19220-16230 Advancer Assy, Vacuum, DistributorVACUUM, DISTRIBUTOR [09.1990 - 05.1992] 4AF..AE95 |
19220-16230 |
US $96.10 |
||
|
19235
|
19235
19235-16090 Housing, Distributor[09.1990 - 05.1992] 4AF..AE95 |
19235-16090 |
US $187.82 |
||
|
19250
|
19250
19251-16100 Generator Assy, Signal[09.1990 - 05.1992] 4AF..AE95 |
19251-16100 |
US $171.23 |
||
|
19500B
|
19500B
90919-02164 Coil Assy, Ignition[09.1990 - 05.1992] 4AF..AE95 |
90919-02164 |
from US $121.10 |
||
|
89620B
|
89620B
89620-10120 Igniter[09.1990 - 05.1992] AE95..CBR |
89620-10120 |
US $342.45 |
||
|
9009900157
|
9009900157
90099-00157
Bush, Commutator End Frame
|
90099-00157 |
— | ||
|
9009900245
|
9009900245
90099-00245
New Genuine Part
|
90099-00245 |
— | ||
|
9009900710
|
9009900710
90099-00710
New Genuine Part
|
90099-00710 |
— | ||
|
9009900957
|
9009900957
90099-00957
New Genuine Part
|
90099-00957 |
— | ||
|
9009900966
|
9009900966
90099-00966
New Genuine Part
|
90099-00966 |
— | ||
|
9009904977
|
9009904977
90099-04977 BOLT |
90099-04977 |
from US $1.46 |
||
|
9009905179
|
9009905179
90099-05179
New Genuine Part
|
90099-05179 |
— | ||
|
9009980507
|
9009980507
90099-80507
New Genuine Part
|
90099-80507 |
— | ||
|
9011908355
|
9011908355
90119-08355 Bolt |
90119-08355 |
US $3.04 |
||
