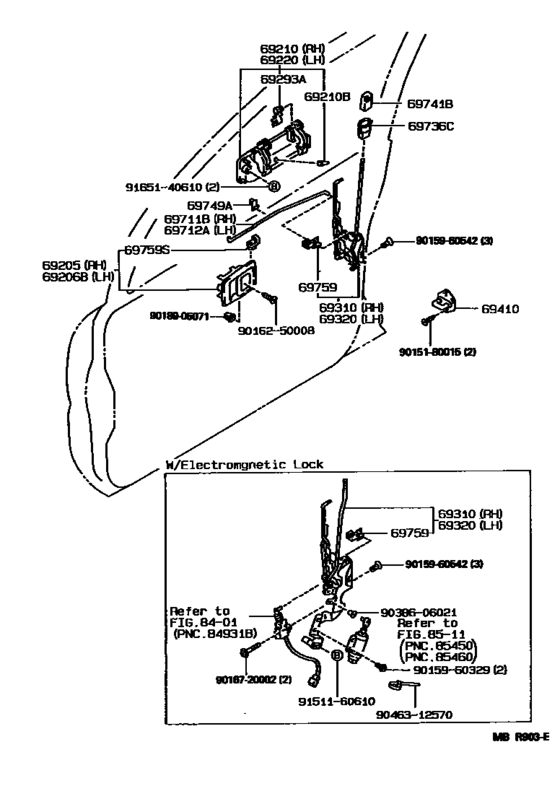

Front Door Lock & Handle ([09.1990 - ] (9009- )) Diagram Toyota COROLLA
- Year
- 1990 - 1992
- Sales region
- Europe
- Frame
- AE95
- grade
- XL
- body
- WG
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- CBR
- Model
- COROLLA WAGON
- From
- 09.1990
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla Wagon
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69205
|
69205
69205-12120-03 Handle Sub-Assy, Front Door Inside, Rh[09.1990 - 08.1995] AE95 SHADOW GRAY,TRIM1# |
69205-12120-03 |
US $27.08 |
||
|
69205
|
69205
69205-12120-04 Handle Sub-Assy, Front Door Inside, Rh[09.1990 - 08.1995] AE95 BLUE,TRIM8# |
69205-12120-04 |
US $27.08 |
||
| replacement | |||||
|
69205
|
69205
69205-12120-03 Handle Sub-Assy, Front Door Inside, Rh[09.1990 - 08.1995] AE95 BLUE,TRIM8# |
69205-12120-03 |
US $27.08 |
||
|
69206B
|
69206B
69206-12120-03 Handle Sub-Assy, Rear Door Inside, Rh[09.1990 - 08.1995] AE95 SHADOW GRAY,TRIM1# |
69206-12120-03 |
US $27.08 |
||
|
69206B
|
69206B
69206-12120-04 Handle Sub-Assy, Rear Door Inside, Rh[09.1990 - 08.1995] AE95 BLUE,TRIM8# |
69206-12120-04 |
US $27.08 |
||
| replacement | |||||
|
69206B
|
69206B
69206-12120-03 Handle Sub-Assy, Rear Door Inside, Rh[09.1990 - 08.1995] AE95 BLUE,TRIM8# |
69206-12120-03 |
US $27.08 |
||
|
69210
|
69210
69210-12110 Handle Assy, Front Door, Outside Rh[09.1990 - 08.1995] AE95 |
69210-12110 |
US $98.80 |
||
|
69210B
|
69210B
90541-04014 Cushion, Console Box[09.1990 - 08.1995] AE95 |
90541-04014 |
from US $1.13 |
||
|
69220
|
69220
69220-12110 Handle Assy, Front Door Outside, Lh[09.1990 - 08.1995] AE95 |
69220-12110 |
US $98.80 |
||
|
69293A
|
69293A
69293-12030 Snap, Front Door Outside Handle[09.1990 - 08.1995] AE95 RH |
69293-12030 |
from US $2.09 |
||
|
69293A
|
69293A
69293-12040 Snap, Front Door Outside Handle[09.1990 - 08.1995] AE95 LH |
69293-12040 |
from US $2 |
||
|
69310
|
69310
69310-12261 Lock Assy, Front Door, RhFRONT DOOR, RH [09.1990 - 08.1995] AE95..LHD W(ELECTROMAGNETIC LOCK) |
69310-12261 |
US $116.48 |
||
|
69310
|
69310
69310-12371 Lock Assy, Front Door, RhFRONT DOOR, RH [09.1990 - 08.1995] AE95 |
69310-12371 |
US $103.38 |
||
|
69320
|
69320
69320-12391 Lock Assy, Front Door, LhFRONT DOOR, LH [09.1990 - 08.1995] AE95 |
69320-12391 |
US $103.38 |
||
|
69320
|
69320
69320-12401 Lock Assy, Front Door, LhFRONT DOOR, LH [09.1990 - 08.1995] AE95..LHD W(ELECTROMAGNETIC LOCK) |
69320-12401 |
US $116.48 |
||
|
69410
|
69410
69410-87001 Plate Assy, Front Door Lock Striker[09.1990 - 08.1995] AE95 |
69410-87001 |
US $11.36 |
||
| replacement | |||||
|
69410
|
69410
69410-AA020 Plate Assy, Front Door Lock Striker[09.1990 - 08.1995] AE95 |
69410-AA020 |
US $37.29 |
||
|
69711B
|
69711B
69711-12100 Link, Front Door Lock Remote Control, Rh[09.1990 - 08.1995] AE95 |
69711-12100 |
US $7.72 |
||
|
69712A
|
69712A
69712-12110 Link, Front Door Lock Remote Control, Lh[09.1990 - 08.1995] AE95 |
69712-12110 |
US $7.72 |
||
|
69736C
|
69736C
69736-20090
Guide, Front Door Locking Link
[09.1990 - 08.1995] AE95 |
69736-20090 |
— | ||
| replacement | |||||
|
69736C
|
69736C
69736-12030
Guide, Front Door Lock Link
[09.1990 - 08.1995] AE95 |
69736-12030 |
— | ||
|
69741B
|
69741B
69741-90K00-43 Knob, Front Door Lock Control[09.1990 - 08.1995] AE95 GRAY,TRIM1# |
69741-90K00-43 |
US $4.80 |
||
| replacement | |||||
|
69741B
|
69741B
69741-90K00-C0 Knob, Front Door Lock Control[09.1990 - 08.1995] AE95 GRAY,TRIM1# |
69741-90K00-C0 |
US $3.52 |
||
|
69741B
|
69741B
69741-90K00-J0 Knob, Front Door Lock Control[09.1990 - 08.1995] AE95 DARK BLUE,TRIM8# |
69741-90K00-J0 |
US $4.80 |
||
| replacement | |||||
|
69741B
|
69741B
69741-90K00-C0 Knob, Front Door Lock Control[09.1990 - 08.1995] AE95 DARK BLUE,TRIM8# |
69741-90K00-C0 |
US $3.52 |
||
|
69749A
|
69749A
69749-20010 Clamp, Front Door Lock Link[09.1990 - 07.1994] AE95 |
69749-20010 |
from US $2.88 |
||
|
69759
|
69759
69759-20040 Snap, Auxiliary Catch Release Lever Control Link[09.1990 - 08.1995] AE95 LH |
69759-20040 |
US $4.32 |
||
|
69759
|
69759
69759-20050 Snap(For Rear Door Lock)[09.1990 - 08.1995] AE95 RH |
69759-20050 |
US $2.62 |
||
|
69759S
|
69759S
69759-20060 Snap(For Rear Door Inside Handle)[09.1990 - 08.1995] AE95 RH |
69759-20060 |
US $3.84 |
||
|
69759S
|
69759S
69759-20070 Snap(For Rear Door Inside Handle)[09.1990 - 08.1995] AE95 LH |
69759-20070 |
from US $2.24 |
||
|
9015180015
|
9015180015
90151-80015 SCREW CROSSRECESS |
90151-80015 |
US $1.46 |
||
| replacement | |||||
|
9015180015
|
9015180015
90148-80027 Screw Hex Lobular |
90148-80027 |
US $7.20 |
||
|
9015960329
|
9015960329
90159-60329 New Genuine Part |
90159-60329 |
US $1.60 |
||
|
9015960542
|
9015960542
90159-60542
SCREW WWASHER
|
90159-60542 |
— | ||
| replacement | |||||
|
9015960542
|
9015960542
90159-60349 SCREW WWASHER |
90159-60349 |
US $1.12 |
||
|
9016250008
|
9016250008
90162-50008 SCREW |
90162-50008 |
US $1.12 |
||
|
9016720002
|
9016720002
90167-20002 New Genuine Part |
90167-20002 |
US $1.02 |
||
|
9018905071
|
9018905071
90189-05071 New Genuine Part |
90189-05071 |
US $1.75 |
||
|
9038606021
|
9038606021
90386-06021 New Genuine Part |
90386-06021 |
US $2.62 |
||
|
9046312570
|
9046312570
90463-12570 CLAMP |
90463-12570 |
US $3.20 |
||
|
9151160610
|
9151160610
91511-60610
New Genuine Part
|
91511-60610 |
— | ||
| replacement | |||||
|
9151160610
|
9151160610
91511-B0610 BOLT FLANGE |
91511-B0610 |
US $1.76 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.56 |
||
