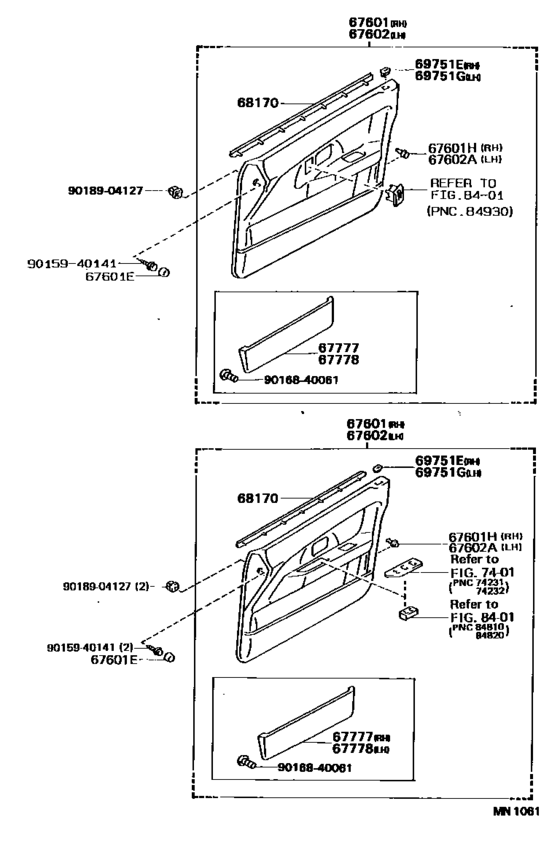

Front Door Panel & Glass ([09.1990 - ] (9009- )) Diagram Toyota COROLLA
- Year
- 1990 - 1992
- Sales region
- Europe
- Frame
- AE95
- grade
- XL
- body
- WG
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- CBR
- Model
- COROLLA WAGON
- From
- 09.1990
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla Wagon
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67601
|
67601
67610-1E410-03 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [09.1990 - 08.1995] AE95..XL,XLI SHADOW GRAY,TRIM1# |
67610-1E410-03 |
US $372.74 |
||
|
67601
|
67601
67610-1E410-04 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [09.1990 - 08.1995] AE95..XL,XLI DARK BLUE,TRIM8# |
67610-1E410-04 |
US $372.74 |
||
|
67601
|
67601
67610-1E440-03 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [09.1990 - 08.1995] AE95..XL,XLI W(*PW & *EL),SHADOW GRAY,TRIM1# |
67610-1E440-03 |
US $409.14 |
||
|
67601
|
67601
67610-1E440-04 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [09.1990 - 08.1995] AE95..XL,XLI W(*PW & *EL),DARK BLUE,TRIM8# |
67610-1E440-04 |
US $409.14 |
||
|
67601E
|
67601E
90339-10002-B3 Cap(For Front Door Trim Board)[09.1990 - 08.1995] AE95 SHADOW GRAY,TRIM1# |
90339-10002-B3 |
US $2.33 |
||
|
67601E
|
67601E
90339-10002-J1 Cap(For Front Door Trim Board)[09.1990 - 08.1995] AE95 DARK BLUE,TRIM8# |
90339-10002-J1 |
US $2.33 |
||
|
67601H
|
67601H
67771-12030 Retainer (For Quarter Inside Trim Board)[09.1990 - 08.1995] AE95..GL,GLI; AE95..XL,XLI W(*PW & *EL) |
67771-12030 |
US $3.04 |
||
|
67601H
|
67601H
67771-12050 Clip, Radiator Grille[09.1990 - 08.1995] AE95..XL,XLI RED |
67771-12050 |
from US $1.58 |
||
|
67601H
|
67601H
67771-89104 Clip (For Center Pillar Garnish Panel, Upper)[09.1990 - 08.1995] AE95..XL,XLI WHITE |
67771-89104 |
from US $2.36 |
||
|
67602
|
67602
67620-1H540-03 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [09.1990 - 08.1995] AE95..XL,XLI SHADOW GRAY,TRIM1# |
67620-1H540-03 |
US $372.74 |
||
|
67602
|
67602
67620-1H540-04 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [09.1990 - 08.1995] AE95..XL,XLI DARK BLUE,TRIM8# |
67620-1H540-04 |
US $372.74 |
||
|
67602
|
67602
67620-1H550-03 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [09.1990 - 08.1995] AE95..XL,XLI W(*EL),SHADOW GRAY,TRIM1# |
67620-1H550-03 |
US $372.74 |
||
|
67602
|
67602
67620-1H550-04 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [09.1990 - 08.1995] AE95..XL,XLI W(*EL),DARK BLUE,TRIM8# |
67620-1H550-04 |
US $372.74 |
||
|
67602
|
67602
67620-1H570-03 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [09.1990 - 05.1993] AE95..XL,XLI W(*PW & *EL),SHADOW GRAY,TRIM1# |
67620-1H570-03 |
US $499.41 |
||
| replacement | |||||
|
67602
|
67602
67620-1H571-B0 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [09.1990 - 05.1993] AE95..XL,XLI W(*PW & *EL),SHADOW GRAY,TRIM1# |
67620-1H571-B0 |
US $499.41 |
||
|
67602
|
67602
67620-1H570-04 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [09.1990 - 05.1993] AE95..XL,XLI W(*PW & *EL),DARK BLUE,TRIM8# |
67620-1H570-04 |
US $499.41 |
||
| replacement | |||||
|
67602
|
67602
67620-1H571-J0 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [09.1990 - 05.1993] AE95..XL,XLI W(*PW & *EL),DARK BLUE,TRIM8# |
67620-1H571-J0 |
US $499.41 |
||
|
67602A
|
67602A
67771-12030 Retainer (For Quarter Inside Trim Board)[09.1990 - 08.1995] AE95..GL,GLI; AE95..XL,XLI W(*PW & *EL) |
67771-12030 |
US $3.04 |
||
|
67602A
|
67602A
67771-12050 Clip, Radiator Grille[09.1990 - 08.1995] AE95..XL,XLI RED |
67771-12050 |
from US $1.58 |
||
|
67602A
|
67602A
67771-89104 Clip (For Center Pillar Garnish Panel, Upper)[09.1990 - 08.1995] AE95..XL,XLI WHITE |
67771-89104 |
from US $2.36 |
||
|
67777
|
67777
67777-12080-03 Pocket, Front Door Trim, Rh[09.1990 - 08.1995] AE95..XL,XLI SHADOW GRAY,TRIM1# |
67777-12080-03 |
US $51.54 |
||
|
67777
|
67777
67777-12080-04 Pocket, Front Door Trim, RhFRONT DOOR TRIM, RH [09.1990 - 08.1995] AE95..XL,XLI DARK BLUE,TRIM8# |
67777-12080-04 |
US $51.54 |
||
|
67778
|
67778
67777-12080-03 Pocket, Front Door Trim, Rh[09.1990 - 08.1995] AE95..XL,XLI SHADOW GRAY,TRIM1# |
67777-12080-03 |
US $51.54 |
||
|
67778
|
67778
67777-12080-04 Pocket, Front Door Trim, RhFRONT DOOR TRIM, RH [09.1990 - 08.1995] AE95..XL,XLI DARK BLUE,TRIM8# |
67777-12080-04 |
US $51.54 |
||
|
68170
|
68170
68171-12170
Weatherstrip Assy, Front Door Glass, Inner
[09.1990 - 08.1995] AE95..XL,XLI RH |
68171-12170 |
— | ||
|
68170
|
68170
68171-12180
Weatherstrip Assy, Front Door Glass, Inner
[09.1990 - 08.1995] AE95..GL,GLI RH; AE95..XL,XLI W(POWER WINDOW),RH |
68171-12180 |
— | ||
|
68170
|
68170
68172-12100
Weatherstrip Assy, Front Door Glass, Inner
[09.1990 - 08.1995] AE95..XL,XLI LH |
68172-12100 |
— | ||
|
68170
|
68170
68172-12110 Weatherstrip Assy, Front Door Glass, Inner[09.1990 - 08.1995] AE95..GL,GLI LH; AE95..XL,XLI W(POWER WINDOW),LH |
68172-12110 |
US $25.77 |
||
|
69751E
|
69751E
69751-12040-B1 Holder, Front Door Lock Control Knob[09.1990 - 08.1995] AE95 SHADOW GRAY,TRIM1# |
69751-12040-B1 |
US $3.67 |
||
|
69751E
|
69751E
69751-12040-J0 Holder, Door Locking Button Collar(For Front Door)[09.1990 - 08.1995] AE95 DARK BLUE,TRIM8# |
69751-12040-J0 |
US $3.49 |
||
|
69751G
|
69751G
69751-12040-B1 Holder, Front Door Lock Control Knob[09.1990 - 08.1995] AE95 SHADOW GRAY,TRIM1# |
69751-12040-B1 |
US $3.67 |
||
|
69751G
|
69751G
69751-12040-J0 Holder, Door Locking Button Collar(For Front Door)[09.1990 - 08.1995] AE95 DARK BLUE,TRIM8# |
69751-12040-J0 |
US $3.49 |
||
|
9015940141
|
9015940141
90159-40141 SCREW |
90159-40141 |
from US $1.54 |
||
|
9016840061
|
9016840061
90168-40061 SCREW |
90168-40061 |
from US $0.88 |
||
|
9018904127
|
9018904127
90189-04127 New Genuine Part |
90189-04127 |
US $1.05 |
||
