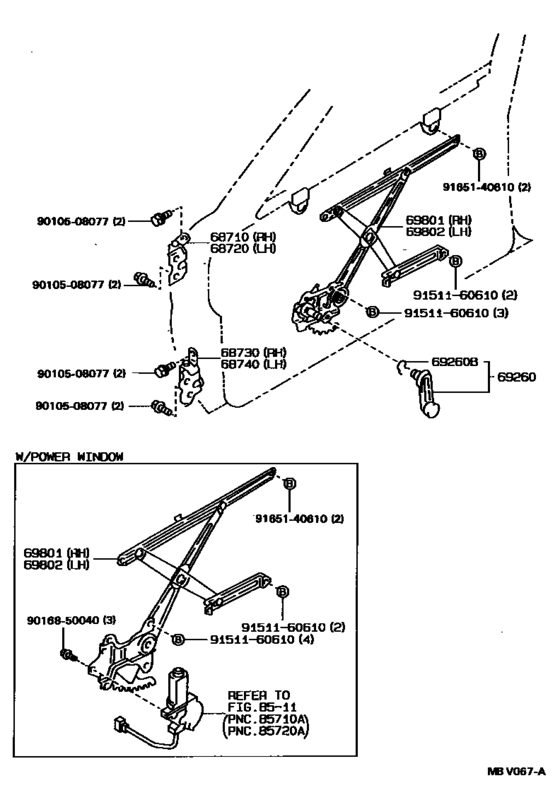

Front Door Window Regulator & Hinge ([09.1990 - ] (9009- )) Diagram Toyota COROLLA
- Year
- 1990 - 1992
- Sales region
- Europe
- Frame
- AE95
- grade
- XL
- body
- WG
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- CBR
- Model
- COROLLA WAGON
- From
- 09.1990
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla Wagon
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-12100
Hinge Assy, Front Door, Upper Rh
[09.1990 - 05.1992] AE95 |
68710-12100 |
— | ||
| replacement | |||||
|
68710
|
68710
68710-12110
Hinge Assy, Front Door, Upper Rh
[09.1990 - 05.1992] AE95 |
68710-12110 |
— | ||
|
68720
|
68720
68720-12100
Hinge Assy, Front Door, Upper Lh
[09.1990 - 05.1992] AE95 |
68720-12100 |
— | ||
| replacement | |||||
|
68720
|
68720
68720-12110
Hinge Assy, Front Door, Upper Lh
[09.1990 - 05.1992] AE95 |
68720-12110 |
— | ||
|
68730
|
68730
68730-12060 Hinge Assy, Front Door, Lower Rh[09.1990 - 08.1995] AE95 |
68730-12060 |
US $43.78 |
||
|
68740
|
68740
68740-12060 Hinge Assy, Front Door, Lower Lh[09.1990 - 08.1995] AE95 |
68740-12060 |
US $43.78 |
||
|
69260
|
69260
69260-12090-03 Handle Assy, Front Door Window RegulatorFRONT DOOR WINDOW REGULATOR [09.1990 - 08.1995] AE95 SHADOW GRAY,TRIM1# |
69260-12090-03 |
US $21.69 |
||
|
69260
|
69260
69260-12090-04 Handle Assy, Front Door Window RegulatorFRONT DOOR WINDOW REGULATOR [09.1990 - 08.1995] AE95 BLUE,TRIM8# |
69260-12090-04 |
US $21.69 |
||
| replacement | |||||
|
69260
|
69260
69260-12090-03 Handle Assy, Front Door Window RegulatorFRONT DOOR WINDOW REGULATOR [09.1990 - 08.1995] AE95 BLUE,TRIM8# |
69260-12090-03 |
US $21.69 |
||
|
69260B
|
69260B
90520-01005 Ring, Shaft Snap(For Front Door Window Regulator Handle)[09.1990 - 08.1995] AE95 |
90520-01005 |
from US $0.98 |
||
|
69801
|
69801
69801-12100
Regulator Sub-Assy, Front Door Window, Rh
[09.1990 - 08.1995] AE95 W(POWER WINDOW) |
69801-12100 |
— | ||
|
69801
|
69801
69810-12290
Regulator Sub-Assy, Front Door Window, Rh
[09.1990 - 08.1995] AE95 |
69810-12290 |
— | ||
|
69802
|
69802
69802-12100 Regulator Sub-Assy, Front Door Window, Lh[09.1990 - 08.1995] AE95 W(POWER WINDOW) |
69802-12100 |
US $97.55 |
||
|
69802
|
69802
69820-12290 Regulator Sub-Assy, Front Door Window, Lh[09.1990 - 08.1995] AE95 |
69820-12290 |
US $84.45 |
||
|
9010508077
|
9010508077
90105-08077 BOLT |
90105-08077 |
US $1.76 |
||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
US $1.12 |
||
|
9151160610
|
9151160610
91511-60610
New Genuine Part
|
91511-60610 |
— | ||
| replacement | |||||
|
9151160610
|
9151160610
91511-B0610 BOLT FLANGE |
91511-B0610 |
US $1.76 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.56 |
||
