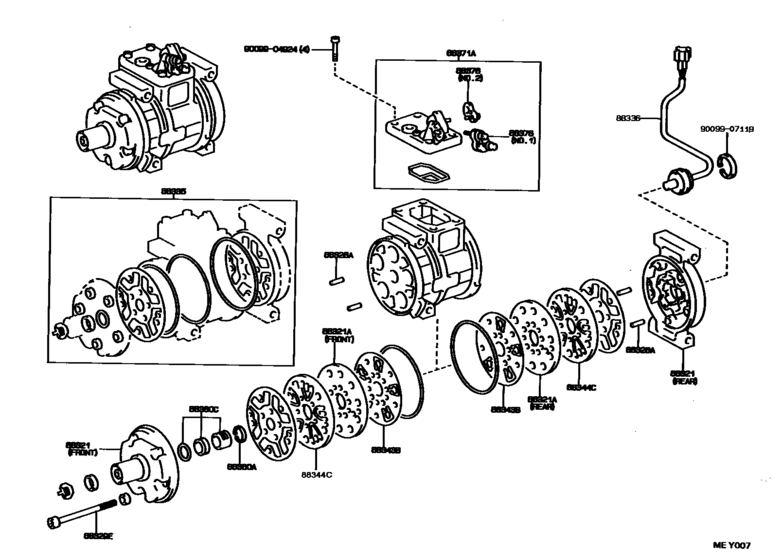

Heating & Air Conditioning - Compressor ([09.1990 - 05.1992] (9009-9205)LHD..CBR) Diagram Toyota COROLLA
- Year
- 1990 - 1992
- Sales region
- Europe
- Frame
- AE95
- grade
- XL
- body
- WG
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- CBR
- Model
- COROLLA WAGON
- From
- 09.1990
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla Wagon
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88321
|
88321
88321-14021
Head, Cooler Compressor Cylinder
[09.1990 - 05.1992] AE95..LHD..CBR FR |
88321-14021 |
— | ||
|
88321
|
88321
88322-14020
Head, Cooler Compressor Cylinder
[09.1990 - 05.1992] AE95..LHD..CBR RR |
88322-14020 |
— | ||
|
88321A
|
88321A
88341-14020
Plate Sub-Assy, Valve
[09.1990 - 05.1992] AE95..LHD..CBR FR |
88341-14020 |
— | ||
|
88321A
|
88321A
88342-14020
Plate Sub-Assy, Valve
[09.1990 - 05.1992] AE95..LHD..CBR RR |
88342-14020 |
— | ||
|
88328A
|
88328A
90099-08058
Pin, Cylinder Block
[09.1990 - 05.1992] AE95..LHD..CBR |
90099-08058 |
— | ||
|
88329E
|
88329E
90099-04370
Bolt, Compressor, No.1
[09.1990 - 05.1992] AE95..LHD..CBR |
90099-04370 |
— | ||
|
88335
|
88335
88335-14010
Gasket Kit, Overhaul
[09.1990 - 05.1992] AE95..LHD..CBR |
88335-14010 |
— | ||
| replacement | |||||
|
88335
|
88335
88335-2B030 Gasket Kit, Overhaul[09.1990 - 05.1992] AE95..LHD..CBR |
88335-2B030 |
from US $39.29 |
||
|
88336
|
88336
88336-12050
Sensor, Compressor
[09.1990 - 05.1992] AE95..LHD..CBR |
88336-12050 |
— | ||
|
88343B
|
88343B
88343-14020
Reed, Suction Valve
[09.1990 - 05.1992] AE95..LHD..CBR |
88343-14020 |
— | ||
|
88344C
|
88344C
88344-14020
Reed Sub-Assy, Valve
[09.1990 - 05.1992] AE95..LHD..CBR |
88344-14020 |
— | ||
|
88360A
|
88360A
90096-90022
Ring, Compressor Seal Plate Snap
[09.1990 - 05.1992] AE95..LHD..CBR |
90096-90022 |
— | ||
|
88360C
|
88360C
88360-14030
Seal Assy, Shaft
[09.1990 - 05.1992] AE95..LHD..CBR |
88360-14030 |
— | ||
| replacement | |||||
|
88360C
|
88360C
88360-2B020 Seal Assy, Shaft[09.1990 - 05.1992] AE95..LHD..CBR |
88360-2B020 |
US $68.84 |
||
|
88371A
|
88371A
88371-12350
Valve, Suction
[09.1990 - 05.1992] AE95..LHD..CBR LOW PULLEY TYPE |
88371-12350 |
— | ||
|
88371A
|
88371A
88371-12360
Valve, Suction
[09.1990 - 05.1992] AE95..LHD..CBR |
88371-12360 |
— | ||
|
88376
|
88376
88376-17020
Cap, Blind
[09.1990 - 05.1992] AE95..LHD..CBR NO.1 |
88376-17020 |
— | ||
|
88376
|
88376
88376-22020
Cap, Blind
[09.1990 - 05.1992] AE95..LHD..CBR NO.2 |
88376-22020 |
— | ||
|
9009904924
|
9009904924
90099-04924
Bolt, Service Valve
|
90099-04924 |
— | ||
|
9009907119
|
9009907119
90099-07119
Ring, Compressor Seal Plate Snap
|
90099-07119 |
— | ||
