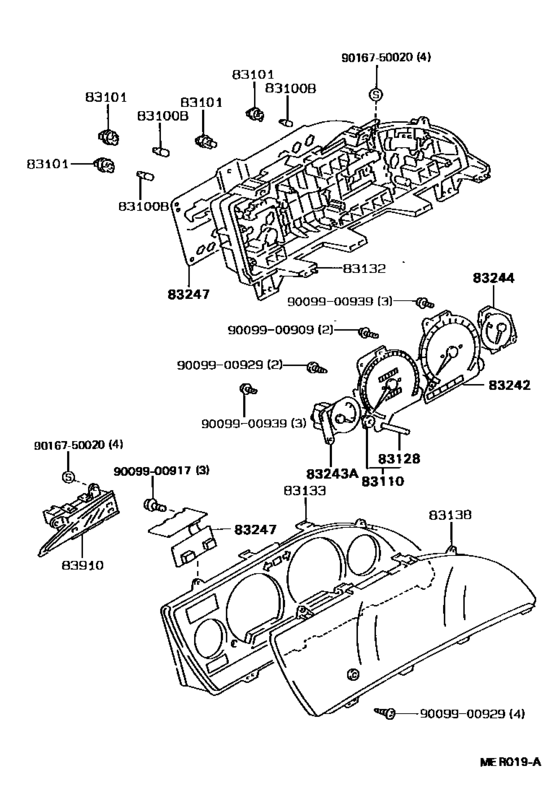

Meter ([09.1990 - ] (9009- )) Diagram Toyota COROLLA
- Year
- 1990 - 1992
- Sales region
- Europe
- Frame
- AE95
- grade
- XL
- body
- WG
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- CBR
- Model
- COROLLA WAGON
- From
- 09.1990
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla Wagon
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83109-12030 Bulb, Combination Meter, No.1[09.1990 - 08.1995] AE95 12V 3.4W,BLUE CAP |
83109-12030 |
US $1.92 |
||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[09.1990 - 05.1992] AE95..LHD..CBR 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.24 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[09.1990 - 08.1995] AE95 12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[09.1990 - 08.1995] AE95 12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[09.1990 - 08.1995] AE95 12V 3.4W BULB |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[09.1990 - 05.1992] AE95..LHD..CBR 12V 1.4W BULB |
83101-14040 |
US $3.02 |
||
|
83110
|
83110
83110-1E361 Speedometer Assy[09.1990 - 05.1992] AE95..LHD..CBR |
83110-1E361 |
US $353.81 |
||
| replacement | |||||
|
83110
|
83110
83110-1E411 Speedometer Assy[09.1990 - 05.1992] AE95..LHD..CBR |
83110-1E411 |
US $451.36 |
||
|
83128
|
83128
83128-14630
Knob, Trip Counter
[09.1990 - 08.1995] AE95 |
83128-14630 |
— | ||
|
83132
|
83132
83132-1A270
Case, Combination Meter
[09.1990 - 08.1995] AE95..LHD |
83132-1A270 |
— | ||
|
83133
|
83133
83133-13090
Plate, Combination Meter, No.1
[09.1990 - 05.1992] AE95..LHD..CBR |
83133-13090 |
— | ||
| replacement | |||||
|
83133
|
83133
83133-13110
Plate, Combination Meter, No.1
[09.1990 - 05.1992] AE95..LHD..CBR |
83133-13110 |
— | ||
|
83138
|
83138
83138-1A030
Glass, Speedometer
[09.1990 - 08.1995] AE95..LHD |
83138-1A030 |
— | ||
|
83242
|
83242
83242-1E051 Tachometer Assy, EngineENGINE [09.1990 - 08.1995] AE95..LHD |
83242-1E051 |
US $483.39 |
||
|
83243A
|
83243A
83243-1A251
Gauge Sub-Assy, Fuel Receiver
[09.1990 - 08.1995] AE95..LHD |
83243-1A251 |
— | ||
|
83244
|
83244
83244-1A671
Gauge Sub-Assy, Water Temperature Receiver
[09.1990 - 08.1995] AE95..LHD |
83244-1A671 |
— | ||
|
83247
|
83247
83247-13710
Plate, Meter Circuit
[09.1990 - 05.1992] AE95..LHD..CBR |
83247-13710 |
— | ||
|
83247
|
83247
83247-1E700
Plate Sub-Assy, Combination Meter Circuit, No.1
[09.1990 - 08.1995] AE95..LHD ED MONITER |
83247-1E700 |
— | ||
|
83910
|
83910
83910-12410 Clock Assy[09.1990 - 08.1995] AE95..LHD |
83910-12410 |
US $409.14 |
||
|
9009900909
|
9009900909
90099-00909
New Genuine Part
|
90099-00909 |
— | ||
|
9009900917
|
9009900917
90099-00917
New Genuine Part
|
90099-00917 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9009900939
|
9009900939
90099-00939 New Genuine Part |
90099-00939 |
US $1.89 |
||
|
9016750020
|
9016750020
90167-50020 SCREW PAN TAPPING |
90167-50020 |
US $1.92 |
||
