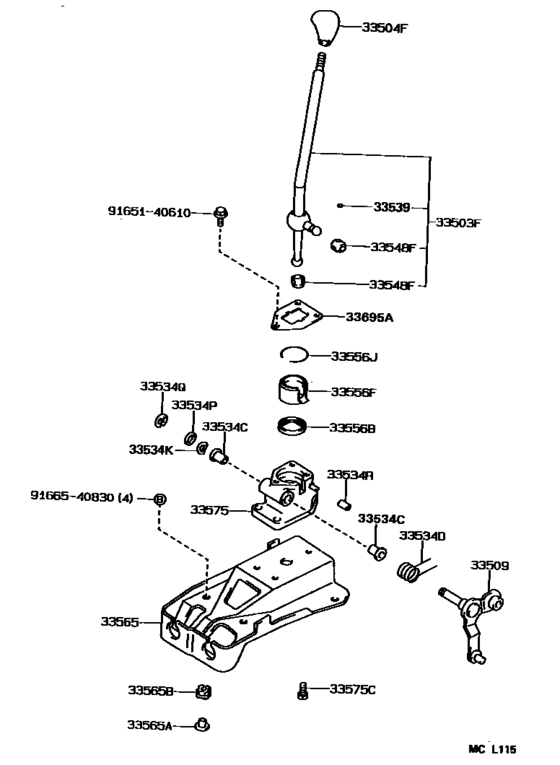

Shift Lever & Retainer ([09.1990 - 09.1991] (9009-9109)) Diagram Toyota COROLLA
- Year
- 1990 - 1992
- Sales region
- Europe
- Frame
- AE95
- grade
- XL
- body
- WG
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- CBR
- Model
- COROLLA WAGON
- From
- 09.1990
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla Wagon
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33503F
|
33503F
33503-12402 Lever Sub-Assy, Shift(For Floor Shift)SHIFT(FOR FLOOR SHIFT) [09.1990 - 09.1991] AE95..LHD |
33503-12402 |
US $38.58 |
||
|
33504F
|
33504F
33504-12180-C0 Knob Sub-Assy, Shift Lever[09.1991 - 08.1995] AE95 BLACK,TRIM1#,8# |
33504-12180-C0 |
US $51.25 |
||
| replacement | |||||
|
33504F
|
33504F
33504-12180-B7 Knob Sub-Assy, Shift Lever[09.1991 - 08.1995] AE95 BLACK,TRIM1#,8# |
33504-12180-B7 |
from US $36.33 |
||
|
33504F
|
33504F
33504-24010-11 Knob Sub-Assy, Shift Lever[09.1990 - 09.1991] AE95 NEW BLACK,TRIM1#,8# |
33504-24010-11 |
US $40.33 |
||
| replacement | |||||
|
33504F
|
33504F
33504-24010-C1 Knob Sub-Assy, Shift Lever (Black)[09.1990 - 09.1991] AE95 NEW BLACK,TRIM1#,8# |
33504-24010-C1 |
from US $28.42 |
||
|
33509
|
33509
33509-12071 Crank Sub-Assy, Selecting Bell, No.1[09.1990 - 09.1991] AE95 |
33509-12071 |
US $37.56 |
||
|
33534C
|
33534C
90386-12034 Bush (For Shift Lever Retainer)[09.1990 - 09.1991] AE95 |
90386-12034 |
US $1.76 |
||
|
33534D
|
33534D
90508-20084 Spring, Torsion (For Selecting Bellcrank No.1)[09.1990 - 09.1991] AE95 |
90508-20084 |
US $3.20 |
||
|
33534K
|
33534K
90206-12003 Washer, Wave (For Selecting Bellcrank No.1)[09.1990 - 09.1991] AE95 |
90206-12003 |
US $0.96 |
||
|
33534P
|
33534P
90201-12052 Washer, Plate (For Selecting Bellcrank No.1)[09.1990 - 09.1991] AE95 |
90201-12052 |
US $0.52 |
||
|
33534Q
|
33534Q
96160-00900 Ring, E(For Injection Pump Lever)[09.1990 - 09.1991] AE95 |
96160-00900 |
from US $1.44 |
||
|
33534R
|
33534R
90540-06029 Cushion (For Selecting Bellcrank No.1)[09.1990 - 09.1991] AE95 |
90540-06029 |
US $2.80 |
||
|
33539
|
33539
33539-12010 Cushion, Shift Lever Anti-Rattle[09.1990 - 09.1991] AE95 |
33539-12010 |
US $1.69 |
||
|
33548F
|
33548F
33548-12040 Bush, No.1, Shift Lever (For Floor Shift)[09.1990 - 09.1991] AE95 |
33548-12040 |
US $3.04 |
||
|
33556B
|
33556B
90385-34001 Bush (For Transmission Shift Lever Ball Seat)[09.1990 - 09.1991] AE95 |
90385-34001 |
US $3.84 |
||
|
33556F
|
33556F
33556-20020 Seat, Transmission Shift Lever Ball[09.1990 - 09.1991] AE95 |
33556-20020 |
from US $8.56 |
||
|
33556J
|
33556J
90520-36018 Ring, Snap (For Shift Lever)[09.1990 - 09.1991] AE95 |
90520-36018 |
US $1.49 |
||
|
33565
|
33565
33565-12030 Plate, Control Shift Lever Retainer[09.1990 - 09.1991] AE95 |
33565-12030 |
US $93.18 |
||
|
33565A
|
33565A
90389-08031 Bush, No.2 (For Shift Lever Plate)[09.1990 - 09.1991] AE95 |
90389-08031 |
US $2.80 |
||
|
33565B
|
33565B
90389-10020 Bush, No.2 (For Control Shift Lever Retainer Plate)[09.1990 - 09.1991] AE95 |
90389-10020 |
US $2.80 |
||
|
33575
|
33575
33575-12133 Retainer, Control Shift Lever (For Floor Shift)[09.1990 - 09.1991] AE95 |
33575-12133 |
US $53 |
||
|
33575C
|
33575C
90119-08622 Bolt (For Control Shift Lever Retainer)[09.1990 - 09.1991] AE95 |
90119-08622 |
US $2.04 |
||
|
33695A
|
33695A
33695-12031 Cover, Shift Lever Ball[09.1990 - 09.1991] AE95 |
33695-12031 |
US $3.93 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.56 |
||
|
9166540830
|
9166540830
91665-40830
New Genuine Part
|
91665-40830 |
— | ||
| replacement | |||||
|
9166540830
|
9166540830
91661-60830 Bolt |
91661-60830 |
from US $1.44 |
||
