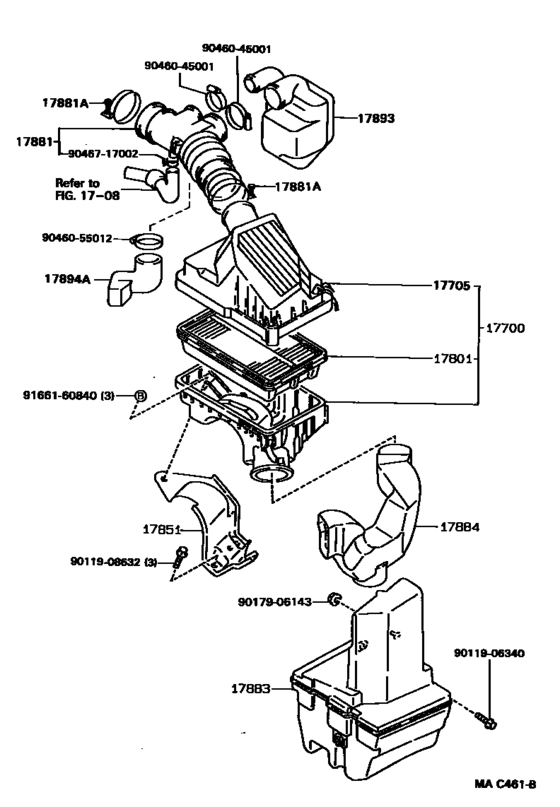

Air Cleaner ([09.1990 - ] (9009- )) Diagram Toyota COROLLA
- Year
- 1990 - 1992
- Sales region
- U.S.A.
- Frame
- AE95
- grade
- DX
- body
- WG
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- COROLLA WAGON
- From
- 09.1990
- To
- 08.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla Wagon
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-16680 Cleaner Assy, Air[09.1990 - 08.1993] 4AFE..AE95 |
17700-16680 |
US $407.68 |
||
|
17705
|
17705
17705-16360
Cap Sub-Assy, Air Cleaner
[09.1990 - 08.1993] 4AFE..AE95 |
17705-16360 |
— | ||
|
17801
|
17801
17801-74020 Element Sub-Assy, Air Cleaner Filter[09.1990 - 08.1993] 4AFE..AE95 |
17801-74020 |
from US $37.21 |
||
|
17851
|
17851
17851-15010 Bracket, Air Cleaner Support[09.1990 - 08.1993] 4AFE..AE95 |
17851-15010 |
US $39.02 |
||
|
17881
|
17881
17881-15160
Hose, Air Cleaner, No.1
[09.1990 - 08.1993] 4AFE..AE95 |
17881-15160 |
— | ||
|
17881A
|
17881A
90460-73005 Clamp(For Air Cleaner Hose, No.1)[09.1990 - 02.1993] 4AFE..AE95 |
90460-73005 |
US $6.84 |
||
| replacement | |||||
|
17881A
|
17881A
96111-10730 Clamp(For Air Cleaner Inlet, No.1)[09.1990 - 02.1993] 4AFE..AE95 |
96111-10730 |
US $2.56 |
||
|
17883
|
17883
17883-16041 Hose, Air Cleaner, No.3[09.1990 - 08.1993] 4AFE..AE95 |
17883-16041 |
US $66.54 |
||
|
17884
|
17884
17882-16100 Hose, Air Cleaner, No.4[09.1990 - 08.1993] 4AFE..AE95 |
17882-16100 |
US $26.30 |
||
|
17893
|
17893
17893-16060 Resonator, Intake AirINTAKE AIR [09.1990 - 08.1993] 4AFE..AE95 |
17893-16060 |
US $31.89 |
||
|
17894A
|
17894A
17894-16020 Bracket, Resonator[09.1990 - 08.1993] 4AFE..AE95 |
17894-16020 |
US $27.96 |
||
|
9011906340
|
9011906340
90119-06340 BOLT |
90119-06340 |
US $1.60 |
||
|
9011908632
|
9011908632
90119-08632 New Genuine Part |
90119-08632 |
US $2.04 |
||
| replacement | |||||
|
9011908632
|
9011908632
91621-40816 BOLTWWASHER |
91621-40816 |
from US $1.05 |
||
|
9017906143
|
9017906143
90179-06143 NUT |
90179-06143 |
from US $0.86 |
||
|
9046045001
|
9046045001
90460-45001 Clamp(For Air Cleaner Hose, No.1) |
90460-45001 |
US $1.49 |
||
|
9046055012
|
9046055012
90460-55012 Clamp(For Air Cleaner Hose, No.2) |
90460-55012 |
US $5.39 |
||
| replacement | |||||
|
9046055012
|
9046055012
90460-55003 Clamp Or Clip(For Air Hose, No.1) |
90460-55003 |
from US $4.32 |
||
|
9046717002
|
9046717002
90467-17002 Clip Or Clamp(For Ventilation Hose) |
90467-17002 |
US $4.66 |
||
| replacement | |||||
|
9046717002
|
9046717002
96134-51700 Clip Or Clamp(For Ventilation Hose) |
96134-51700 |
US $2.24 |
||
|
9166160840
|
9166160840
91661-60840 Bolt |
91661-60840 |
US $2.24 |
||
