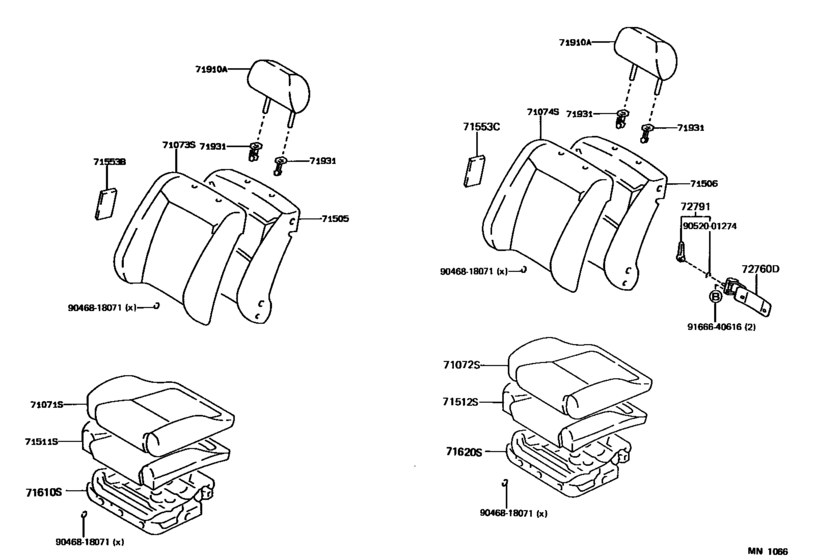

Front Seat & Seat Track ([09.1990 - ] (9009- )) Diagram Toyota COROLLA
- Year
- 1990 - 1992
- Sales region
- U.S.A.
- Frame
- AE95
- grade
- DX
- body
- WG
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- COROLLA WAGON
- From
- 09.1990
- To
- 08.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla Wagon
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71071S
|
71071S
71071-1H690-03
Cover, Front Seat Cushion, Rh(For Separate Type)
[09.1990 - 08.1992] AE95..DX..USA SHADOW GRAY,TRIM1# |
71071-1H690-03 |
— | ||
|
71071S
|
71071S
71071-1H690-04
Cover, Front Seat Cushion, Rh(For Separate Type)
[09.1990 - 08.1992] AE95..DX..USA DARK BLUE,TRIM8# |
71071-1H690-04 |
— | ||
|
71071S
|
71071S
71071-1H772-03
Cover, Front Seat Cushion, Rh(For Separate Type)
[09.1990 - 08.1992] AE95..DX..USA W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
71071-1H772-03 |
— | ||
|
71071S
|
71071S
71071-1H772-04
Cover, Front Seat Cushion, Rh(For Separate Type)
[09.1990 - 08.1992] AE95..DX..USA W(FULL FABRIC SEAT),DARK BLUE,TRIM8# |
71071-1H772-04 |
— | ||
|
71072S
|
71072S
71071-1H690-03
Cover, Front Seat Cushion, Rh(For Separate Type)
[09.1990 - 08.1992] AE95..DX..USA SHADOW GRAY,TRIM1# |
71071-1H690-03 |
— | ||
|
71072S
|
71072S
71071-1H690-04
Cover, Front Seat Cushion, Rh(For Separate Type)
[09.1990 - 08.1992] AE95..DX..USA DARK BLUE,TRIM8# |
71071-1H690-04 |
— | ||
|
71072S
|
71072S
71071-1H772-03
Cover, Front Seat Cushion, Rh(For Separate Type)
[09.1990 - 08.1992] AE95..DX..USA W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
71071-1H772-03 |
— | ||
|
71072S
|
71072S
71071-1H772-04
Cover, Front Seat Cushion, Rh(For Separate Type)
[09.1990 - 08.1992] AE95..DX..USA W(FULL FABRIC SEAT),DARK BLUE,TRIM8# |
71071-1H772-04 |
— | ||
|
71073S
|
71073S
71073-1H330-03
Cover, Front Seat Back, Rh(For Separate Type)
[09.1990 - 08.1992] AE95..DX..USA SHADOW GRAY,TRIM1# |
71073-1H330-03 |
— | ||
|
71073S
|
71073S
71073-1H330-04
Cover, Front Seat Back, Rh(For Separate Type)
[09.1990 - 08.1992] AE95..DX..USA DARK BLUE,TRIM8# |
71073-1H330-04 |
— | ||
|
71073S
|
71073S
71073-1H870-03
Cover, Front Seat Back, Rh(For Separate Type)
[09.1990 - 08.1992] AE95..DX..USA W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
71073-1H870-03 |
— | ||
|
71073S
|
71073S
71073-1H870-04
Cover, Front Seat Back, Rh(For Separate Type)
[09.1990 - 08.1992] AE95..DX..USA W(FULL FABRIC SEAT),DARK BLUE,TRIM8# |
71073-1H870-04 |
— | ||
|
71074S
|
71074S
71074-1E300-03
Cover, Front Seat Back, Lh(For Separate Type)
[09.1990 - 08.1992] AE95..DX..USA SHADOW GRAY,TRIM1# |
71074-1E300-03 |
— | ||
|
71074S
|
71074S
71074-1E300-04
Cover, Front Seat Back, Lh(For Separate Type)
[09.1990 - 08.1992] AE95..DX..USA DARK BLUE,TRIM8# |
71074-1E300-04 |
— | ||
|
71074S
|
71074S
71074-1E850-03
Cover, Front Seat Back, Lh(For Separate Type)
[09.1990 - 08.1992] AE95..DX..USA W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
71074-1E850-03 |
— | ||
|
71074S
|
71074S
71074-1E850-04
Cover, Front Seat Back, Lh(For Separate Type)
[09.1990 - 08.1992] AE95..DX..USA W(FULL FABRIC SEAT),DARK BLUE,TRIM8# |
71074-1E850-04 |
— | ||
|
71505
|
71505
71505-12070
Pad Sub-Assy, Front Seat Back W/frame, Rh
[09.1990 - 08.1993] AE95 |
71505-12070 |
— | ||
|
71506
|
71506
71505-12070
Pad Sub-Assy, Front Seat Back W/frame, Rh
[09.1990 - 08.1993] AE95..DX |
71505-12070 |
— | ||
|
71511S
|
71511S
71511-12670 Pad, Front Seat Cushion, Rh(For Separate Type)FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) [09.1990 - 08.1993] AE95..DX |
71511-12670 |
US $243.15 |
||
|
71512S
|
71512S
71511-12670 Pad, Front Seat Cushion, Rh(For Separate Type)FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) [09.1990 - 08.1993] AE95..DX |
71511-12670 |
US $243.15 |
||
|
71553B
|
71553B
71553-12230 Pad, Front Seat Back, BFRONT SEAT BACK, B [09.1990 - 08.1993] AE95..DX |
71553-12230 |
US $12.52 |
||
|
71553C
|
71553C
71553-12230 Pad, Front Seat Back, BFRONT SEAT BACK, B [09.1990 - 08.1993] AE95..DX |
71553-12230 |
US $12.52 |
||
|
71610S
|
71610S
71610-12300 Spring Assy, Front Seat Cushion, Rh(For Separate Type)FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) [09.1990 - 08.1993] AE95 |
71610-12300 |
US $301.39 |
||
|
71620S
|
71620S
71610-12300 Spring Assy, Front Seat Cushion, Rh(For Separate Type)FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) [09.1990 - 08.1993] AE95 |
71610-12300 |
US $301.39 |
||
|
71910A
|
71910A
71910-12741-03 Headrest Assy, Front SeatFRONT SEAT [09.1990 - 08.1992] AE95..DX..USA W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
71910-12741-03 |
US $189.28 |
||
|
71910A
|
71910A
71910-12741-04 Headrest Assy, Front SeatFRONT SEAT [09.1990 - 08.1992] AE95..DX..USA W(FULL FABRIC SEAT),DARK BLUE,TRIM8# |
71910-12741-04 |
US $189.28 |
||
|
71910A
|
71910A
71910-1A110-B0 Headrest Assy, Front SeatFRONT SEAT [09.1990 - 08.1992] AE95..DX..USA SHADOW GRAY,TRIM1# |
71910-1A110-B0 |
US $237.33 |
||
|
71910A
|
71910A
71910-1A110-J0
Headrest Assy, Front Seat
[09.1990 - 08.1992] AE95..DX..USA DARK BLUE,TRIM8# |
71910-1A110-J0 |
— | ||
|
71931
|
71931
71930-12050-03 Support, Front Seat Headrest[09.1990 - 08.1993] AE95 W(LOCK),SHADOW GRAY,TRIM1# |
71930-12050-03 |
US $12.23 |
||
| replacement | |||||
|
71931
|
71931
71930-12050-B0 Support, Front Seat Headrest[09.1990 - 08.1993] AE95 W(LOCK),SHADOW GRAY,TRIM1# |
71930-12050-B0 |
US $11.65 |
||
|
71931
|
71931
71930-12050-04 Support, Front Seat Headrest[09.1990 - 08.1993] AE95 W(LOCK),DARK BLUE,TRIM8# |
71930-12050-04 |
US $12.23 |
||
| replacement | |||||
|
71931
|
71931
71930-12050-B0 Support, Front Seat Headrest[09.1990 - 08.1993] AE95 W(LOCK),DARK BLUE,TRIM8# |
71930-12050-B0 |
US $11.65 |
||
|
71931
|
71931
71931-12010-03 Support, Front Seat Headrest[09.1990 - 08.1993] AE95 W/O(LOCK),SHADOW GRAY,TRIM1# |
71931-12010-03 |
US $12.38 |
||
|
71931
|
71931
71931-12010-04 Support, Front Seat Headrest[09.1990 - 08.1993] AE95 W/O(LOCK),DARK BLUE,TRIM8# |
71931-12010-04 |
US $12.38 |
||
| replacement | |||||
|
71931
|
71931
71931-12010-03 Support, Front Seat Headrest[09.1990 - 08.1993] AE95 W/O(LOCK),DARK BLUE,TRIM8# |
71931-12010-03 |
US $12.38 |
||
|
9046818071
|
9046818071
90468-18071
Clip (For Front Seat Cushion Cover)
|
90468-18071 |
— | ||
| replacement | |||||
|
9046818071
|
9046818071
90468-16019 Clip (For Rear Seat Back) |
90468-16019 |
from US $0.78 |
||
|
9052001274
|
9052001274
90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle) |
90520-01274 |
from US $0.99 |
||
|
9166640616
|
9166640616
91666-40616
New Genuine Part
|
91666-40616 |
— | ||
| replacement | |||||
|
9166640616
|
9166640616
91661-60616 BOLT |
91661-60616 |
from US $0.74 |
||
