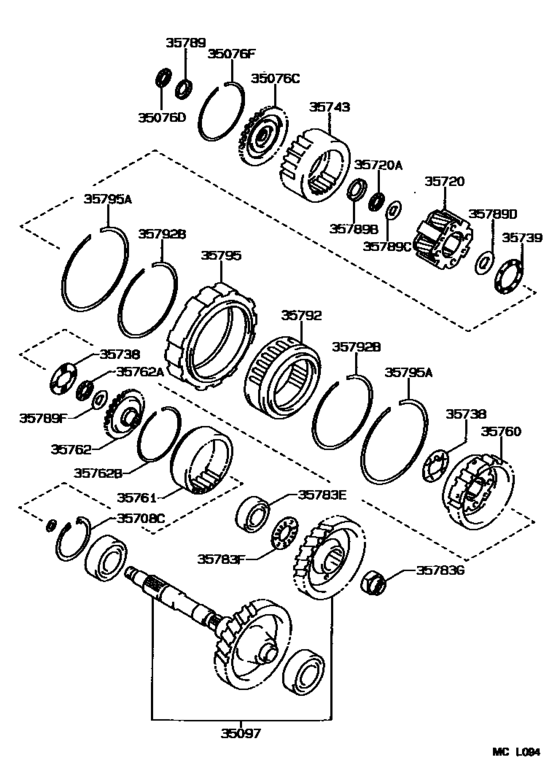

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([09.1990 - ] A241H (9009- )4FC) Diagram Toyota COROLLA
- Year
- 1990 - 1992
- Sales region
- U.S.A.
- Frame
- AE95
- grade
- DX
- body
- WG
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- COROLLA WAGON
- From
- 09.1990
- To
- 08.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla Wagon
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35076C
|
35076C
35076-32011 Flange Sub-Assy, Front Planetary Ring Gear[09.1990 - 08.1993] AE95..4FC |
35076-32011 |
US $70.62 |
||
|
35076D
|
35076D
90374-22001 Bearing, Thrust Needle Roller(For Front Planetary Flange)[09.1990 - 08.1993] AE95..4FC |
90374-22001 |
US $10.05 |
||
|
35076F
|
35076F
90521-99014 Ring, Hole Snap (For Front Planetary Ring Gear Flange)[09.1990 - 08.1993] AE95..4FC |
90521-99014 |
US $3.49 |
||
|
35097
|
35097
35097-20010 Counter Gear Kit, Automatic Transaxle[09.1990 - 08.1993] AE95..4FC |
35097-20010 |
US $455.73 |
||
|
35708C
|
35708C
90521-76003 Ring, Hole Snap(For Overdrive Planetary Gear Bearing)[09.1990 - 08.1993] AE95..4FC |
90521-76003 |
US $7.43 |
||
|
35720
|
35720
35720-32010 Gear Assy, Front Planetary[09.1990 - 08.1993] AE95..4FC |
35720-32010 |
US $147.06 |
||
| replacement | |||||
|
35720
|
35720
35720-17010
Gear Assy, Front Planetary
[09.1990 - 08.1993] AE95..4FC |
35720-17010 |
— | ||
|
35720A
|
35720A
90374-22001 Bearing, Thrust Needle Roller(For Front Planetary Flange)[09.1990 - 08.1993] AE95..4FC |
90374-22001 |
US $10.05 |
||
|
35738
|
35738
35738-32010 Washer, Planetary Carrier Thrust, No.2[09.1990 - 08.1993] AE95..4FC |
35738-32010 |
US $15.43 |
||
|
35739
|
35739
35739-32011 Washer, Planetary Carrier Thrust, No.3[09.1990 - 08.1993] AE95..4FC |
35739-32011 |
US $15.29 |
||
|
35743
|
35743
35743-32020 Gear, Front Planetary Ring[09.1990 - 02.1991] AE95..4FC |
35743-32020 |
US $115.02 |
||
| replacement | |||||
|
35743
|
35743
35743-32040 Gear, Front Planetary Ring[09.1990 - 02.1991] AE95..4FC |
35743-32040 |
US $104.83 |
||
|
35743
|
35743
35743-32040 Gear, Front Planetary Ring[02.1991 - 08.1993] AE95..4FC |
35743-32040 |
US $104.83 |
||
|
35760
|
35760
35760-32010 Gear Assy, Rear Planetary[09.1990 - 08.1993] AE95..4FC |
35760-32010 |
US $291.20 |
||
|
35761
|
35761
35761-32010 Gear, Rear Planetary Ring[09.1990 - 08.1993] AE95..4FC |
35761-32010 |
US $101.92 |
||
|
35762
|
35762
35762-32010 Flange, Rear Planetary Ring Gear[09.1990 - 08.1993] AE95..4FC |
35762-32010 |
US $74.26 |
||
|
35762A
|
35762A
90374-24002
Bearing, Thrust Needle Roller (For Rear Planetary Flange)
[09.1990 - 08.1993] AE95..4FC |
90374-24002 |
— | ||
|
35762B
|
35762B
90521-90001 Ring, Hole Snap (For Rear Planetary Ring Gear Flange)[09.1990 - 08.1993] AE95..4FC |
90521-90001 |
US $3.06 |
||
|
35783E
|
35783E
90365-37001
Bearing, Cylindrical Roller(For Counter Driven Gear)
[09.1990 - 08.1993] AE95..4FC |
90365-37001 |
— | ||
|
35783F
|
35783F
90374-41001 Bearing, Thrust Needle Roller(For Counter Driven Gear)[09.1990 - 08.1993] AE95..4FC |
90374-41001 |
US $15 |
||
|
35783G
|
35783G
90179-20013 Nut(For Counter Driven Gear)[09.1990 - 08.1993] AE95..4FC |
90179-20013 |
US $3.49 |
||
|
35789
|
35789
35789-32050 Race, Thrust Bearing (For Front Planetary Flange Front)[09.1990 - 08.1993] AE95..4FC |
35789-32050 |
US $9.32 |
||
|
35789B
|
35789B
35789-32040 Race, Thrust Bearing (For Input Shaft Rear)[09.1990 - 08.1993] AE95..4FC |
35789-32040 |
US $9.32 |
||
|
35789C
|
35789C
35789-32060 Race, Thrust Bearing (For Front Planetary Gear Front)[09.1990 - 08.1993] AE95..4FC |
35789-32060 |
US $9.17 |
||
|
35789D
|
35789D
35789-32070
Race, Thrust Bearing (For Front Planetary Gear Rear)
[09.1990 - 08.1993] AE95..4FC |
35789-32070 |
— | ||
|
35789F
|
35789F
35789-32080
Race, Thrust Bearing (For Rear Planetary Flange)
[09.1990 - 08.1993] AE95..4FC |
35789-32080 |
— | ||
|
35792
|
35792
35792-32011 Clutch, 1 Way, No.2[09.1990 - 08.1993] AE95..4FC |
35792-32011 |
US $198.02 |
||
|
35792B
|
35792B
90521-99010 Ring, Hole Snap (For 1 Way Clutch No.2)[09.1990 - 08.1993] AE95..4FC |
90521-99010 |
US $3.93 |
||
|
35795
|
35795
35795-32010 Race, 1 Way Clutch Outer[09.1990 - 08.1993] AE95..4FC |
35795-32010 |
US $113.57 |
||
|
35795A
|
35795A
90521-99011 Ring, Hole Snap (For Overdrive Brake Flange)[09.1990 - 08.1993] AE95..4FC |
90521-99011 |
US $4.80 |
||
