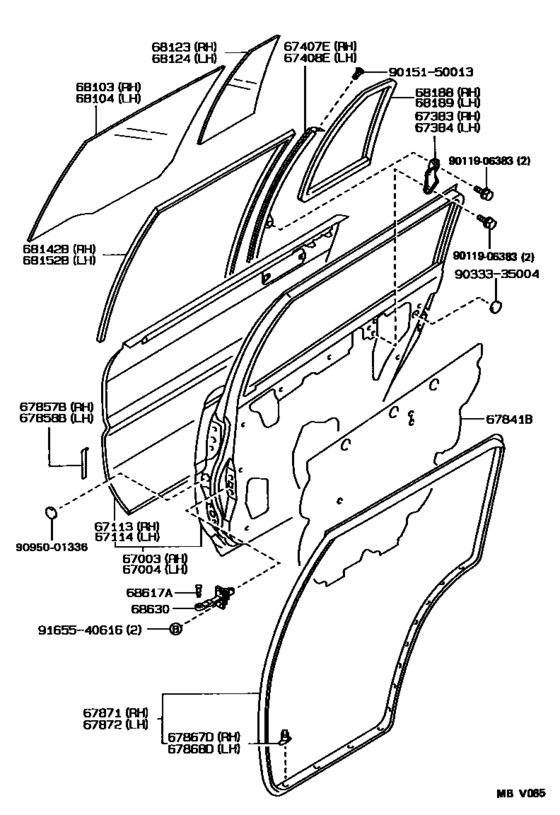

Rear Door Panel & Glass ([09.1990 - ] (9009- )) Diagram Toyota COROLLA
- Year
- 1990 - 1992
- Sales region
- U.S.A.
- Frame
- AE95
- grade
- DX
- body
- WG
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- COROLLA WAGON
- From
- 09.1990
- To
- 08.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla Wagon
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67003
|
67003
67003-12620 Panel Sub-Assy, Rear Door, Rh[09.1990 - 08.1993] AE95 |
67003-12620 |
US $725.09 |
||
|
67004
|
67004
67004-12620 Panel Sub-Assy, Rear Door, Lh[09.1990 - 08.1993] AE95 |
67004-12620 |
US $725.09 |
||
|
67113
|
67113
67113-12171 Panel, Rear Door, Outer Rh[09.1990 - 08.1993] AE95 |
67113-12171 |
US $291.20 |
||
|
67114
|
67114
67114-12171 Panel, Rear Door, Outer Lh[09.1990 - 08.1993] AE95 |
67114-12171 |
US $291.20 |
||
|
67383
|
67383
67383-12030 Bracket, Rear Door Inside Panel, No.2 Rh[09.1990 - 08.1993] AE95 |
67383-12030 |
US $7.43 |
||
|
67384
|
67384
67384-12030 Bracket, Rear Door Inside Panel, No.2 Lh[09.1990 - 08.1993] AE95 |
67384-12030 |
US $7.43 |
||
|
67407E
|
67407E
67407-13020 Bar Sub-Assy, Rear Door Window Division, Rh[09.1990 - 08.1993] AE95 |
67407-13020 |
US $47.17 |
||
|
67408E
|
67408E
67408-13020 Bar Sub-Assy, Rear Door Window Division, Lh[09.1990 - 08.1993] AE95 |
67408-13020 |
US $47.17 |
||
|
67841B
|
67841B
67841-12220
Cover, Rear Door Service Hole
[09.1990 - 08.1992] AE95 |
67841-12220 |
— | ||
| replacement | |||||
|
67841B
|
67841B
67841-12210
Cover, Rear Door Service Hole
[09.1990 - 08.1992] AE95 |
67841-12210 |
— | ||
|
67857B
|
67857B
67857-12020 Protector, Rear Door Panel, Rh[09.1990 - 08.1993] AE95 |
67857-12020 |
US $6.26 |
||
|
67858B
|
67858B
67858-12020 Protector, Rear Door Panel, Lh[09.1990 - 08.1993] AE95 |
67858-12020 |
US $6.26 |
||
|
67867D
|
67867D
67868-12050 Retainer, Rh(For Front Door No.2 Weatherstrip)[09.1990 - 08.1993] AE95 |
67868-12050 |
from US $3.32 |
||
|
67868D
|
67868D
67868-12050 Retainer, Rh(For Front Door No.2 Weatherstrip)[09.1990 - 08.1993] AE95 |
67868-12050 |
from US $3.32 |
||
|
67871
|
67871
67871-12330 Weatherstrip, Rear Door, Rh[09.1990 - 08.1993] AE95 |
67871-12330 |
US $106.29 |
||
|
67872
|
67872
67872-12330 Weatherstrip, Rear Door, Lh[09.1990 - 08.1993] AE95 |
67872-12330 |
US $106.29 |
||
|
68103
|
68103
68113-13100 Glass Sub-Assy, Rear Door, Rh[09.1990 - 08.1993] AE95 *TT,T=3.5 |
68113-13100 |
US $218.40 |
||
|
68104
|
68104
68114-13100 Glass Sub-Assy, Rear Door, Lh[09.1990 - 08.1993] AE95 *TT,T=3.5 |
68114-13100 |
US $218.40 |
||
|
68123
|
68123
68123-12540 Glass, Rear Door Window, Rh[09.1990 - 08.1993] AE95 *TT,T=3.5,BLUE |
68123-12540 |
US $64.36 |
||
|
68124
|
68124
68124-12540 Glass, Rear Door Window, Lh[09.1990 - 08.1993] AE95 *TT,T=3.5,BLUE |
68124-12540 |
US $64.36 |
||
|
68142B
|
68142B
68142-13050
Run, Rear Door Window, Rh
[09.1990 - 08.1993] AE95 |
68142-13050 |
— | ||
|
68152B
|
68152B
68152-13010
Run, Rear Door Window, Lh
[09.1990 - 08.1993] AE95 |
68152-13010 |
— | ||
|
68188
|
68188
68188-12230
Weatherstrip, Rear Door Quarter Window, Rh
[09.1990 - 08.1993] AE95 |
68188-12230 |
— | ||
|
68189
|
68189
68189-12240
Weatherstrip, Rear Door Quarter Window, Lh
[09.1990 - 08.1993] AE95 |
68189-12240 |
— | ||
|
68617A
|
68617A
68617-12030 Pin, Front Door Check[09.1990 - 08.1993] AE95 |
68617-12030 |
US $3.67 |
||
|
68630
|
68630
68630-12040 Check Assy, Rear Door[09.1990 - 08.1993] AE95 |
68630-12040 |
US $49.80 |
||
|
9011906383
|
9011906383
90119-06383 New Genuine Part |
90119-06383 |
US $1.60 |
||
| replacement | |||||
|
9011906383
|
9011906383
91651-A0610 BOLT WWASHER |
91651-A0610 |
US $1.60 |
||
|
9015150013
|
9015150013
90151-50013 New Genuine Part |
90151-50013 |
US $1.92 |
||
|
9033335004
|
9033335004
90333-35004 Plate, Noise Control, No.1 |
90333-35004 |
US $1.12 |
||
|
9095001336
|
9095001336
90950-01336
Plug, Hole(For Front Door Panel)
|
90950-01336 |
— | ||
| replacement | |||||
|
9095001336
|
9095001336
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.92 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
