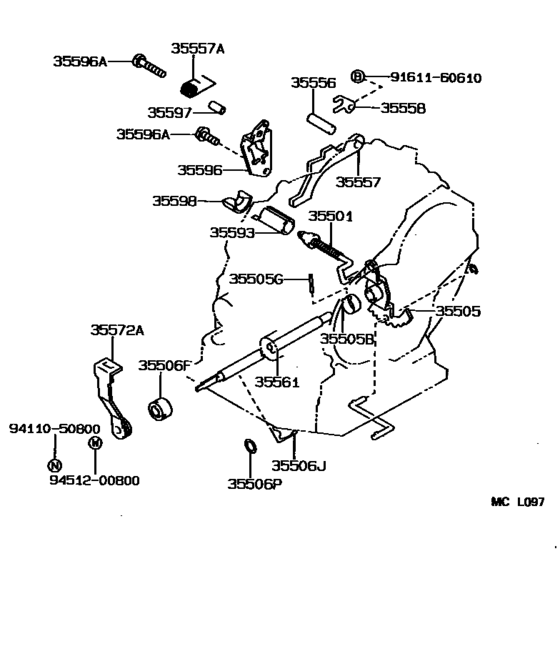

Throttle Link & Valve Lever (Atm) ([09.1990 - ] A241H (9009- )4FC) Diagram Toyota COROLLA
- Year
- 1990 - 1992
- Sales region
- U.S.A.
- Frame
- AE95
- grade
- DX
- body
- WG
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- COROLLA WAGON
- From
- 09.1990
- To
- 08.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla Wagon
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35501
|
35501
35501-12010 Rod Sub-Assy, Parking Lock[09.1990 - 08.1993] AE95..4FC |
35501-12010 |
US $25.63 |
||
|
35505
|
35505
35505-20040 Lever Sub-Assy, Manual Valve[09.1990 - 08.1993] AE95..4FC |
35505-20040 |
US $26.35 |
||
|
35505B
|
35505B
90560-20006 Spacer (For Manual Valve Lever)[09.1990 - 08.1993] AE95..4FC |
90560-20006 |
from US $2.77 |
||
|
35505G
|
35505G
90254-04011 Pin, Slotted Spring (For Transfer Manual Valve Lever)[09.1990 - 08.1993] AE95..4FC |
90254-04011 |
US $1.40 |
||
|
35506F
|
35506F
90311-12002 Oil Seal, Type T[09.1990 - 08.1993] AE95..4FC |
90311-12002 |
from US $4.29 |
||
|
35506J
|
35506J
90524-11001 Spring, Retainer (For Manual Valve Lever Shaft)[09.1990 - 08.1993] AE95..4FC |
90524-11001 |
US $1.60 |
||
|
35506P
|
35506P
90201-12028 Washer, Plate (For Manual Valve Lever Shaft)[09.1990 - 08.1993] AE95..4FC |
90201-12028 |
US $2.04 |
||
|
35556
|
35556
35556-12030 Shaft, Parking Lock Pawl[09.1990 - 08.1993] AE95..4FC |
35556-12030 |
US $5.39 |
||
|
35557
|
35557
35557-12020 Pawl, Parking Lock[09.1990 - 08.1993] AE95..4FC |
35557-12020 |
US $39.89 |
||
|
35557A
|
35557A
90508-21003 Spring, Torsion (For Parking Lock Pawl)[09.1990 - 08.1993] AE95..4FC |
90508-21003 |
US $2.62 |
||
|
35558
|
35558
35558-12020 Clamp, Pawl Shaft[09.1990 - 08.1993] AE95..4FC |
35558-12020 |
US $4.22 |
||
|
35561
|
35561
35561-12020 Shaft Sub-Assy, Manual Valve Lever[09.1990 - 08.1993] AE95..4FC |
35561-12020 |
US $36.98 |
||
|
35572A
|
35572A
35572-12080 Lever, Transmission Control Shaft[09.1990 - 08.1993] AE95..4FC |
35572-12080 |
US $14.41 |
||
|
35593
|
35593
35593-12010 Sleeve, Cam Guide[09.1990 - 08.1993] AE95..4FC |
35593-12010 |
US $5.24 |
||
|
35596
|
35596
35596-12010 Plate, Pawl Stopper[09.1990 - 08.1993] AE95..4FC |
35596-12010 |
US $25.92 |
||
|
35596A
|
35596A
90105-08068 Bolt (For Transaxle Rear Cover Setting)[09.1990 - 08.1993] AE95..4FC *8-1.25PX35-30 |
90105-08068 |
US $3.06 |
||
| replacement | |||||
|
35596A
|
35596A
91551-C0835 Bolt (For Rear Differential Carrier)[09.1990 - 08.1993] AE95..4FC *8-1.25PX35-30 |
91551-C0835 |
US $1.28 |
||
|
35596A
|
35596A
90105-08070 Bolt (For Pawl Stopper Plate)[09.1990 - 07.1993] AE95..4FC *8-1.25PX17-13.5 |
90105-08070 |
US $1.31 |
||
|
35597
|
35597
35597-12010 Sleeve, Spring Guide[09.1990 - 08.1993] AE95..4FC |
35597-12010 |
US $8.44 |
||
|
35598
|
35598
35598-12010 Sleeve, Parking Lock[09.1990 - 08.1993] AE95..4FC |
35598-12010 |
US $22.42 |
||
|
9161160610
|
9161160610
91611-60610
Bolt (For Transfer Oil Receiver No.1)
|
91611-60610 |
— | ||
| replacement | |||||
|
9161160610
|
9161160610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
US $1.12 |
||
|
9411050800
|
9411050800
94110-50800 Nut(For Repair Actuator Set) |
94110-50800 |
US $1.28 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.80 |
||
