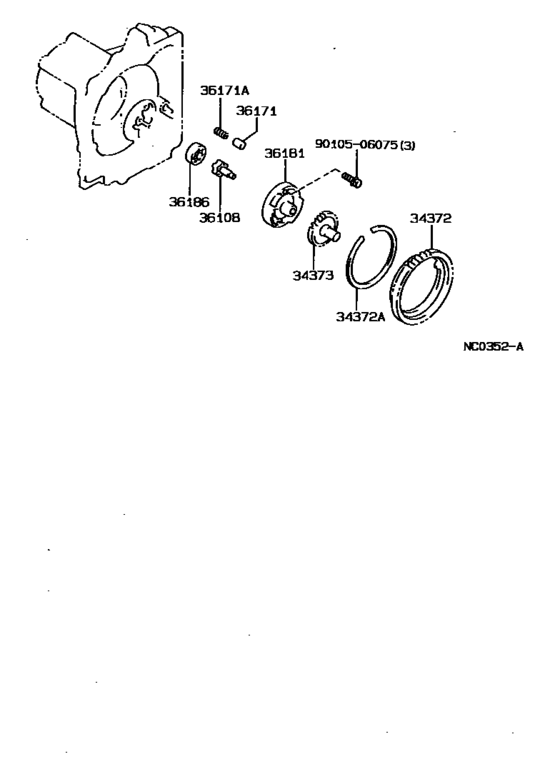

Transfer Oil Pump ([09.1990 - ] A241H (9009- )4FC) Diagram Toyota COROLLA
- Year
- 1990 - 1992
- Sales region
- U.S.A.
- Frame
- AE95
- grade
- DX
- body
- WG
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- COROLLA WAGON
- From
- 09.1990
- To
- 08.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla Wagon
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
34372
|
34372
34372-12010 Gear, Transfer Oil Pump Drive[09.1990 - 08.1993] AE95..4FC |
34372-12010 |
US $49.36 |
||
| replacement | |||||
|
34372
|
34372
34372-74010 Gear, Transfer Oil Pump Drive[09.1990 - 08.1993] AE95..4FC |
34372-74010 |
US $25.04 |
||
|
34372A
|
34372A
90520-99005 Ring, Shaft Snap (For Atm Speedometer Drive Gear)[09.1990 - 08.1993] AE95..4FC |
90520-99005 |
US $2.48 |
||
|
34373
|
34373
34373-12010
Gear, Transfer Oil Pump Driven
[09.1990 - 08.1993] AE95..4FC |
34373-12010 |
— | ||
|
36108
|
36108
36108-12010 Rotor Sub-Assy, Transfer Oil Pump Drive[09.1990 - 08.1993] AE95..4FC |
36108-12010 |
US $23.88 |
||
|
36171
|
36171
36171-12010 Valve, Transfer Oil Cooler Relief[09.1990 - 08.1993] AE95..4FC |
36171-12010 |
US $3.06 |
||
|
36171A
|
36171A
90501-06049 Spring, Compression(For Transfer Oil Cooler Relief Valve)[09.1990 - 08.1993] AE95..4FC |
90501-06049 |
US $1.89 |
||
|
36181
|
36181
36181-12010 Body, Transfer Oil Pump[09.1990 - 08.1993] AE95..4FC |
36181-12010 |
US $40.04 |
||
|
36186
|
36186
36186-12010 Rotor, Transfer Oil Pump Driven[09.1990 - 08.1993] AE95..4FC |
36186-12010 |
US $23.88 |
||
|
9010506075
|
9010506075
90105-06075 New Genuine Part |
90105-06075 |
US $1.60 |
||
| replacement | |||||
|
9010506075
|
9010506075
91511-C0622 Strainer Bolt |
91511-C0622 |
US $0.96 |
||
