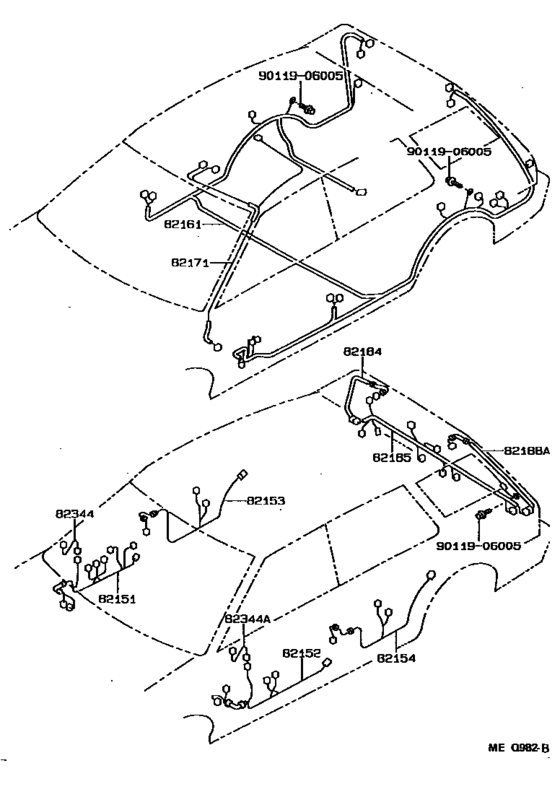

Wiring & Clamp ([09.1990 - ] (9009- )) Diagram Toyota COROLLA
- Year
- 1990 - 1992
- Sales region
- U.S.A.
- Frame
- AE95
- grade
- DX
- body
- WG
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- COROLLA WAGON
- From
- 09.1990
- To
- 08.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla Wagon
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82161
|
82161
82161-1H230 Wire, FloorFLOOR [09.1990 - 08.1993] AE95 |
82161-1H230 |
US $610.06 |
||
|
82161
|
82161
82161-1H240 Wire, FloorFLOOR [09.1990 - 08.1993] AE95 W(*BDEL) |
82161-1H240 |
US $610.06 |
||
|
82171
|
82171
82171-12420 Wire, Roof, No.1ROOF, NO.1 [09.1990 - 11.1990] AE95 |
82171-12420 |
US $25.19 |
||
|
82171
|
82171
82171-12430 Wire, Roof, No.1ROOF, NO.1 [09.1990 - 11.1990] AE95 W(MOON ROOF) |
82171-12430 |
US $49.94 |
||
|
82171
|
82171
82171-13080 Wire, Roof, No.1ROOF, NO.1 [11.1990 - 08.1993] AE95 |
82171-13080 |
US $24.61 |
||
|
82171
|
82171
82171-13090 Wire, Roof, No.1ROOF, NO.1 [11.1990 - 08.1993] AE95 W(MOON ROOF) |
82171-13090 |
US $61.30 |
||
|
82184
|
82184
82184-12280 Wire, Back Door, No.1[09.1990 - 08.1993] AE95 |
82184-12280 |
US $55.04 |
||
|
82185
|
82185
82185-13130 Wire, Back Door, No.2BACK DOOR, NO.2 [09.1990 - 08.1993] AE95 |
82185-13130 |
US $49.07 |
||
|
82185
|
82185
82185-13180 Wire, Back Door, No.2[09.1990 - 08.1993] AE95 W(*BDEL) |
82185-13180 |
US $80.08 |
||
|
82188A
|
82188A
82188-12010
Wire, Back Door, No.3
[09.1990 - 08.1993] AE95 |
82188-12010 |
— | ||
|
82188A
|
82188A
82188-12020 Wire, Back Door, No.3[09.1990 - 08.1993] AE95 W(*BDEL) |
82188-12020 |
US $61.30 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
