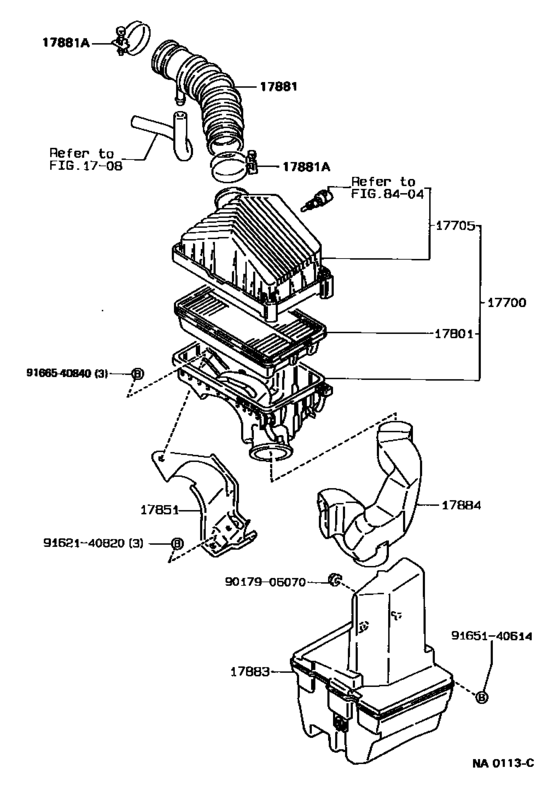

Air Cleaner ([02.1988 - 08.1989] (8802-8908)4AFE) Diagram Toyota COROLLA
- Year
- 1988 - 1990
- Sales region
- Europe
- Frame
- AE95
- grade
- DX
- body
- WG
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- PRODUCT
- JPP
- DESTINATION
- USA
- Model
- COROLLA (JPP)
- From
- 02.1988
- To
- 09.1990
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-15250 Cleaner Assy, Air[02.1988 - 08.1989] 4AFE..AE95 |
17700-15250 |
US $334.88 |
||
|
17700
|
17700
17700-16680 Cleaner Assy, Air[08.1989 - 06.1992] 4AFE..AE9# |
17700-16680 |
US $407.68 |
||
|
17705
|
17705
17705-15140
Cap Sub-Assy, Air Cleaner
[02.1988 - 08.1989] 4AFE..AE95 |
17705-15140 |
— | ||
|
17705
|
17705
17705-16360
Cap Sub-Assy, Air Cleaner
[08.1989 - 06.1992] 4AFE..AE9# |
17705-16360 |
— | ||
|
17801
|
17801
17801-16020 Element Sub-Assy, Air Cleaner Filter[02.1988 - 08.1989] 4AFE..AE95 |
17801-16020 |
US $43.17 |
||
| replacement | |||||
|
17801
|
17801
17801-16020-83 ELEMENT SUB ASSY[02.1988 - 08.1989] 4AFE..AE95 |
17801-16020-83 |
US $46.49 |
||
|
17801
|
17801
17801-74020 Element Sub-Assy, Air Cleaner Filter[08.1989 - 06.1992] 4AFE..AE9# |
17801-74020 |
from US $37.21 |
||
|
17851
|
17851
17851-15010 Bracket, Air Cleaner Support[02.1988 - 06.1992] 4AFE..AE9# |
17851-15010 |
US $39.02 |
||
|
17881
|
17881
17881-15130
Hose, Air Cleaner, No.1
[02.1988 - 08.1989] 4AFE..AE95 |
17881-15130 |
— | ||
|
17881
|
17881
17881-15160
Hose, Air Cleaner, No.1
[08.1989 - 06.1992] 4AFE..AE9# |
17881-15160 |
— | ||
|
17881A
|
17881A
90460-73005 Clamp(For Air Cleaner Hose, No.1)[08.1989 - 06.1992] 4AFE..AE9# |
90460-73005 |
US $6.84 |
||
| replacement | |||||
|
17881A
|
17881A
96111-10730 Clamp(For Air Cleaner Inlet, No.1)[08.1989 - 06.1992] 4AFE..AE9# |
96111-10730 |
US $2.56 |
||
|
17881A
|
17881A
96111-10730 Clamp(For Air Cleaner Inlet, No.1)[02.1988 - 08.1989] 4AFE..AE95 |
96111-10730 |
US $2.56 |
||
|
17883
|
17883
17883-16040 Hose, Air Cleaner, No.3[02.1988 - 05.1988] 4AFE..AE95 |
17883-16040 |
US $90.27 |
||
|
17883
|
17883
17883-16041 Hose, Air Cleaner, No.3[05.1988 - 06.1992] 4AFE..AE9# |
17883-16041 |
US $66.54 |
||
|
17884
|
17884
17882-16100 Hose, Air Cleaner, No.4[02.1988 - 06.1992] 4AFE..AE9# |
17882-16100 |
US $26.30 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9162140820
|
9162140820
91621-40820 Bolt |
91621-40820 |
US $2.08 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $2.05 |
||
|
9166540840
|
9166540840
91665-40840 New Genuine Part |
91665-40840 |
US $2.18 |
||
| replacement | |||||
|
9166540840
|
9166540840
91661-60840 Bolt |
91661-60840 |
US $2.24 |
||
