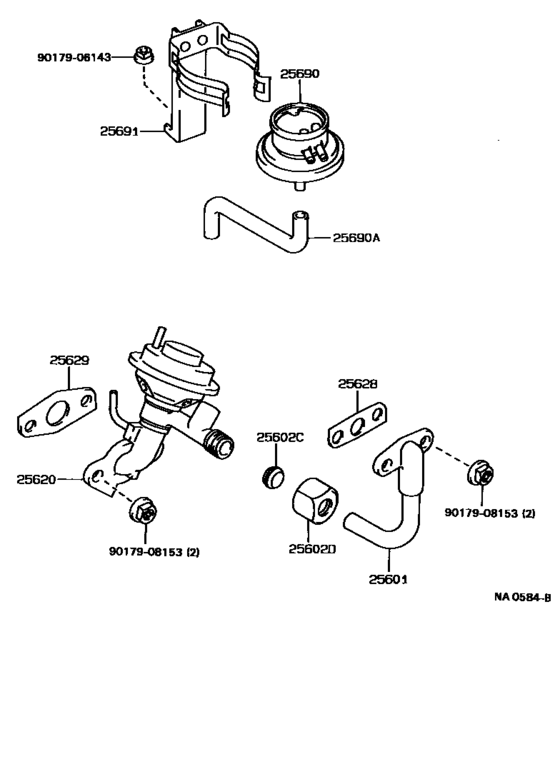

Exhaust Gas Recirculation System ([02.1988 - 08.1989] (8802-8908)4AFE) Diagram Toyota COROLLA
- Year
- 1988 - 1990
- Sales region
- Europe
- Frame
- AE95
- grade
- DX
- body
- WG
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- PRODUCT
- JPP
- DESTINATION
- USA
- Model
- COROLLA (JPP)
- From
- 02.1988
- To
- 09.1990
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25601
|
25601
25601-16040 Pipe Sub-Assy, Egr, No.1[02.1988 - 08.1989] 4AFE..AE95 |
25601-16040 |
US $75.71 |
||
|
25602C
|
25602C
90410-12042 Sleeve, Ball, Egr Pipe, No.1[02.1988 - 08.1989] 4AFE..AE95 |
90410-12042 |
from US $11.20 |
||
|
25602D
|
25602D
90402-20073 Nut, Union, Egr Pipe, No.1[02.1988 - 08.1989] 4AFE..AE95 |
90402-20073 |
US $17.78 |
||
|
25620
|
25620
25620-16100 Valve Assy, EgrEGR [02.1988 - 08.1989] 4AFE..AE95 |
25620-16100 |
US $264.99 |
||
|
25620
|
25620
25620-16131
Valve Assy, Egr
[08.1989 - 09.1990] 4AFE..AE95..4FC CALIFORNIA SPEC |
25620-16131 |
— | ||
|
25620
|
25620
25620-16200 Valve Assy, EgrEGR [08.1989 - 09.1990] 4AFE..AE95..4FC |
25620-16200 |
US $263.54 |
||
|
25628
|
25628
25628-16010
Gasket, Egr Inlet
[02.1988 - 08.1989] 4AFE..AE95 |
25628-16010 |
— | ||
|
25629
|
25629
25627-16020 Gasket, Egr Valve Adapter[08.1989 - 09.1990] 4AFE..AE95 |
25627-16020 |
US $4.66 |
||
|
25629
|
25629
25627-16030 Gasket, Egr Valve Adapter[02.1988 - 08.1989] 4AFE..AE95 |
25627-16030 |
US $4.95 |
||
| replacement | |||||
|
25629
|
25629
25627-16031 Gasket, Egr Valve Adapter[02.1988 - 08.1989] 4AFE..AE95 |
25627-16031 |
US $4.66 |
||
|
25690
|
25690
25870-16110
Modulator Assy, Egr Vacuum
[02.1988 - 08.1989] 4AFE..AE95..4FC |
25870-16110 |
— | ||
|
25690
|
25690
25870-16150 Modulator Assy, Egr VacuumEGR VACUUM [08.1989 - 09.1990] 4AFE..AE95..4FC |
25870-16150 |
US $94.71 |
||
|
25690A
|
25690A
25695-16030 Hose(For Egr Vacuum Modulator)[02.1988 - 08.1989] 4AFE..AE95 |
25695-16030 |
US $15.58 |
||
|
25690A
|
25690A
25695-16050
Hose(For Egr Vacuum Modulator)
[08.1989 - 09.1989] 4AFE..AE95;4AFE..AE92..ATM..USA;4AFE..AE92..SED..5F..(DX,LE)..USA |
25695-16050 |
— | ||
|
25691
|
25691
25691-16150 Bracket, Egr Vacuum Modulator[02.1988 - 08.1989] 4AFE..AE95 |
25691-16150 |
US $8.88 |
||
|
9017906143
|
9017906143
90179-06143 NUT |
90179-06143 |
from US $0.86 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
