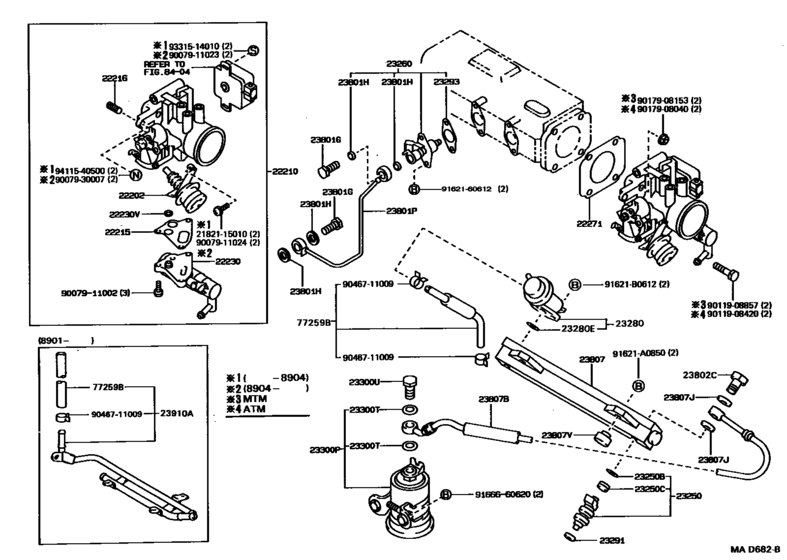

Fuel Injection System ([02.1988 - 08.1989] (8802-8908)4AFE) Diagram Toyota COROLLA
- Year
- 1988 - 1990
- Sales region
- Europe
- Frame
- AE95
- grade
- DX
- body
- WG
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- PRODUCT
- JPP
- DESTINATION
- USA
- Model
- COROLLA (JPP)
- From
- 02.1988
- To
- 09.1990
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22202
|
22202
22202-15020 Dash Pot Sub-Assy[02.1988 - 09.1990] 4AFE..AE95 |
22202-15020 |
US $104.83 |
||
|
22210
|
22210
22210-16280 Body Assy, ThrottleTHROTTLE [02.1988 - 08.1989] 4AFE..AE95..4FC |
22210-16280 |
US $955.14 |
||
|
22210
|
22210
22210-16530 Body Assy, ThrottleTHROTTLE [08.1989 - 09.1990] 4AFE..AE95..4FC |
22210-16530 |
US $679.95 |
||
|
22215
|
22215
22215-15010 Gasket, Throttle Body Cover[02.1988 - 04.1990] 4AFE..AE95 |
22215-15010 |
US $4.95 |
||
| replacement | |||||
|
22215
|
22215
22215-15011
Gasket, Throttle Body Cover
[02.1988 - 04.1990] 4AFE..AE95 |
22215-15011 |
— | ||
|
22215
|
22215
22215-15011
Gasket, Throttle Body Cover
[04.1990 - 09.1990] 4AFE..AE95 |
22215-15011 |
— | ||
|
22216
|
22216
22216-74010
Screw, Dash Pot Adjusting
[02.1988 - 06.1992] 4AFE..AE9# |
22216-74010 |
— | ||
|
22230
|
22230
22230-16150 Valve Assy, Auxiliary AirAUXILIARY AIR [02.1988 - 08.1989] 4AFE..AE95..4FC |
22230-16150 |
US $282.46 |
||
|
22230
|
22230
22230-16210
Valve Assy, Auxiliary Air
[10.1989 - 09.1990] 4AFE..AE95..4FC |
22230-16210 |
— | ||
|
22230V
|
22230V
96711-19009 Ring, O(For Oil Level Gage Guide)[02.1988 - 08.1989] 4AFE..AE95..4FC |
96711-19009 |
from US $1.85 |
||
|
22271
|
22271
22271-15010 Gasket, Throttle Body[02.1988 - 12.1989] 4AFE..AE9# |
22271-15010 |
US $7.72 |
||
| replacement | |||||
|
22271
|
22271
22271-15011 Gasket, Throttle Body[02.1988 - 12.1989] 4AFE..AE9# |
22271-15011 |
from US $5.25 |
||
|
22271
|
22271
22271-15011 Gasket, Throttle Body[12.1989 - 06.1992] 4AFE..AE9# |
22271-15011 |
from US $5.25 |
||
|
23250
|
23250
23209-16100
Injector Assy, Fuel
[02.1988 - 08.1989] 4AFE..AE95 |
23209-16100 |
— | ||
|
23250
|
23250
23209-16120
Injector Assy, Fuel
[08.1989 - 06.1992] 4AFE..AE9# |
23209-16120 |
— | ||
|
23250B
|
23250B
90301-07001 Ring, O(For Fuel Injector)[02.1988 - 06.1992] 4AFE..AE9# |
90301-07001 |
from US $2.93 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[02.1988 - 06.1992] 4AFE..AE9# |
90480-13005 |
from US $2.50 |
||
|
23260
|
23260
23260-19085 Injector Assy, Cold Start Fuel[02.1988 - 08.1989] 4AFE..AE95 |
23260-19085 |
US $141.23 |
||
| replacement | |||||
|
23260
|
23260
23260-19086 Injector Assy, Cold Start Fuel[02.1988 - 08.1989] 4AFE..AE95 |
23260-19086 |
US $141.23 |
||
|
23260
|
23260
23260-19105 Injector Assy, Cold Start Fuel[08.1989 - 12.1989] 4AFE..AE9# |
23260-19105 |
US $141.23 |
||
| replacement | |||||
|
23260
|
23260
23260-19106 Injector Assy, Cold Start Fuel[08.1989 - 12.1989] 4AFE..AE9# |
23260-19106 |
US $136.86 |
||
|
23260
|
23260
23260-19106 Injector Assy, Cold Start Fuel[12.1989 - 06.1992] 4AFE..AE9# |
23260-19106 |
US $136.86 |
||
|
23280
|
23280
23280-16120
Regulator Assy, Fuel Pressure
[02.1988 - 06.1992] 4AFE..AE9# |
23280-16120 |
— | ||
|
23280E
|
23280E
90301-07001 Ring, O(For Fuel Injector)[02.1988 - 06.1992] 4AFE..AE9# |
90301-07001 |
from US $2.93 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[02.1988 - 06.1992] 4AFE..AE9# |
23291-41010 |
from US $2.87 |
||
|
23293
|
23293
23293-62020
Gasket(For Surge Tank Cover)
[12.1989 - 06.1992] 4AFE..AE9# |
23293-62020 |
— | ||
|
23293
|
23293
23293-74010
Gasket, Cold Start Injector
[02.1988 - 12.1989] 4AFE..AE9# |
23293-74010 |
— | ||
| replacement | |||||
|
23293
|
23293
23293-42010 Gasket, Cold Start Injector[02.1988 - 12.1989] 4AFE..AE9# |
23293-42010 |
US $5.60 |
||
|
23300P
|
23300P
23300-19145 Filter, Fuel(For Efi)[02.1988 - 06.1992] 4AFE..AE9# |
23300-19145 |
US $80.72 |
||
|
23300T
|
23300T
90430-12005 Gasket(For Water Hole)[02.1988 - 07.1991] 4AFE..AE9# |
90430-12005 |
from US $0.70 |
||
|
23300U
|
23300U
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[02.1988 - 06.1992] 4AFE..AE9# |
90401-12097 |
from US $3.08 |
||
|
23801G
|
23801G
90401-08003 Bolt, Union[02.1988 - 06.1992] 4AFE..AE9# |
90401-08003 |
US $2.24 |
||
|
23801H
|
23801H
90430-08005 Gasket[02.1988 - 06.1992] 4AFE..AE9# |
90430-08005 |
US $2.24 |
||
|
23801P
|
23801P
23801-15050 Pipe Sub-Assy, Fuel, No.1[02.1988 - 08.1989] 4AFE..AE95 |
23801-15050 |
US $27.08 |
||
|
23801P
|
23801P
23801-16040 Pipe Sub-Assy, Fuel, No.1FUEL, NO.1 [08.1989 - 06.1992] 4AFE..AE9# |
23801-16040 |
US $27.08 |
||
|
23802C
|
23802C
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[02.1988 - 06.1992] 4AFE..AE9# |
90401-12097 |
from US $3.08 |
||
|
23807
|
23807
23807-16070 Pipe Sub-Assy, Fuel Delivery[02.1988 - 08.1989] 4AFE..AE95 |
23807-16070 |
US $174.72 |
||
| replacement | |||||
|
23807
|
23807
23807-15011 Pipe Sub-Assy, Fuel Delivery[02.1988 - 08.1989] 4AFE..AE95 |
23807-15011 |
US $186.37 |
||
|
23807
|
23807
23814-16110
Pipe Sub-Assy, Fuel Delivery
[08.1989 - 06.1992] 4AFE..AE9# |
23814-16110 |
— | ||
| replacement | |||||
|
23807
|
23807
23814-16111
Pipe Sub-Assy, Fuel Delivery
[08.1989 - 06.1992] 4AFE..AE9# |
23814-16111 |
— | ||
|
23807B
|
23807B
23271-16080 Hose, Fuel Delivery Pipe[02.1988 - 08.1989] 4AFE..AE95 |
23271-16080 |
US $147.06 |
||
|
23807B
|
23807B
23271-16130
Hose, Fuel Delivery Pipe
[08.1989 - 06.1992] 4AFE..AE9# |
23271-16130 |
— | ||
|
23807J
|
23807J
90201-12109 Washer, Air Bleeder Nipple[02.1988 - 09.1991] 4AFE..AE9# |
90201-12109 |
from US $1.38 |
||
|
23807V
|
23807V
90561-08021
Spacer, No.1(For Delivery Pipe)
[02.1988 - 06.1992] 4AFE..AE9# |
90561-08021 |
— | ||
|
23910A
|
23910A
23901-16100 Tube Sub-Assy, Fuel[01.1989 - 08.1989] 4AFE..AE95 |
23901-16100 |
US $180.54 |
||
| replacement | |||||
|
23910A
|
23910A
23901-16101 Tube Sub-Assy, Fuel[01.1989 - 08.1989] 4AFE..AE95 |
23901-16101 |
US $180.54 |
||
|
77259B
|
77259B
77259-12110 Hose, Fuel[02.1988 - 01.1989] AE95 |
77259-12110 |
US $21.11 |
||
|
77259B
|
77259B
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[01.1989 - 08.1989] AE95 |
95333-06020 |
— | ||
| replacement | |||||
|
77259B
|
77259B
95337-06020 Hose, Differential Pressure Control[01.1989 - 08.1989] AE95 |
95337-06020 |
from US $9.12 |
||
|
91621A0850
|
91621A0850
91621-A0850 New Genuine Part |
91621-A0850 |
US $3.20 |
||
|
91621B0612
|
91621B0612
91621-B0612
New Genuine Part
|
91621-B0612 |
— | ||
| replacement | |||||
|
91621B0612
|
91621B0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
2182115010
|
2182115010
21821-15010 Screw(For Choke Lever Adapter Set) |
21821-15010 |
US $1.75 |
||
|
9007911002
|
9007911002
90079-11002 New Genuine Part |
90079-11002 |
US $1.75 |
||
|
9007911023
|
9007911023
90079-11023 New Genuine Part |
90079-11023 |
US $1.60 |
||
|
9007911024
|
9007911024
90079-11024 New Genuine Part |
90079-11024 |
US $1.60 |
||
|
9007930007
|
9007930007
90079-30007 New Genuine Part |
90079-30007 |
US $1.60 |
||
| replacement | |||||
|
9007930007
|
9007930007
90079-30006 New Genuine Part |
90079-30006 |
US $1.05 |
||
|
9011908420
|
9011908420
90119-08420
New Genuine Part
|
90119-08420 |
— | ||
|
9011908857
|
9011908857
90119-08857 New Genuine Part |
90119-08857 |
US $2.62 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.13 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9046711009
|
9046711009
90467-11009
Clamp Or Clip, Hose(For Water By-Pass Hose)
|
90467-11009 |
— | ||
| replacement | |||||
|
9046711009
|
9046711009
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose) |
96135-51100 |
from US $1.93 |
||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
9166660620
|
9166660620
91666-60620 New Genuine Part |
91666-60620 |
US $1.60 |
||
| replacement | |||||
|
9166660620
|
9166660620
91661-60616 BOLT |
91661-60616 |
from US $0.74 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.80 |
||
|
9411540500
|
9411540500
94115-40500 Nut(For Lpg Filter Stud Bolt Set) |
94115-40500 |
US $1.76 |
||
