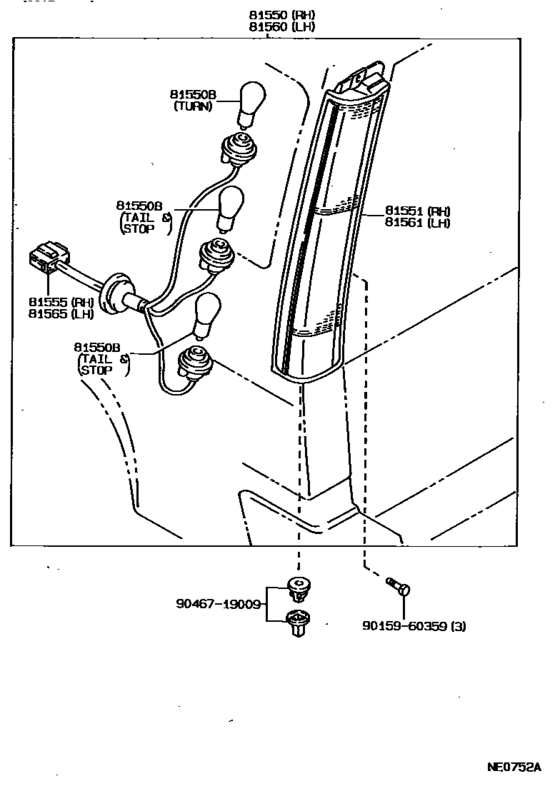

Rear Combination Lamp ([02.1988 - 09.1990] (8802-9009)AE95..WG) Diagram Toyota COROLLA
- Year
- 1988 - 1990
- Sales region
- Europe
- Frame
- AE95
- grade
- DX
- body
- WG
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- PRODUCT
- JPP
- DESTINATION
- USA
- Model
- COROLLA (JPP)
- From
- 02.1988
- To
- 09.1990
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-1A460 Lamp Assy, Rear Combination, RhREAR COMBINATION, RH [02.1988 - 06.1988] AE95 |
81550-1A460 |
US $253.34 |
||
|
81550
|
81550
81550-1A461 Lamp Assy, Rear Combination, RhREAR COMBINATION, RH [06.1988 - 09.1990] AE95..WG |
81550-1A461 |
US $235.87 |
||
|
81550B
|
81550B
99132-11270 Bulb, Fog Lamp[02.1988 - 08.1989] AE95..WG 12V 27W,STOP & TAIL |
99132-11270 |
US $3.36 |
||
|
81550B
|
81550B
99132-21270 Bulb (For Front Turn Signal Lamp)[08.1987 - 08.1989] AE95;AE92..SED 12V 27/8W,STOP & TAIL |
99132-21270 |
US $4.32 |
||
|
81551
|
81551
81551-1A450 Lens, Rear Combination Lamp, Rh[02.1988 - 05.1988] AE95 |
81551-1A450 |
US $155.79 |
||
|
81551
|
81551
81551-1A451
Lens, Rear Combination Lamp, Rh
[05.1988 - 09.1990] AE95..WG |
81551-1A451 |
— | ||
|
81555
|
81555
81555-1A460 Socket & Wire Sub-Assy, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [02.1988 - 09.1990] AE95..WG |
81555-1A460 |
US $33.49 |
||
|
81560
|
81560
81560-1A430 Lamp Assy, Rear Combination, LhREAR COMBINATION, LH [02.1988 - 06.1988] AE95 |
81560-1A430 |
US $253.34 |
||
|
81560
|
81560
81560-1A431 Lamp Assy, Rear Combination, LhREAR COMBINATION, LH [06.1988 - 09.1990] AE95..WG |
81560-1A431 |
US $235.87 |
||
|
81561
|
81561
81561-1A420 Lens, Rear Combination Lamp, Lh[02.1988 - 05.1988] AE95 |
81561-1A420 |
US $155.79 |
||
|
81561
|
81561
81561-1A421 Lens, Rear Combination Lamp, Lh[05.1988 - 09.1990] AE95..WG |
81561-1A421 |
US $155.79 |
||
|
81565
|
81565
81555-1A460 Socket & Wire Sub-Assy, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [02.1988 - 09.1990] AE95..WG |
81555-1A460 |
US $33.49 |
||
|
9015960359
|
9015960359
90159-60359 New Genuine Part |
90159-60359 |
US $2.08 |
||
|
9046719009
|
9046719009
90467-19009 CLIP |
90467-19009 |
US $3.20 |
