Vacuum Piping ([02.1988 - 08.1989] (8802-8908)4AFE) Diagram Toyota COROLLA
- Year
- 1988 - 1990
- Sales region
- Europe
- Frame
- AE95
- grade
- DX
- body
- WG
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- PRODUCT
- JPP
- DESTINATION
- USA
- Model
- COROLLA (JPP)
- From
- 02.1988
- To
- 09.1990
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?

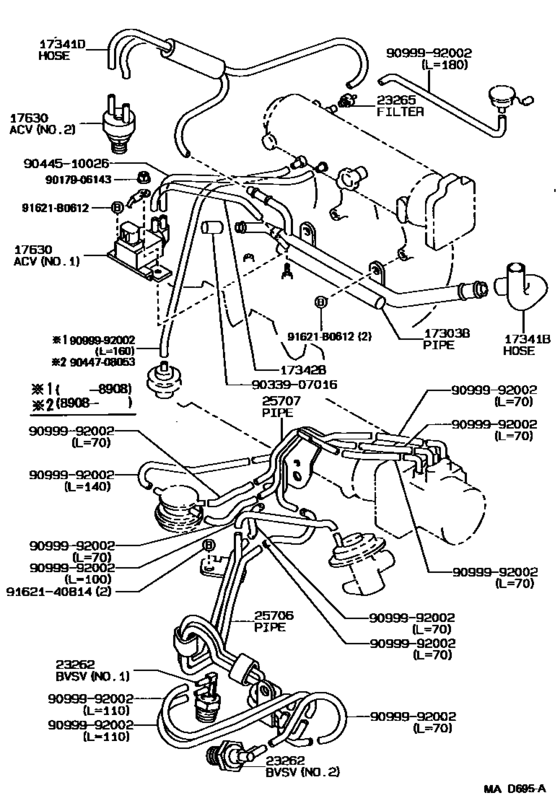

| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303B
|
17303B
17303-15050 Pipe Sub-Assy, Air, No.1[02.1988 - 08.1989] 4AFE..AE95 |
17303-15050 |
US $74.26 |
||
|
17303B
|
17303B
17303-16140 Pipe Sub-Assy, Air, No.1AIR, NO.1 [08.1989 - 09.1990] 4AFE..AE95 |
17303-16140 |
US $142.69 |
||
|
17341B
|
17341B
17341-15130
Hose, No.1(For Air Injection System)
[02.1988 - 08.1989] 4AFE..AE95 |
17341-15130 |
— | ||
|
17341B
|
17341B
17341-15170 Hose, No.1(For Air Injection System)NO.1(FOR AIR INJECTION SYSTEM) [08.1989 - 06.1992] 4AFE..AE9# |
17341-15170 |
US $11.65 |
||
|
17341D
|
17341D
17302-16010
Hose, No.1(For Idle-Up)
[08.1989 - 06.1992] 4AFE..AE9# |
17302-16010 |
— | ||
|
17341D
|
17341D
17341-15150 Hose, No.1(For Idle-Up)[02.1988 - 08.1989] 4AFE..AE95 |
17341-15150 |
US $33.63 |
||
|
17342B
|
17342B
17342-15070 Hose, No.2(For Idle-Up)[02.1988 - 08.1989] 4AFE..AE95 |
17342-15070 |
US $9.03 |
||
|
17342B
|
17342B
90445-10029
Hose, No.2(For Idle-Up)
[08.1989 - 06.1992] 4AFE..AE9# |
90445-10029 |
— | ||
|
17630
|
17630
17630-15040 Valve Assy, Air Control[02.1988 - 08.1989] 4AFE..AE95 |
17630-15040 |
US $101.92 |
||
|
17630
|
17630
17630-15060 Valve Assy, Air Control[02.1988 - 08.1989] 4AFE..AE95 W(POWER STEERING),NO.2 |
17630-15060 |
US $95.44 |
||
|
17630
|
17630
17630-16070
Valve Assy, Air Control
[08.1989 - 06.1992] 4AFE..AE9# NO.1 |
17630-16070 |
— | ||
|
23262
|
23262
90925-05068 Valve, Bimetal Vacuum Switching, No.1BIMETAL VACUUM SWITCHING, NO.1 [02.1988 - 08.1989] 4AFE..AE95 NO.2 |
90925-05068 |
from US $61.99 |
||
|
23262
|
23262
90925-05075
Valve, Bimetal Vacuum Switching, No.1
[02.1988 - 08.1989] 4AFE..AE95 NO.1 |
90925-05075 |
— | ||
|
23265
|
23265
90917-11022 Filter, Gas, No.1[02.1988 - 06.1992] 4AFE..AE9# |
90917-11022 |
US $15.50 |
||
|
25706
|
25706
25706-16300 Pipe Sub-Assy, Vacuum Transmitting, No.1[02.1988 - 08.1989] 4AFE..AE95 |
25706-16300 |
US $57.95 |
||
|
25707
|
25707
25707-16131 Pipe Sub-Assy, Vacuum Transmitting, No.2VACUUM TRANSMITTING, NO.2 [02.1988 - 08.1989] 4AFE..AE95 |
25707-16131 |
US $33.49 |
||
|
25707
|
25707
25707-16150 Pipe Sub-Assy, Vacuum Transmitting, No.2VACUUM TRANSMITTING, NO.2 [08.1989 - 01.1990] 4AFE..AE95 |
25707-16150 |
US $94.64 |
||
| replacement | |||||
|
25707
|
25707
25707-16151 Pipe Sub-Assy, Vacuum Transmitting, No.2VACUUM TRANSMITTING, NO.2 [08.1989 - 01.1990] 4AFE..AE95 |
25707-16151 |
US $91.73 |
||
|
25707
|
25707
25707-16151 Pipe Sub-Assy, Vacuum Transmitting, No.2VACUUM TRANSMITTING, NO.2 [01.1990 - 09.1990] 4AFE..AE95 |
25707-16151 |
US $91.73 |
||
|
91621B0612
|
91621B0612
91621-B0612
New Genuine Part
|
91621-B0612 |
— | ||
| replacement | |||||
|
91621B0612
|
91621B0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
9017906143
|
9017906143
90179-06143 NUT |
90179-06143 |
from US $0.86 |
||
|
9033907016
|
9033907016
90339-07016 Cap(For Intake Air Connector) |
90339-07016 |
US $2.56 |
||
|
9044510026
|
9044510026
90445-10026 Hose, Vacuum, No.5 (For Front Drive Shift) |
90445-10026 |
US $4.22 |
||
|
9044708053
|
9044708053
90447-08053 New Genuine Part |
90447-08053 |
US $8.59 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9162140814
|
9162140814
91621-40814 Bolt |
91621-40814 |
US $1.44 |
||
