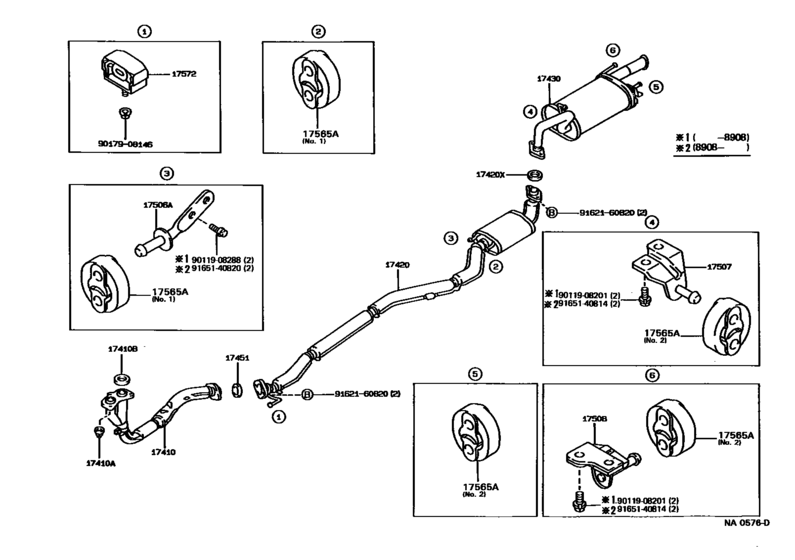

Exhaust Pipe ([10.1987 - ] (8710- )4AF..AE95) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- General
- Frame
- AE95
- grade
- XL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 10.1987
- To
- 08.1989
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-16560
Pipe Assy, Exhaust, Front
[10.1987 - 08.1989] 4AF..AE95 |
17410-16560 |
— | ||
| replacement | |||||
|
17410
|
17410
17410-16561 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [10.1987 - 08.1989] 4AF..AE95 |
17410-16561 |
US $291.20 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[05.1987 - 08.1989] 4AF#,1C..AE95,CE90 |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[05.1987 - 08.1989] 4AF#,1C..AE95,CE90 |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06004
Gasket(For Manifold Extension)
[05.1987 - 03.1989] 4AF,1C..AE95,CE90 |
90917-06004 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06039 Gasket, Exhaust Pipe[05.1987 - 03.1989] 4AF,1C..AE95,CE90 |
90917-06039 |
from US $2.36 |
||
|
17410B
|
17410B
90917-06039 Gasket, Exhaust Pipe[03.1989 - 08.1989] 4AF,1C..AE95,CE90 |
90917-06039 |
from US $2.36 |
||
|
17420
|
17420
17420-16180 Pipe Assy, Exhaust, Center[10.1987 - 05.1989] 4AF..AE95 |
17420-16180 |
US $449.90 |
||
| replacement | |||||
|
17420
|
17420
17420-16242 Pipe Assy, Exhaust, CenterEXHAUST, CENTER [10.1987 - 05.1989] 4AF..AE95 |
17420-16242 |
US $628.99 |
||
|
17420X
|
17420X
90917-06004
Gasket(For Manifold Extension)
[05.1987 - 03.1989] 4AF#,1C..AE9#,CE90 |
90917-06004 |
— | ||
| replacement | |||||
|
17420X
|
17420X
90917-06039 Gasket, Exhaust Pipe[05.1987 - 03.1989] 4AF#,1C..AE9#,CE90 |
90917-06039 |
from US $2.36 |
||
|
17420X
|
17420X
90917-06039 Gasket, Exhaust Pipe[03.1989 - 08.1993] 4AF#,1C..AE9#,CE90 |
90917-06039 |
from US $2.36 |
||
|
17430
|
17430
17430-16550 Pipe Assy, Exhaust, TailEXHAUST, TAIL [10.1987 - 05.1989] 4AF..AE95..SED |
17430-16550 |
US $334.88 |
||
| replacement | |||||
|
17430
|
17430
17430-16551 Pipe Assy, Exhaust, TailEXHAUST, TAIL [10.1987 - 05.1989] 4AF..AE95..SED |
17430-16551 |
US $479.02 |
||
|
17451
|
17451
90917-06004
Gasket(For Manifold Extension)
[05.1987 - 03.1989] 4AFE..AE95 FR; 4AF,1C,2E..AE9#,CE90,EE9# |
90917-06004 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06039 Gasket, Exhaust Pipe[05.1987 - 03.1989] 4AFE..AE95 FR; 4AF,1C,2E..AE9#,CE90,EE9# |
90917-06039 |
from US $2.36 |
||
|
17451
|
17451
90917-06039 Gasket, Exhaust Pipe[03.1989 - 08.1993] 4AFE..AE95 FR; 4AF,1C,2E..AE9#,CE90,EE9# |
90917-06039 |
from US $2.36 |
||
|
17506A
|
17506A
17506-16040 Bracket Sub-Assy, Exhaust Pipe No.1 Support[10.1987 - 09.1990] 4AF#..AE95 |
17506-16040 |
US $20.68 |
||
|
17507
|
17507
17507-16020
Bracket Sub-Assy, Exhaust Pipe No.2 Support
[10.1987 - 09.1990] 4AF#..AE95 |
17507-16020 |
— | ||
|
17508
|
17508
17508-16040 Support Sub-Assy, Exhaust Pipe, No.3[10.1987 - 09.1990] 4AF#..AE95 |
17508-16040 |
US $17.76 |
||
|
17565A
|
17565A
17565-63030 Bracket, Catalytic Converter Support[08.1987 - 08.1989] 4AF#,2E..AE95,EE97 NO.2 |
17565-63030 |
US $13.44 |
||
|
17565A
|
17565A
17565-63071 Bolt Or Ring, Exhaust Pipe Front (For Front)[10.1987 - 09.1990] 4AF#..AE95 NO.1 |
17565-63071 |
US $10.63 |
||
|
17572
|
17572
17572-15050 Bracket, Exhaust Pipe No.1 Support[05.1987 - 08.1993] 4A#,1C,2E..AE9#,CE90,EE9# |
17572-15050 |
US $22.01 |
||
|
9011908201
|
9011908201
90119-08201
Bolt (for Transmission Control Cable Bracket)
|
90119-08201 |
— | ||
| replacements | |||||
|
9011908201
|
9011908201
91611-60814 Bolt |
91611-60814 |
from US $0.82 |
||
|
9011908201
|
9011908201
90119-A0310 Bolt (For Transmission Control Cable Bracket) |
90119-A0310 |
US $1.95 |
||
|
9011908288
|
9011908288
90119-08288
New Genuine Part
|
90119-08288 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
|
9162160820
|
9162160820
91621-60820 New Genuine Part |
91621-60820 |
US $1.75 |
||
| replacement | |||||
|
9162160820
|
9162160820
91651-B0822 BOLT WWASHER |
91651-B0822 |
US $1.76 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $2.57 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $1.06 |
||
