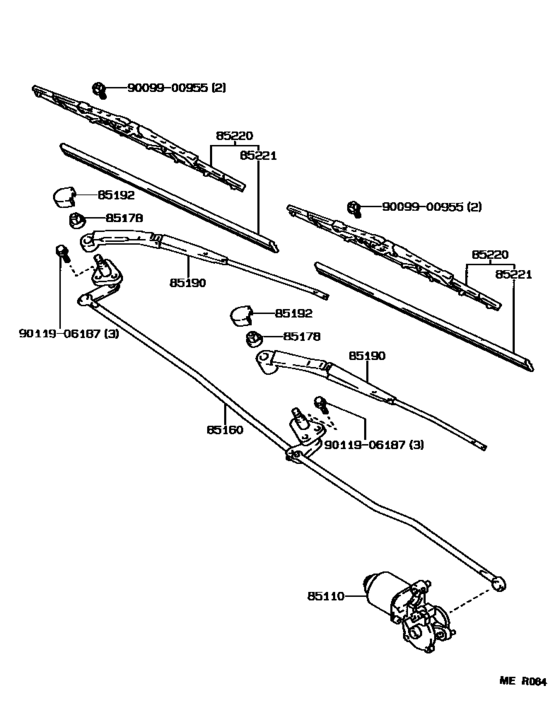

Windshield Wiper ([09.1990 - ] (9009- )RHD) Diagram Toyota COROLLA
- Year
- 1990 - 1995
- Sales region
- General
- Frame
- AE95
- grade
- XL
- body
- WG
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA WAGON
- From
- 09.1990
- To
- 08.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla Wagon
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-12622 Motor Assy, Windshield Wiper[09.1990 - 08.1995] AE95..RHD..GEN |
85110-12622 |
US $384.38 |
||
| replacement | |||||
|
85110
|
85110
85110-12682 Motor Assy, Windshield Wiper[09.1990 - 08.1995] AE95..RHD..GEN |
85110-12682 |
US $390.21 |
||
|
85160
|
85160
85160-12510 Link Assy, Windshield Wiper[09.1990 - 08.1995] AE95..RHD |
85160-12510 |
US $145.60 |
||
|
85178
|
85178
90179-08113 Nut (For Front Wiper Arm Setting)[09.1990 - 08.1995] AE95 |
90179-08113 |
from US $1.92 |
||
|
85190
|
85190
85190-12802 Arm Assy, Windshield Wiper[09.1990 - 11.1990] AE95..RHD RH |
85190-12802 |
US $57.37 |
||
| replacement | |||||
|
85190
|
85190
85190-12803
Arm Assy, Windshield Wiper
[09.1990 - 11.1990] AE95..RHD RH |
85190-12803 |
— | ||
|
85190
|
85190
85190-12803
Arm Assy, Windshield Wiper
[11.1990 - 08.1995] AE95..RHD RH |
85190-12803 |
— | ||
|
85190
|
85190
85210-12242 Arm Assy, Windshield Wiper[09.1990 - 11.1990] AE95..RHD LH |
85210-12242 |
US $60.13 |
||
| replacement | |||||
|
85190
|
85190
85210-12243
Arm Assy, Windshield Wiper
[09.1990 - 11.1990] AE95..RHD LH |
85210-12243 |
— | ||
|
85190
|
85190
85210-12243
Arm Assy, Windshield Wiper
[11.1990 - 08.1995] AE95..RHD LH |
85210-12243 |
— | ||
|
85192
|
85192
85192-12800 Cover, Windshield Wiper Arm[09.1990 - 08.1991] AE95 |
85192-12800 |
from US $2.15 |
||
| replacement | |||||
|
85192
|
85192
85292-12020 Cover, Windshield Wiper Arm[09.1990 - 08.1991] AE95 |
85292-12020 |
from US $1.52 |
||
|
85192
|
85192
85292-12020 Cover, Windshield Wiper Arm[08.1991 - 08.1995] AE95 PLANT NO.B11 |
85292-12020 |
from US $1.52 |
||
|
85220
|
85220
85212-12290 Blade Assy, Windshield Wiper[09.1990 - 08.1995] AE95..RHD RH |
85212-12290 |
US $30.23 |
||
|
85220
|
85220
85222-12700 Blade Assy, Windshield Wiper[09.1990 - 08.1995] AE95..RHD LH |
85222-12700 |
US $24.98 |
||
|
85221
|
85221
85213-12280 Blade, Windshield Wiper[11.1990 - 08.1995] AE95..RHD RH |
85213-12280 |
US $10.92 |
||
| replacement | |||||
|
85221
|
85221
85214-24H90 Blade, Rear Wiper[11.1990 - 08.1995] AE95..RHD RH |
85214-24H90 |
from US $12.59 |
||
|
85221
|
85221
85213-17040 Blade, Windshield Wiper[09.1990 - 11.1990] AE95..RHD RH |
85213-17040 |
US $10.92 |
||
| replacement | |||||
|
85221
|
85221
85214-24H90 Blade, Rear Wiper[09.1990 - 11.1990] AE95..RHD RH |
85214-24H90 |
from US $12.59 |
||
|
85221
|
85221
85223-12690
Blade, Windshield Wiper
[11.1990 - 08.1995] AE95..RHD LH |
85223-12690 |
— | ||
| replacement | |||||
|
85221
|
85221
85214-24H90 Blade, Rear Wiper[11.1990 - 08.1995] AE95..RHD LH |
85214-24H90 |
from US $12.59 |
||
|
85221
|
85221
85223-22700
Blade, Windshield Wiper
[09.1990 - 11.1990] AE95..RHD LH |
85223-22700 |
— | ||
| replacement | |||||
|
85221
|
85221
85214-24H90 Blade, Rear Wiper[09.1990 - 11.1990] AE95..RHD LH |
85214-24H90 |
from US $12.59 |
||
|
9009900955
|
9009900955
90099-00955 New Genuine Part |
90099-00955 |
US $2.88 |
||
|
9011906187
|
9011906187
90119-06187
New Genuine Part
|
90119-06187 |
— | ||
| replacement | |||||
|
9011906187
|
9011906187
90119-06490 BOLT W-WASHER |
90119-06490 |
from US $1.21 |
||
