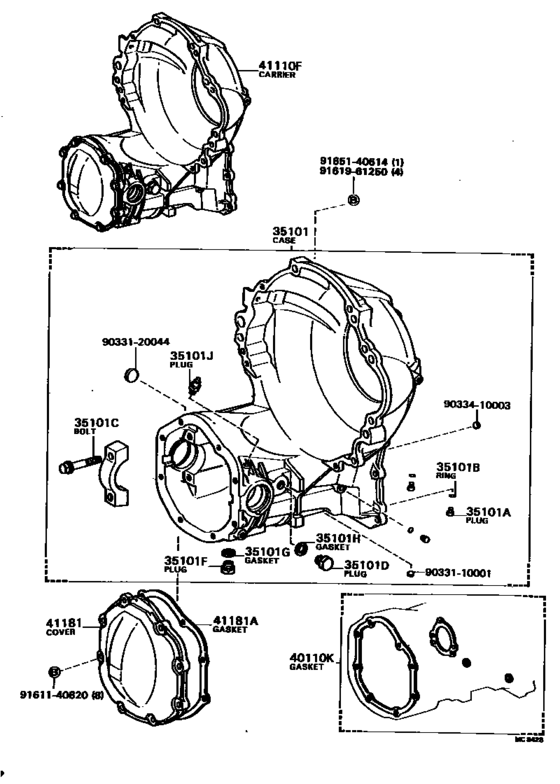

Front Axle Housing & Differential ([05.1982 - ] (8205- )3FC) Diagram Toyota COROLLA
- Year
- 1982 - 1984
- Sales region
- Japan
- Frame
- AL21
- grade
- SE
- body
- SED
- ENGINE
- 3AU
- TRANSMISSION
- ATM
- Model
- COROLLA 2
- From
- 05.1982
- To
- 08.1984
- Gear Shift Type
- 3FC
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35101
|
35101
35101-16010 Case Sub-Assy, Torque Converter & Differential[05.1982 - 08.1984] AL2#..3FC |
35101-16010 |
US $529.98 |
||
| replacement | |||||
|
35101
|
35101
35101-16011 Case Sub-Assy, Torque Converter & Differential[05.1982 - 08.1984] AL2#..3FC |
35101-16011 |
US $532.90 |
||
|
35101
|
35101
35101-16011 Case Sub-Assy, Torque Converter & Differential[08.1984 - 04.1986] AL2#..3FC |
35101-16011 |
US $532.90 |
||
|
35101A
|
35101A
90334-07006 Plug, Straight (For Overdrive Case)[05.1982 - 04.1986] AL2#..3FC |
90334-07006 |
US $2.62 |
||
|
35101B
|
35101B
90301-04002 Ring, O (For Overdrive Case)[05.1982 - 04.1986] AL2#..3FC |
90301-04002 |
US $3.79 |
||
|
35101C
|
35101C
90105-10008
Bolt, Hexagon(For Differential Bearing Cap Setting)
[05.1982 - 04.1986] AL2#..3FC |
90105-10008 |
— | ||
|
35101D
|
35101D
90341-18006 Plug (No magnet)[05.1982 - 04.1986] AL2#..3FC |
90341-18006 |
from US $2.76 |
||
|
35101F
|
35101F
90341-18057 Drain Plug (with Magnet)[05.1982 - 04.1986] AL2#..3FC |
90341-18057 |
from US $5.60 |
||
|
35101G
|
35101G
12157-10010 Gasket (For Drain Plug)[05.1982 - 04.1986] AL2#..3FC |
12157-10010 |
from US $0.78 |
||
|
35101H
|
35101H
12157-10010 Gasket (For Drain Plug)[05.1982 - 04.1986] AL2#..3FC |
12157-10010 |
from US $0.78 |
||
|
35101J
|
35101J
90930-03077 Plug, Breather (For Automatic Transmission Case)[05.1982 - 04.1986] AL2#..3FC |
90930-03077 |
from US $7.20 |
||
|
40110K
|
40110K
04412-16010 Gasket Kit, Front Differential Carrier[05.1982 - 04.1986] AL2#..3FC |
04412-16010 |
US $11.50 |
||
| replacement | |||||
|
40110K
|
40110K
04412-16011 Gasket Kit, Front Differential Carrier[05.1982 - 04.1986] AL2#..3FC |
04412-16011 |
US $10.92 |
||
|
41110F
|
41110F
41110-16050
Carrier Assy, Differential, Front
[08.1984 - 04.1986] AL21..3FC R=41:11,*AXC=Y302 |
41110-16050 |
— | ||
|
41110F
|
41110F
41110-16070 Carrier Assy, Differential, Front[05.1982 - 08.1984] AL2#..3FC R=43:12,*AXC=Y372 |
41110-16070 |
US $2,052.96 |
||
|
41181
|
41181
41181-16020 Cover, Front Differential Carrier[05.1982 - 04.1986] AL2# |
41181-16020 |
US $48.19 |
||
|
41181A
|
41181A
41182-16010 Gasket, Front Differential Carrier Cover[05.1982 - 04.1986] AL2# |
41182-16010 |
US $3.49 |
||
|
9033110001
|
9033110001
90331-10001 Plug, Tight, No.2 |
90331-10001 |
US $3.35 |
||
| replacement | |||||
|
9033110001
|
9033110001
96411-41000 Plug, Tight, No.2 |
96411-41000 |
US $2.62 |
||
|
9033120044
|
9033120044
90331-20044
Plug(For Transmission Case)
|
90331-20044 |
— | ||
|
9033410003
|
9033410003
90334-10003 New Genuine Part |
90334-10003 |
US $3.20 |
||
|
9161140820
|
9161140820
91611-40820
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40820 |
— | ||
|
9161961250
|
9161961250
91619-61250 Bolt |
91619-61250 |
from US $2.05 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $2.05 |
||
