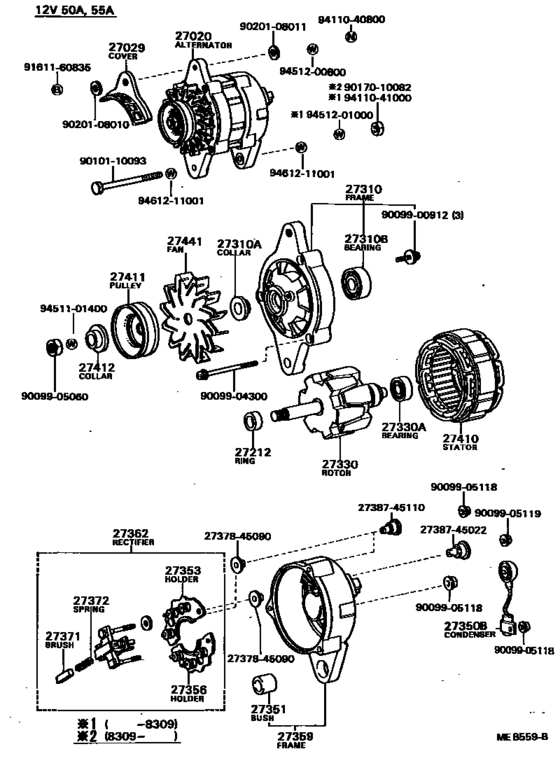

Alternator ([05.1982 - ] (8205- )) Diagram Toyota COROLLA
- Year
- 1984 - 1986
- Sales region
- Japan
- Frame
- AL21
- grade
- SR
- body
- SED
- ENGINE
- 3ASU
- TRANSMISSION
- MTM
- Model
- COROLLA 2
- From
- 08.1984
- To
- 04.1986
- Gear Shift Type
- 5F
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27020-15022 Alternator Assy[05.1982 - 04.1986] 2AU,3A#..AL2# １２Ｖ ５０Ａ,12V 50A |
27020-15022 |
US $960.96 |
||
| replacement | |||||
|
27020
|
27020
27020-15140 Alternator Assy[05.1982 - 04.1986] 2AU,3A#..AL2# １２Ｖ ５０Ａ,12V 50A |
27020-15140 |
US $1,057.06 |
||
|
27029
|
27029
27029-15012 Cover, Alternator[05.1982 - 04.1986] 2AU,3A#..AL2# 12V 45A,50A,55A |
27029-15012 |
US $8.88 |
||
|
27212
|
27212
27412-45070
Ring, Space(For Alternator Rotor)
[05.1982 - 04.1986] 2AU,3A#..AL2# 12V 50A,55A |
27412-45070 |
— | ||
|
27310
|
27310
27310-61023
Frame Assy, Drive End, Alternator
[05.1982 - 04.1986] 2AU,3A#..AL2# 12V 50A,55A |
27310-61023 |
— | ||
|
27310A
|
27310A
27412-31040
Collar Or Nut(For Alternator Drive End Frame)
[05.1982 - 04.1986] 2AU,3A#..AL2# 12V 45A,50A,55A |
27412-31040 |
— | ||
|
27310B
|
27310B
90099-10126
Bearing(For Alternator Drive End Frame)
[05.1982 - 04.1986] 2AU,3A#..AL2# 12V 45A,50A,55A |
90099-10126 |
— | ||
| replacement | |||||
|
27310B
|
27310B
90099-10125 Bearing(For Alternator Drive End Frame)[05.1982 - 04.1986] 2AU,3A#..AL2# 12V 45A,50A,55A |
90099-10125 |
US $9.61 |
||
|
27330
|
27330
27330-45070
Rotor Assy, Alternator
[05.1982 - 04.1986] 2AU,3A#..AL2# 12V 50A |
27330-45070 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-16030
Rotor Assy, Alternator
[05.1982 - 04.1986] 2AU,3A#..AL2# 12V 50A |
27330-16030 |
— | ||
|
27330A
|
27330A
90099-10111
Bearing(For Alternator Rotor)
[05.1982 - 04.1986] 2AU,3A#..AL2# 12V 45A,50A,55A |
90099-10111 |
— | ||
| replacement | |||||
|
27330A
|
27330A
90099-10116
Bearing(For Alternator Rotor)
[05.1982 - 04.1986] 2AU,3A#..AL2# 12V 45A,50A,55A |
90099-10116 |
— | ||
|
27350B
|
27350B
90099-52065 Condenser, Alternator[05.1982 - 04.1986] 2AU,3A#..AL2# 12V 45A,50A,55A |
90099-52065 |
US $3.45 |
||
| replacement | |||||
|
27350B
|
27350B
90099-52034
Condenser, Alternator
[05.1982 - 04.1986] 2AU,3A#..AL2# 12V 45A,50A,55A |
90099-52034 |
— | ||
|
27351
|
27351
27351-38051
Bush(For Alternator Rectifier End Frame)
[05.1982 - 04.1986] 2AU,3A#..AL2# 12V 45A,50A,55A |
27351-38051 |
— | ||
|
27353
|
27353
27353-34051
Holder, W/rectifier Positive, Alternator
[05.1982 - 04.1986] 2AU,3A#..AL2# 12V 50A |
27353-34051 |
— | ||
| replacement | |||||
|
27353
|
27353
27353-34121
Holder, W/rectifier Positive, Alternator
[05.1982 - 04.1986] 2AU,3A#..AL2# 12V 50A |
27353-34121 |
— | ||
|
27356
|
27356
27356-34051
Holder, W/rectifier Negative, Alternator
[05.1982 - 04.1986] 2AU,3A#..AL2# 12V 50A |
27356-34051 |
— | ||
| replacement | |||||
|
27356
|
27356
27356-34021
Holder, W/rectifier Negative, Alternator
[05.1982 - 04.1986] 2AU,3A#..AL2# 12V 50A |
27356-34021 |
— | ||
|
27359
|
27359
27359-15021
Frame, Alternator Rectifier End
[05.1982 - 04.1986] 2AU,3A#..AL2# 12V 50A,55A |
27359-15021 |
— | ||
|
27362
|
27362
27362-15021
Rectifier Assy, W/brush
[05.1982 - 04.1986] 2AU,3A#..AL2# 12V 50A |
27362-15021 |
— | ||
| replacement | |||||
|
27362
|
27362
27362-63011
Rectifier Assy, W/brush
[05.1982 - 04.1986] 2AU,3A#..AL2# 12V 50A |
27362-63011 |
— | ||
|
27371
|
27371
27371-31011 Brush, Alternator[05.1982 - 04.1986] 2AU,3A#..AL2# 12V 45A,50A,55A |
27371-31011 |
US $2.80 |
||
|
27372
|
27372
27372-31011
Spring, Alternator Brush
[05.1982 - 04.1986] 2AU,3A#..AL2# 12V 45A,50A,55A |
27372-31011 |
— | ||
|
27410
|
27410
27410-41080
Stator Assy, Alternator
[05.1982 - 04.1986] 2AU,3A#..AL2# 12V 50A |
27410-41080 |
— | ||
|
27411
|
27411
27411-26111
Pulley, Alternator
[05.1982 - 04.1986] 2AU,3A#..AL2# 12V 45A,50A,55A |
27411-26111 |
— | ||
|
27412
|
27412
27412-44030
Ring, Space(For Alternator Rotor)
[05.1982 - 04.1986] 2AU,3A#..AL2# 12V 45A,50A,55A |
27412-44030 |
— | ||
| replacement | |||||
|
27412
|
27412
27412-44031
Collar, Spacer(For Alternator Pulley)
[05.1982 - 04.1986] 2AU,3A#..AL2# 12V 45A,50A,55A |
27412-44031 |
— | ||
|
27441
|
27441
27441-34030
Fan, Alternator
[05.1982 - 04.1986] 2AU,3A#..AL2# 12V 45A,50A,55A |
27441-34030 |
— | ||
|
2737845090
|
2737845090
27378-45090
Insulator, Alternator, No.1
|
27378-45090 |
— | ||
|
2738745022
|
2738745022
27387-45022
Insulator, Terminal
|
27387-45022 |
— | ||
|
2738745110
|
2738745110
27387-45110
Insulator, Terminal
|
27387-45110 |
— | ||
|
9009900912
|
9009900912
90099-00912
New Genuine Part
|
90099-00912 |
— | ||
|
9009904300
|
9009904300
90099-04300
New Genuine Part
|
90099-04300 |
— | ||
|
9009905060
|
9009905060
90099-05060
Collar Or Nut(For Alternator Drive End Frame)
|
90099-05060 |
— | ||
|
9009905118
|
9009905118
90099-05118
New Genuine Part
|
90099-05118 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9010110093
|
9010110093
90101-10093
New Genuine Part
|
90101-10093 |
— | ||
|
9017010082
|
9017010082
90170-10082 Nut, Hexagon (For Control Rod Setting) |
90170-10082 |
from US $2.56 |
||
|
9020108010
|
9020108010
90201-08010 New Genuine Part |
90201-08010 |
US $2.91 |
||
|
9020108011
|
9020108011
90201-08011 New Genuine Part |
90201-08011 |
US $2.18 |
||
|
9161160835
|
9161160835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.44 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.56 |
||
|
9451101400
|
9451101400
94511-01400
WASHER
|
94511-01400 |
— | ||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.76 |
||
|
9461211001
|
9461211001
94612-11001 Washer, Plate (For Center Support Bearing Housing) |
94612-11001 |
from US $0.96 |
||
