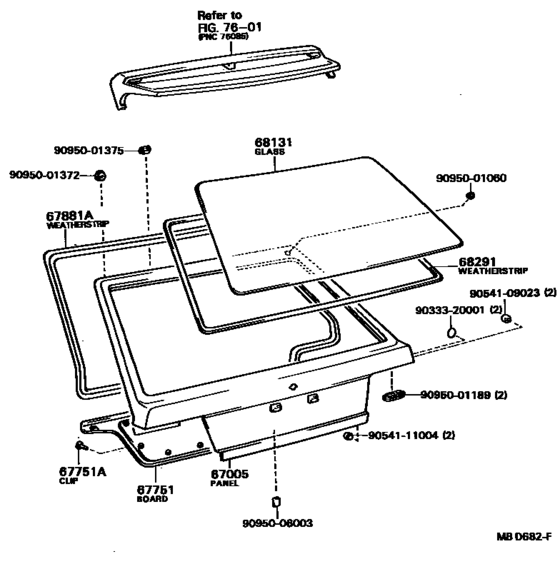

Back Door Panel & Glass ([05.1982 - ] (8205- )) Diagram Toyota COROLLA
- Year
- 1984 - 1986
- Sales region
- Japan
- Frame
- AL21
- grade
- SR
- body
- SED
- ENGINE
- 3ASU
- TRANSMISSION
- MTM
- Model
- COROLLA 2
- From
- 08.1984
- To
- 04.1986
- Gear Shift Type
- 5F
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67005
|
67005
67005-16070 Panel Sub-Assy, Back Door[05.1982 - 08.1984] AL21..SE,SR |
67005-16070 |
US $687.23 |
||
| replacement | |||||
|
67005
|
67005
67005-16071 Panel Sub-Assy, Back Door[05.1982 - 08.1984] AL21..SE,SR |
67005-16071 |
US $687.23 |
||
|
67005
|
67005
67005-16071 Panel Sub-Assy, Back Door[08.1984 - 04.1986] AL21 |
67005-16071 |
US $687.23 |
||
|
67751
|
67751
67751-16020-02 Board, Back Door Trim[05.1982 - 08.1984] AL2#..DLX,GL,SE,SR DARK WINE,DARK WINE,TRIM3# |
67751-16020-02 |
US $112.11 |
||
|
67751
|
67751
67751-16020-03 Board, Back Door Trim[05.1982 - 08.1984] AL2#..DLX,GL,SE,SR GRAY,GRAY,TRIM1# |
67751-16020-03 |
US $112.11 |
||
|
67751
|
67751
67751-16020-06 Board, Back Door Trim[05.1982 - 08.1984] AL2# BROWN,BROWN,TRIM4# |
67751-16020-06 |
US $112.11 |
||
|
67751
|
67751
67751-16020-13 Board, Back Door Trim[08.1984 - 04.1986] AL2# GRAY,GRAY,TRIM1# |
67751-16020-13 |
US $112.11 |
||
| replacement | |||||
|
67751
|
67751
67751-16020-B0 Board, Back Door Trim[08.1984 - 04.1986] AL2# GRAY,GRAY,TRIM1# |
67751-16020-B0 |
US $123.76 |
||
|
67751A
|
67751A
90467-06017-02 Clip (For Quarter Inside Trim Board)[05.1982 - 08.1984] AL2# DARK WINE,DARK WINE,TRIM3# |
90467-06017-02 |
US $1.60 |
||
| replacement | |||||
|
67751A
|
67751A
90467-06017-C0 Clip, Rear Floor Mat Set (BLACK)[05.1982 - 08.1984] AL2# DARK WINE,DARK WINE,TRIM3# |
90467-06017-C0 |
from US $1.05 |
||
|
67751A
|
67751A
90467-06017-13
Clip, Rear Floor Mat Set
[05.1982 - 08.1984] AL2# GRAY,GRAY,TRIM1# |
90467-06017-13 |
— | ||
| replacement | |||||
|
67751A
|
67751A
90467-06017-C0 Clip, Rear Floor Mat Set (BLACK)[05.1982 - 08.1984] AL2# GRAY,GRAY,TRIM1# |
90467-06017-C0 |
from US $1.05 |
||
|
67751A
|
67751A
90467-06017-26
Clip (For Quarter Inside Trim Board)
[05.1982 - 08.1984] AL2# BROWN,BROWN,TRIM4# |
90467-06017-26 |
— | ||
| replacement | |||||
|
67751A
|
67751A
90467-06017-C0 Clip, Rear Floor Mat Set (BLACK)[05.1982 - 08.1984] AL2# BROWN,BROWN,TRIM4# |
90467-06017-C0 |
from US $1.05 |
||
|
67751A
|
67751A
90467-06017-53
Clip(For Instrument Panel Under Cover)
[08.1984 - 04.1986] AL2# GRAY,GRAY,TRIM1# |
90467-06017-53 |
— | ||
| replacement | |||||
|
67751A
|
67751A
90467-06017-C0 Clip, Rear Floor Mat Set (BLACK)[08.1984 - 04.1986] AL2# GRAY,GRAY,TRIM1# |
90467-06017-C0 |
from US $1.05 |
||
|
67881A
|
67881A
67881-16040
Weatherstrip, Back Door
[05.1982 - 04.1986] AL2# |
67881-16040 |
— | ||
|
68131
|
68131
68131-16130 Glass, Back Door[05.1982 - 04.1986] AL2#..DLX,GL,SE,SR *EHTT,T=3.5 |
68131-16130 |
US $824.10 |
||
|
68291
|
68291
68291-16010
Weatherstrip, Back Door Glass
[05.1982 - 04.1986] AL2# |
68291-16010 |
— | ||
|
9033320001
|
9033320001
90333-20001 PLUG |
90333-20001 |
from US $1.12 |
||
|
9054109023
|
9054109023
90541-09023 New Genuine Part |
90541-09023 |
US $4.22 |
||
|
9054111004
|
9054111004
90541-11004 Cushion(For Back Door Panel) |
90541-11004 |
US $3.06 |
||
| replacement | |||||
|
9054111004
|
9054111004
90541-12012 Cushion(For Back Door Panel) |
90541-12012 |
from US $1.81 |
||
|
9095001060
|
9095001060
90950-01060
Plug, Hole, No.1(For Dash Panel)
|
90950-01060 |
— | ||
| replacement | |||||
|
9095001060
|
9095001060
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.92 |
||
|
9095001189
|
9095001189
90950-01189 Plug, Hole, No.3(For Dash Panel) |
90950-01189 |
US $3.79 |
||
|
9095001372
|
9095001372
90950-01372 Cover, Console Box Hole |
90950-01372 |
US $6.99 |
||
| replacement | |||||
|
9095001372
|
9095001372
90950-01959 Cover, Console Box Hole |
90950-01959 |
from US $1.92 |
||
|
9095001375
|
9095001375
90950-01375 New Genuine Part |
90950-01375 |
US $5.10 |
||
|
9095006003
|
9095006003
90950-06003
Protector, Front Side Panel, No.3
|
90950-06003 |
— | ||
| replacement | |||||
|
9095006003
|
9095006003
90950-06001 Protector, Front Side Panel, No.3 |
90950-06001 |
US $2.72 |
||
