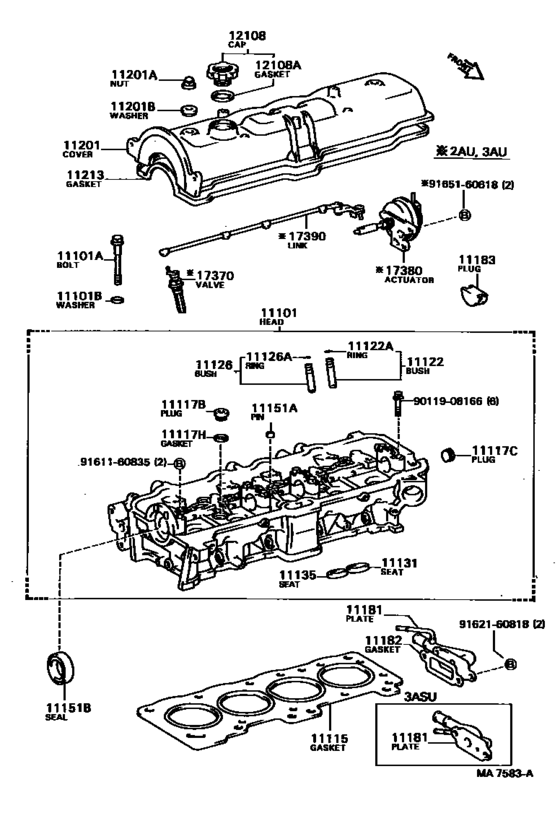

Cylinder Head ([08.1984 - ] (8408- )) Diagram Toyota COROLLA
- Year
- 1984 - 1986
- Sales region
- Japan
- Frame
- AL21
- grade
- SR
- body
- SED
- ENGINE
- 3ASU
- TRANSMISSION
- MTM
- Model
- COROLLA 2
- From
- 08.1984
- To
- 04.1986
- Gear Shift Type
- 5F
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-15060 Head Sub-Assy, Cylinder[08.1984 - 04.1986] 3ASU..AL21 |
11101-15060 |
US $1,000.27 |
||
|
11101A
|
11101A
90109-10025 Bolt(For Cylinder Head Set)[05.1982 - 04.1986] 2AU,3A#..AL2# *10-1.25PX97.5-22 |
90109-10025 |
US $8.64 |
||
|
11101B
|
11101B
90201-10344 Washer, Plate(For Cylinder Head Set)[05.1982 - 04.1986] 2AU,3A#..AL2# |
90201-10344 |
US $1.76 |
||
|
11115
|
11115
11115-15060
Gasket, Cylinder Head
[05.1982 - 04.1986] 3A#..AL21 |
11115-15060 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-15061
Gasket, Cylinder Head
[05.1982 - 04.1986] 3A#..AL21 |
11115-15061 |
— | ||
|
11117B
|
11117B
90341-20002 Plug, W/head Taper Screw, No.1[05.1982 - 04.1986] 2AU,3A#..AL2# |
90341-20002 |
from US $2.88 |
||
|
11117C
|
11117C
90344-54002
Plug, W/head Taper Screw, No.3
[05.1982 - 04.1986] 2AU,3A#..AL2# |
90344-54002 |
— | ||
|
11117H
|
11117H
90430-20004 Gasket(For Cylinder Head Screw Plug)[05.1982 - 04.1986] 2AU,3A#..AL2# |
90430-20004 |
from US $1.01 |
||
|
11122
|
11122
11122-15011 Bush, Intake Valve Guide[02.1986 - 04.1986] 2AU,3A#..AL2# ＳＴＤ,STD |
11122-15011 |
US $11.50 |
||
|
11122
|
11122
11122-15020 Bush, Intake Valve Guide[05.1982 - 02.1986] 2AU,3A#..AL2# ＳＴＤ,STD |
11122-15020 |
US $12.23 |
||
|
11122
|
11122
11123-15011 Bush, Intake Valve Guide[02.1986 - 04.1986] 2AU,3A#..AL2# Ｏ／Ｓ ０．０５,O/S 0.05 |
11123-15011 |
US $11.50 |
||
|
11122
|
11122
11123-15020 Bush, Intake Valve Guide[05.1982 - 02.1986] 2AU,3A#..AL2# Ｏ／Ｓ ０．０５,O/S 0.05 |
11123-15020 |
US $12.23 |
||
|
11122A
|
11122A
90520-10001 Ring, Shaft Snap (For Valve Guide Bush)[05.1982 - 04.1986] 2AU,3A#..AL2# |
90520-10001 |
US $1.75 |
||
|
11126
|
11126
11126-15011 Bush, Exhaust Valve Guide[02.1986 - 04.1986] 2AU,3A#..AL2# ＳＴＤ,STD |
11126-15011 |
US $11.50 |
||
|
11126
|
11126
11126-15020 Bush, Intake Valve Guide[05.1982 - 02.1986] 2AU,3A#..AL2# ＳＴＤ,STD |
11126-15020 |
US $12.58 |
||
|
11126
|
11126
11127-15011 Bush, Exhaust Valve Guide[02.1986 - 04.1986] 2AU,3A#..AL2# Ｏ／Ｓ ０．０５,O/S 0.05 |
11127-15011 |
US $11.50 |
||
|
11126
|
11126
11127-15020 Bush, Intake Valve Guide[05.1982 - 02.1986] 2AU,3A#..AL2# Ｏ／Ｓ ０．０５,O/S 0.05 |
11127-15020 |
US $11.94 |
||
|
11126A
|
11126A
90520-10001 Ring, Shaft Snap (For Valve Guide Bush)[05.1982 - 02.1986] 2AU,3A#..AL2# |
90520-10001 |
US $1.75 |
||
|
11131
|
11131
11131-15010 Seat, Intake Valve[05.1982 - 04.1986] 2AU,3A#..AL2# ＳＴＤ,STD |
11131-15010 |
US $12.38 |
||
| replacement | |||||
|
11131
|
11131
11131-15020 Seat, Intake Valve[05.1982 - 04.1986] 2AU,3A#..AL2# ＳＴＤ,STD |
11131-15020 |
US $13.25 |
||
|
11131
|
11131
11132-15010 Seat, Intake Valve[05.1982 - 04.1986] 2AU,3A#..AL2# Ｏ／Ｓ ０．０３,O/S 0.03 |
11132-15010 |
US $12.23 |
||
| replacement | |||||
|
11131
|
11131
11132-15020 Seat, Intake Valve[05.1982 - 04.1986] 2AU,3A#..AL2# Ｏ／Ｓ ０．０３,O/S 0.03 |
11132-15020 |
US $13.40 |
||
|
11135
|
11135
11135-15020 Seat, Exhaust Valve[05.1982 - 04.1986] 2AU,3A#..AL2# ＳＴＤ,STD |
11135-15020 |
US $34.65 |
||
| replacement | |||||
|
11135
|
11135
11135-15021 Seat, Exhaust Valve[05.1982 - 04.1986] 2AU,3A#..AL2# ＳＴＤ,STD |
11135-15021 |
US $17.33 |
||
|
11135
|
11135
11136-15020 Seat, Exhaust Valve[05.1982 - 04.1986] 2AU,3A#..AL2# Ｏ／Ｓ ０．０３,O/S 0.03 |
11136-15020 |
US $19.36 |
||
| replacement | |||||
|
11135
|
11135
11136-15021 Seat, Exhaust Valve[05.1982 - 04.1986] 2AU,3A#..AL2# Ｏ／Ｓ ０．０３,O/S 0.03 |
11136-15021 |
US $17.33 |
||
|
11151A
|
11151A
90253-11021 Pin, Ring[05.1982 - 04.1986] 2AU,3A#..AL2# 長さ＝８，外径＝１１ |
90253-11021 |
from US $1.50 |
||
|
11151B
|
11151B
90311-35013
Seal, Oil(For Camshaft Setting)
[08.1983 - 04.1986] 2AU,3A#..AL2# |
90311-35013 |
— | ||
| replacement | |||||
|
11151B
|
11151B
90311-35040 Seal, Oil(For Timing Chain Or Belt Cover)[08.1983 - 04.1986] 2AU,3A#..AL2# |
90311-35040 |
from US $5.60 |
||
|
11181
|
11181
11181-15080 Plate, Cylinder Head, Rear[08.1984 - 04.1986] 3ASU..AL21 |
11181-15080 |
US $37.13 |
||
|
11182
|
11182
11182-15011
Gasket, Cylinder Head Rear Plate
[05.1982 - 04.1986] 2AU,3A#..AL2# |
11182-15011 |
— | ||
| replacement | |||||
|
11182
|
11182
11182-15012
Gasket, Cylinder Head Rear Plate
[05.1982 - 04.1986] 2AU,3A#..AL2# |
11182-15012 |
— | ||
|
11183
|
11183
11183-15010 Plug, Semicircular[05.1982 - 04.1986] 2AU,3A#..AL2# |
11183-15010 |
US $8.56 |
||
|
11201
|
11201
11210-15040 Cover Sub-Assy, Cylinder Head[08.1984 - 04.1986] 2AU,3A#..AL2# |
11210-15040 |
US $183.46 |
||
|
11201
|
11201
11210-19025 Cover Sub-Assy, Cylinder Head[05.1982 - 08.1984] 2AU,3A#..AL2# |
11210-19025 |
US $179.09 |
||
|
11201A
|
11201A
90176-08007 Nut, Cap(For Cylinder Head Cover)[05.1982 - 04.1986] 2AU,3A#..AL2# |
90176-08007 |
from US $1.56 |
||
|
11201B
|
11201B
90210-09001
Washer, Seal(For Cylinder Head Cover)
[05.1982 - 04.1986] 2AU,3A#..AL2# |
90210-09001 |
— | ||
| replacement | |||||
|
11201B
|
11201B
90210-09019 Washer, Seal(For Cylinder Head Cover)[05.1982 - 04.1986] 2AU,3A#..AL2# |
90210-09019 |
from US $1.29 |
||
|
11213
|
11213
11213-15020 Gasket, Cylinder Head Cover[05.1982 - 08.1984] 2AU,3A#..AL2# |
11213-15020 |
US $29.88 |
||
|
11213
|
11213
11213-15040 Gasket, Cylinder Head Cover[08.1984 - 04.1986] 2AU,3A#..AL2# |
11213-15040 |
US $29.85 |
||
|
12108
|
12108
12180-70010
Cap Sub-Assy, Oil Filler
[03.1983 - 04.1986] 2AU,3A#..AL2# |
12180-70010 |
— | ||
| replacement | |||||
|
12108
|
12108
12180-E0010 Cap Sub-Assy, Oil Filler[03.1983 - 04.1986] 2AU,3A#..AL2# |
12180-E0010 |
US $16.26 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[05.1982 - 04.1986] 2AU,3A#..AL2# |
90430-37140 |
from US $1.25 |
||
|
9011908166
|
9011908166
90119-08166 New Genuine Part |
90119-08166 |
US $2.18 |
||
| replacement | |||||
|
9011908166
|
9011908166
90119-08598 New Genuine Part |
90119-08598 |
US $2.33 |
||
|
9161160835
|
9161160835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.44 |
||
|
9162160818
|
9162160818
91621-60818
Bolt(For Automatic Transmission Case Protector)
|
91621-60818 |
— | ||
| replacement | |||||
|
9162160818
|
9162160818
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.05 |
||
|
9165160618
|
9165160618
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
US $1.44 |
||
