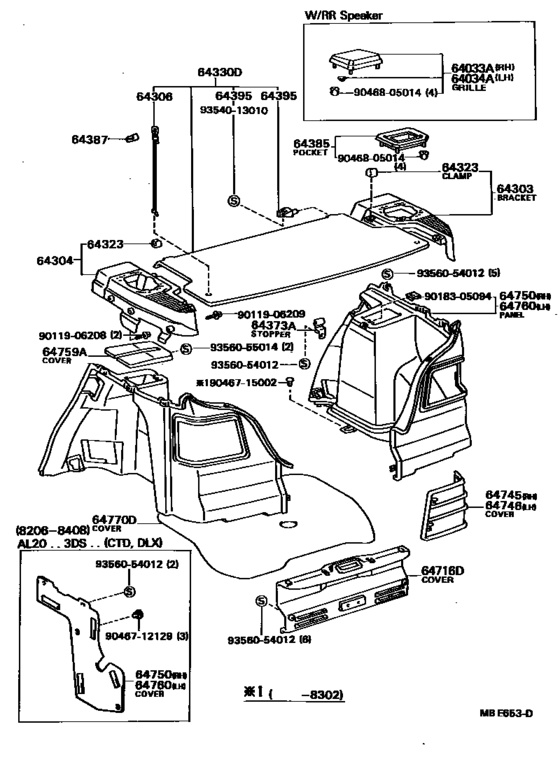

Deck Board & Deck Trim Cover ([05.1982 - ] (8205- )) Diagram Toyota COROLLA
- Year
- 1984 - 1986
- Sales region
- Japan
- Frame
- AL21
- grade
- SR
- body
- SED
- ENGINE
- 3ASU
- TRANSMISSION
- MTM
- Model
- COROLLA 2
- From
- 08.1984
- To
- 04.1986
- Gear Shift Type
- 5F
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64033A
|
64033A
64033-16010-02 Grille Sub-Assy, Rear Speaker, Rh[05.1982 - 08.1984] AL21..SE,SR DARK WINE,DARK WINE,TRIM3# |
64033-16010-02 |
US $110.66 |
||
| replacement | |||||
|
64033A
|
64033A
64033-16011-01 Grille Sub-Assy, Rear Speaker, Rh[05.1982 - 08.1984] AL21..SE,SR DARK WINE,DARK WINE,TRIM3# |
64033-16011-01 |
US $113.57 |
||
|
64033A
|
64033A
64033-16010-03 Grille Sub-Assy, Rear Speaker, Rh[05.1982 - 08.1984] AL21..SE,SR GRAY,GRAY,TRIM1# |
64033-16010-03 |
US $110.66 |
||
| replacement | |||||
|
64033A
|
64033A
64033-16011-01 Grille Sub-Assy, Rear Speaker, Rh[05.1982 - 08.1984] AL21..SE,SR GRAY,GRAY,TRIM1# |
64033-16011-01 |
US $113.57 |
||
|
64033A
|
64033A
64033-16010-06 Grille Sub-Assy, Rear Speaker, Rh[05.1982 - 08.1984] AL21..SE,SR BROWN,BROWN,TRIM4# |
64033-16010-06 |
US $110.66 |
||
| replacement | |||||
|
64033A
|
64033A
64033-16011-01 Grille Sub-Assy, Rear Speaker, Rh[05.1982 - 08.1984] AL21..SE,SR BROWN,BROWN,TRIM4# |
64033-16011-01 |
US $113.57 |
||
|
64033A
|
64033A
64033-16010-13 Grille Sub-Assy, Rear Speaker, Rh[08.1984 - 04.1986] AL21 GRAY,GRAY,TRIM1# |
64033-16010-13 |
US $110.66 |
||
| replacement | |||||
|
64033A
|
64033A
64033-16011-01 Grille Sub-Assy, Rear Speaker, Rh[08.1984 - 04.1986] AL21 GRAY,GRAY,TRIM1# |
64033-16011-01 |
US $113.57 |
||
|
64034A
|
64034A
64033-16010-02 Grille Sub-Assy, Rear Speaker, Rh[05.1982 - 08.1984] AL21..SE,SR DARK WINE,DARK WINE,TRIM3# |
64033-16010-02 |
US $110.66 |
||
| replacement | |||||
|
64034A
|
64034A
64033-16011-01 Grille Sub-Assy, Rear Speaker, Rh[05.1982 - 08.1984] AL21..SE,SR DARK WINE,DARK WINE,TRIM3# |
64033-16011-01 |
US $113.57 |
||
|
64034A
|
64034A
64033-16010-03 Grille Sub-Assy, Rear Speaker, Rh[05.1982 - 08.1984] AL21..SE,SR GRAY,GRAY,TRIM1# |
64033-16010-03 |
US $110.66 |
||
| replacement | |||||
|
64034A
|
64034A
64033-16011-01 Grille Sub-Assy, Rear Speaker, Rh[05.1982 - 08.1984] AL21..SE,SR GRAY,GRAY,TRIM1# |
64033-16011-01 |
US $113.57 |
||
|
64034A
|
64034A
64033-16010-06 Grille Sub-Assy, Rear Speaker, Rh[05.1982 - 08.1984] AL21..SE,SR BROWN,BROWN,TRIM4# |
64033-16010-06 |
US $110.66 |
||
| replacement | |||||
|
64034A
|
64034A
64033-16011-01 Grille Sub-Assy, Rear Speaker, Rh[05.1982 - 08.1984] AL21..SE,SR BROWN,BROWN,TRIM4# |
64033-16011-01 |
US $113.57 |
||
|
64034A
|
64034A
64033-16010-13 Grille Sub-Assy, Rear Speaker, Rh[08.1984 - 04.1986] AL21 GRAY,GRAY,TRIM1# |
64033-16010-13 |
US $110.66 |
||
| replacement | |||||
|
64034A
|
64034A
64033-16011-01 Grille Sub-Assy, Rear Speaker, Rh[08.1984 - 04.1986] AL21 GRAY,GRAY,TRIM1# |
64033-16011-01 |
US $113.57 |
||
|
64303
|
64303
64301-16020-02 Bracket Sub-Assy, Package Tray, Rh[01.1983 - 08.1984] AL2#..DLX,GL,SR DARK WINE,DARK WINE,TRIM3# |
64301-16020-02 |
US $117.94 |
||
|
64303
|
64303
64301-16020-03 Bracket Sub-Assy, Package Tray, Rh[01.1983 - 08.1984] AL2#..DLX,GL,SR GRAY,GRAY,TRIM1# |
64301-16020-03 |
US $117.94 |
||
| replacement | |||||
|
64303
|
64303
64301-16020-13 Bracket Sub-Assy, Package Tray, Rh[01.1983 - 08.1984] AL2#..DLX,GL,SR GRAY,GRAY,TRIM1# |
64301-16020-13 |
US $117.94 |
||
|
64303
|
64303
64301-16020-06
Bracket Sub-Assy, Package Tray, Rh
[01.1983 - 08.1984] AL2#..DLX,GL,SR BROWN,BROWN,TRIM4# |
64301-16020-06 |
— | ||
|
64303
|
64303
64301-16020-13 Bracket Sub-Assy, Package Tray, Rh[08.1984 - 04.1986] AL2#..DLX,GL,SR GRAY,GRAY,TRIM1# |
64301-16020-13 |
US $117.94 |
||
|
64304
|
64304
64302-16020-02
Bracket Sub-Assy, Package Tray, Lh
[01.1983 - 08.1984] AL2#..DLX,GL,SR DARK WINE,DARK WINE,TRIM3# |
64302-16020-02 |
— | ||
|
64304
|
64304
64302-16020-03 Bracket Sub-Assy, Package Tray, Lh[01.1983 - 08.1984] AL2#..DLX,GL,SR GRAY,GRAY,TRIM1# |
64302-16020-03 |
US $117.94 |
||
| replacement | |||||
|
64304
|
64304
64302-16020-13 Bracket Sub-Assy, Package Tray, Lh[01.1983 - 08.1984] AL2#..DLX,GL,SR GRAY,GRAY,TRIM1# |
64302-16020-13 |
US $117.94 |
||
|
64304
|
64304
64302-16020-06 Bracket Sub-Assy, Package Tray, Lh[01.1983 - 08.1984] AL2#..DLX,GL,SR BROWN,BROWN,TRIM4# |
64302-16020-06 |
US $117.94 |
||
|
64304
|
64304
64302-16020-13 Bracket Sub-Assy, Package Tray, Lh[08.1984 - 04.1986] AL2#..DLX,GL,SR GRAY,GRAY,TRIM1# |
64302-16020-13 |
US $117.94 |
||
|
64306
|
64306
64306-16020 Suspender Sub-Assy, Package Tray Trim[01.1983 - 04.1986] AL2#..GL,SE,SR |
64306-16020 |
US $9.76 |
||
| replacement | |||||
|
64306
|
64306
64306-12030
Suspender Sub-Assy, Package Tray Trim
[01.1983 - 04.1986] AL2#..GL,SE,SR |
64306-12030 |
— | ||
|
64323
|
64323
64323-10010
Clamp, Package Tray Trim, No.1
[05.1982 - 04.1986] AL2#..DLX,GL,SE,SR RH |
64323-10010 |
— | ||
|
64323
|
64323
64324-10010
Clamp, Package Tray Trim, No.1
[05.1982 - 04.1986] AL2#..DLX,GL,SE,SR LH |
64324-10010 |
— | ||
|
64330D
|
64330D
64330-16050-02 Panel Assy, Package Tray Trim[01.1983 - 08.1984] AL2#..GL,SR DARK WINE,RED/MAROON,TRIM3# |
64330-16050-02 |
US $238.78 |
||
| replacement | |||||
|
64330D
|
64330D
64330-16140-B0
Panel Assy, Package Tray Trim
[01.1983 - 08.1984] AL2#..GL,SR DARK WINE,RED/MAROON,TRIM3# |
64330-16140-B0 |
— | ||
|
64330D
|
64330D
64330-16050-03 Panel Assy, Package Tray Trim[01.1983 - 08.1984] AL2#..GL,SR GRAY,GRAY,TRIM1# |
64330-16050-03 |
US $238.78 |
||
| replacement | |||||
|
64330D
|
64330D
64330-16140-B0
Panel Assy, Package Tray Trim
[01.1983 - 08.1984] AL2#..GL,SR GRAY,GRAY,TRIM1# |
64330-16140-B0 |
— | ||
|
64330D
|
64330D
64330-16050-06 Panel Assy, Package Tray Trim[01.1983 - 08.1984] AL2#..GL,SR BROWN,BROWN,TRIM4# |
64330-16050-06 |
US $238.78 |
||
| replacement | |||||
|
64330D
|
64330D
64330-16140-B0
Panel Assy, Package Tray Trim
[01.1983 - 08.1984] AL2#..GL,SR BROWN,BROWN,TRIM4# |
64330-16140-B0 |
— | ||
|
64330D
|
64330D
64330-16140-13 Panel Assy, Package Tray Trim[08.1984 - 04.1986] AL2#..GL,SR GRAY,GRAY,TRIM1# |
64330-16140-13 |
US $199.47 |
||
| replacement | |||||
|
64330D
|
64330D
64330-16140-B0
Panel Assy, Package Tray Trim
[08.1984 - 04.1986] AL2#..GL,SR GRAY,GRAY,TRIM1# |
64330-16140-B0 |
— | ||
|
64373A
|
64373A
64373-16010 Stopper, Package Tray Trim[06.1982 - 08.1984] AL21;AL20..5DS;AL20..3DS..GL |
64373-16010 |
US $11.50 |
||
|
64385
|
64385
64385-16010-02
Pocket, Package Tray Trim
[01.1983 - 08.1984] AL2#..DLX,GL,SE,SR DARK WINE,DARK WINE,TRIM3# |
64385-16010-02 |
— | ||
|
64385
|
64385
64385-16010-03 Pocket, Package Tray Trim[01.1983 - 08.1984] AL2#..DLX,GL,SE,SR GRAY,GRAY,TRIM1# |
64385-16010-03 |
US $34.80 |
||
| replacement | |||||
|
64385
|
64385
64385-16010-13 Pocket, Package Tray Trim[01.1983 - 08.1984] AL2#..DLX,GL,SE,SR GRAY,GRAY,TRIM1# |
64385-16010-13 |
US $34.80 |
||
|
64385
|
64385
64385-16010-06 Pocket, Package Tray Trim[01.1983 - 08.1984] AL2#..DLX,GL,SE,SR BROWN,BROWN,TRIM4# |
64385-16010-06 |
US $34.80 |
||
|
64385
|
64385
64385-16010-13 Pocket, Package Tray Trim[08.1984 - 04.1986] AL2#..DLX,GL,SR GRAY,GRAY,TRIM1# |
64385-16010-13 |
US $34.80 |
||
|
64387
|
64387
64381-10010 Hanger, Package Tray Trim[06.1982 - 08.1984] AL21;AL20..5DS;AL20..3DS..GL |
64381-10010 |
from US $4.80 |
||
|
64395
|
64395
64373-20020 Stopper, Package Tray Trim[11.1985 - 04.1986] AL2#..GL,SR FR-LH |
64373-20020 |
US $4.08 |
||
|
64395
|
64395
64379-20010 Stopper, Package Tray Trim[11.1985 - 04.1986] AL2#..GL,SR FR-RH |
64379-20010 |
US $4.08 |
||
|
64395
|
64395
64395-16010
Pin, Package Tray Trim Hinge
[06.1982 - 08.1984] AL21;AL20..5DS;AL20..3DS..GL RR |
64395-16010 |
— | ||
|
64716D
|
64716D
64716-16030-02 Cover, Deck Trim, Rear[05.1982 - 08.1984] AL2#..DLX,GL,SE,SR DARK WINE,DARK WINE,TRIM3# |
64716-16030-02 |
US $186.37 |
||
| replacement | |||||
|
64716D
|
64716D
64716-16031-02 Cover, Deck Trim, Rear[05.1982 - 08.1984] AL2#..DLX,GL,SE,SR DARK WINE,DARK WINE,TRIM3# |
64716-16031-02 |
US $174.72 |
||
|
64716D
|
64716D
64716-16030-03 Cover, Deck Trim, Rear[05.1982 - 08.1984] AL2#..DLX,GL,SE,SR GRAY,GRAY,TRIM1# |
64716-16030-03 |
US $186.37 |
||
|
64716D
|
64716D
64716-16030-06 Cover, Deck Trim, Rear[05.1982 - 08.1984] AL2# BROWN,BROWN,TRIM4# |
64716-16030-06 |
US $186.37 |
||
|
64716D
|
64716D
64716-16031-03 Cover, Deck Trim, Rear[08.1984 - 04.1986] AL2# GRAY,GRAY,TRIM1# |
64716-16031-03 |
US $174.72 |
||
|
64745
|
64745
64745-16020-02 Cover, Rear Combination Lamp Service, Rh[06.1982 - 08.1984] AL21;AL20..5DS;AL20..3DS..GL DARK WINE,DARK WINE,TRIM3# |
64745-16020-02 |
US $31.30 |
||
|
64745
|
64745
64745-16020-03 Cover, Rear Combination Lamp Service, Rh[06.1982 - 08.1984] AL21;AL20..5DS;AL20..3DS..GL GRAY,GRAY,TRIM1# |
64745-16020-03 |
US $31.30 |
||
| replacement | |||||
|
64745
|
64745
64745-16020-13 Cover, Rear Combination Lamp Service, Rh[06.1982 - 08.1984] AL21;AL20..5DS;AL20..3DS..GL GRAY,GRAY,TRIM1# |
64745-16020-13 |
US $31.30 |
||
|
64745
|
64745
64745-16020-06 Cover, Rear Combination Lamp Service, Rh[06.1982 - 08.1984] AL21;AL20..5DS;AL20..3DS..GL BROWN,BROWN,TRIM4# |
64745-16020-06 |
US $31.30 |
||
|
64745
|
64745
64745-16020-13 Cover, Rear Combination Lamp Service, Rh[08.1984 - 04.1986] AL2#..DLX,GL,SR GRAY,GRAY,TRIM1# |
64745-16020-13 |
US $31.30 |
||
|
64746
|
64746
64746-16020-02 Cover, Rear Combination Lamp Service, Lh[06.1982 - 08.1984] AL21;AL20..5DS;AL20..3DS..GL DARK WINE,DARK WINE,TRIM3# |
64746-16020-02 |
US $31.30 |
||
|
64746
|
64746
64746-16020-03 Cover, Rear Combination Lamp Service, Lh[06.1982 - 08.1984] AL21;AL20..5DS;AL20..3DS..GL GRAY,GRAY,TRIM1# |
64746-16020-03 |
US $31.30 |
||
| replacement | |||||
|
64746
|
64746
64746-16020-13 Cover, Rear Combination Lamp Service, Lh[06.1982 - 08.1984] AL21;AL20..5DS;AL20..3DS..GL GRAY,GRAY,TRIM1# |
64746-16020-13 |
US $31.30 |
||
|
64746
|
64746
64746-16020-06 Cover, Rear Combination Lamp Service, Lh[06.1982 - 08.1984] AL21;AL20..5DS;AL20..3DS..GL BROWN,BROWN,TRIM4# |
64746-16020-06 |
US $31.30 |
||
|
64746
|
64746
64746-16020-13 Cover, Rear Combination Lamp Service, Lh[08.1984 - 04.1986] AL2#..DLX,GL,SR GRAY,GRAY,TRIM1# |
64746-16020-13 |
US $31.30 |
||
|
64750
|
64750
64714-16030-02 Panel Assy, Deck Side Trim, Rh[06.1982 - 08.1984] AL21;AL20..5DS;AL20..3DS..GL DARK WINE,DARK WINE,TRIM3# |
64714-16030-02 |
US $224.22 |
||
| replacement | |||||
|
64750
|
64750
64714-16030-D0 Panel Assy, Deck Side Trim, Rh[06.1982 - 08.1984] AL21;AL20..5DS;AL20..3DS..GL DARK WINE,DARK WINE,TRIM3# |
64714-16030-D0 |
US $214.03 |
||
|
64750
|
64750
64714-16030-03 Panel Assy, Deck Side Trim, Rh[06.1982 - 08.1984] AL21;AL20..5DS;AL20..3DS..GL GRAY,GRAY,TRIM1# |
64714-16030-03 |
US $224.22 |
||
|
64750
|
64750
64714-16030-06 Panel Assy, Deck Side Trim, Rh[06.1982 - 08.1984] AL21;AL20..5DS;AL20..3DS..GL BROWN,BROWN,TRIM4# |
64714-16030-06 |
US $224.22 |
||
|
64750
|
64750
64714-16030-13 Panel Assy, Deck Side Trim, Rh[08.1984 - 04.1986] AL2#..DLX,GL,SR GRAY,GRAY,TRIM1# |
64714-16030-13 |
US $224.22 |
||
| replacement | |||||
|
64750
|
64750
64714-16030-D0 Panel Assy, Deck Side Trim, Rh[08.1984 - 04.1986] AL2#..DLX,GL,SR GRAY,GRAY,TRIM1# |
64714-16030-D0 |
US $214.03 |
||
|
64759A
|
64759A
58731-16010-02 Cover, Shock Absorber Head[05.1982 - 08.1984] AL2#..DLX,GL,SE,SR W/PACKAGE TRIM,RH,DARK WINE,DARK WINE,TRIM3# |
58731-16010-02 |
US $25.48 |
||
| replacement | |||||
|
64759A
|
64759A
58731-16010-13 Cover, Shock Absorber Head[05.1982 - 08.1984] AL2#..DLX,GL,SE,SR W/PACKAGE TRIM,RH,DARK WINE,DARK WINE,TRIM3# |
58731-16010-13 |
US $25.48 |
||
|
64759A
|
64759A
58731-16010-03 Cover, Shock Absorber Head[05.1982 - 08.1984] AL2#..DLX,GL,SE,SR W/PACKAGE TRIM,RH,GRAY,GRAY,TRIM1# |
58731-16010-03 |
US $25.48 |
||
| replacement | |||||
|
64759A
|
64759A
58731-16010-13 Cover, Shock Absorber Head[05.1982 - 08.1984] AL2#..DLX,GL,SE,SR W/PACKAGE TRIM,RH,GRAY,GRAY,TRIM1# |
58731-16010-13 |
US $25.48 |
||
|
64759A
|
64759A
58731-16010-06
Cover, Shock Absorber Head
[05.1982 - 08.1984] AL2#..DLX,GL,SE,SR W/PACKAGE TRIM,RH,BROWN,BROWN,TRIM4# |
58731-16010-06 |
— | ||
|
64759A
|
64759A
58731-16010-13 Cover, Shock Absorber Head[08.1984 - 04.1986] AL2#..DLX,GL,SR W/PACKAGE TRIM,RH,GRAY,GRAY,TRIM1# |
58731-16010-13 |
US $25.48 |
||
|
64759A
|
64759A
58732-16010-02 Cover, Shock Absorber Head[05.1982 - 08.1984] AL2#..DLX,GL,SE,SR W/PACKAGE TRIM,LH,DARK WINE,DARK WINE,TRIM3# |
58732-16010-02 |
US $25.48 |
||
| replacement | |||||
|
64759A
|
64759A
58732-16010-13 Cover, Shock Absorber Head[05.1982 - 08.1984] AL2#..DLX,GL,SE,SR W/PACKAGE TRIM,LH,DARK WINE,DARK WINE,TRIM3# |
58732-16010-13 |
US $25.48 |
||
|
64759A
|
64759A
58732-16010-03 Cover, Shock Absorber Head[05.1982 - 08.1984] AL2#..DLX,GL,SE,SR W/PACKAGE TRIM,LH,GRAY,GRAY,TRIM1# |
58732-16010-03 |
US $25.48 |
||
| replacement | |||||
|
64759A
|
64759A
58732-16010-13 Cover, Shock Absorber Head[05.1982 - 08.1984] AL2#..DLX,GL,SE,SR W/PACKAGE TRIM,LH,GRAY,GRAY,TRIM1# |
58732-16010-13 |
US $25.48 |
||
|
64759A
|
64759A
58732-16010-06 Cover, Shock Absorber Head[05.1982 - 08.1984] AL2#..DLX,GL,SE,SR W/PACKAGE TRIM,LH,BROWN,BROWN,TRIM4# |
58732-16010-06 |
US $25.48 |
||
|
64759A
|
64759A
58732-16010-13 Cover, Shock Absorber Head[08.1984 - 04.1986] AL2#..DLX,GL,SR W/PACKAGE TRIM,LH,GRAY,GRAY,TRIM1# |
58732-16010-13 |
US $25.48 |
||
|
64760
|
64760
64715-16030-02 Panel Assy, Deck Side Trim, Lh[06.1982 - 08.1984] AL21;AL20..5DS;AL20..3DS..GL DARK WINE,DARK WINE,TRIM3# |
64715-16030-02 |
US $224.22 |
||
| replacement | |||||
|
64760
|
64760
64715-16030-D0 Panel Assy, Deck Side Trim, Lh[06.1982 - 08.1984] AL21;AL20..5DS;AL20..3DS..GL DARK WINE,DARK WINE,TRIM3# |
64715-16030-D0 |
US $214.03 |
||
|
64760
|
64760
64715-16030-03 Panel Assy, Deck Side Trim, Lh[06.1982 - 08.1984] AL21;AL20..5DS;AL20..3DS..GL GRAY,GRAY,TRIM1# |
64715-16030-03 |
US $224.22 |
||
|
64760
|
64760
64715-16030-06 Panel Assy, Deck Side Trim, Lh[06.1982 - 08.1984] AL21;AL20..5DS;AL20..3DS..GL BROWN,BROWN,TRIM4# |
64715-16030-06 |
US $224.22 |
||
|
64760
|
64760
64715-16030-13 Panel Assy, Deck Side Trim, Lh[08.1984 - 04.1986] AL2#..DLX,GL,SR GRAY,GRAY,TRIM1# |
64715-16030-13 |
US $224.22 |
||
| replacement | |||||
|
64760
|
64760
64715-16030-B0 Panel Assy, Deck Side Trim, Lh[08.1984 - 04.1986] AL2#..DLX,GL,SR GRAY,GRAY,TRIM1# |
64715-16030-B0 |
US $214.03 |
||
|
64770D
|
64770D
64770-16030 Cover Assy, Spare Wheel[05.1982 - 04.1986] AL2#..GL,SE,SR |
64770-16030 |
US $43.83 |
||
| replacement | |||||
|
64770D
|
64770D
64770-12060 Cover Assy, Spare Wheel[05.1982 - 04.1986] AL2#..GL,SE,SR |
64770-12060 |
US $51.25 |
||
|
9011906208
|
9011906208
90119-06208
New Genuine Part
|
90119-06208 |
— | ||
|
9011906209
|
9011906209
90119-06209 New Genuine Part |
90119-06209 |
US $2.18 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.98 |
||
|
9046712129
|
9046712129
90467-12129 Clip(for Front Floor Carpet) |
90467-12129 |
US $3.06 |
||
| replacement | |||||
|
9046712129
|
9046712129
90467-12129-31 Clip(For Front Floor Carpet) |
90467-12129-31 |
US $4.16 |
||
|
9046715002
|
9046715002
90467-15002 Clip(For Deck Side Trim Panel) |
90467-15002 |
US $3.79 |
||
|
9046805014
|
9046805014
90468-05014 Retainer, Front Door Lower Frame Bracket Garnish |
90468-05014 |
from US $3.68 |
||
|
9354013010
|
9354013010
93540-13010 SCREW |
93540-13010 |
from US $2.33 |
||
|
9356054012
|
9356054012
93560-54012 Screw |
93560-54012 |
from US $0.70 |
||
|
9356055014
|
9356055014
93560-55014 SCREW |
93560-55014 |
from US $0.70 |
||
