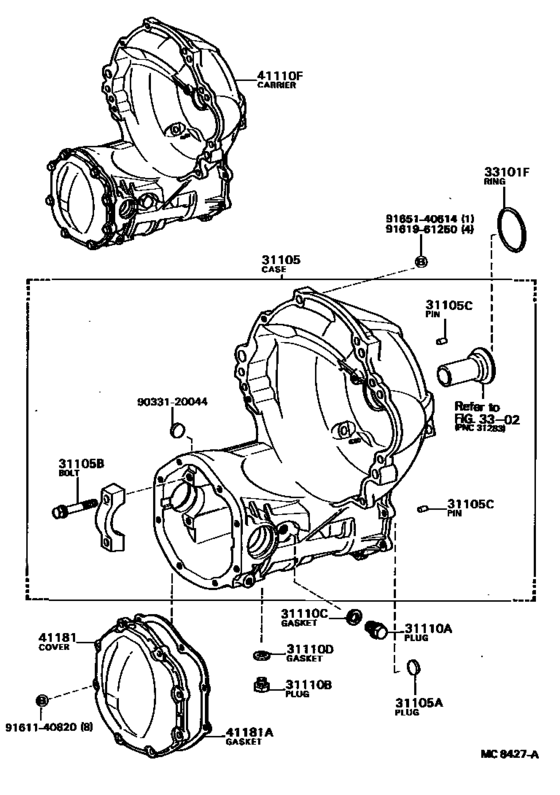

Front Axle Housing & Differential ([05.1982 - ] (8205- )MTM) Diagram Toyota COROLLA
- Year
- 1984 - 1986
- Sales region
- Japan
- Frame
- AL21
- grade
- SR
- body
- SED
- ENGINE
- 3ASU
- TRANSMISSION
- MTM
- Model
- COROLLA 2
- From
- 08.1984
- To
- 04.1986
- Gear Shift Type
- 5F
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31105
|
31105
31105-16011 Case Sub-Assy, Transaxle(Mtm)[05.1982 - 08.1984] AL2#..MTM |
31105-16011 |
US $578.03 |
||
| replacement | |||||
|
31105
|
31105
31105-16012 Case Sub-Assy, Transaxle(Mtm)[05.1982 - 08.1984] AL2#..MTM |
31105-16012 |
US $582.40 |
||
|
31105
|
31105
31105-16012 Case Sub-Assy, Transaxle(Mtm)[08.1984 - 04.1986] AL2#..MTM |
31105-16012 |
US $582.40 |
||
|
31105B
|
31105B
90105-10008
Bolt, Hexagon(For Differential Bearing Cap Setting)
[05.1982 - 04.1986] AL2#..MTM |
90105-10008 |
— | ||
|
31105C
|
31105C
90250-10232 Pin, Straight(For Engine Rear Oil Seal)[05.1982 - 04.1986] AL2#..MTM |
90250-10232 |
US $1.60 |
||
|
31110A
|
31110A
90341-18006 Plug (No magnet)[05.1982 - 04.1986] AL2#..MTM |
90341-18006 |
US $2.88 |
||
|
31110B
|
31110B
90341-18057 Drain Plug (with Magnet)[05.1982 - 04.1986] AL2#..MTM |
90341-18057 |
US $5.60 |
||
|
31110C
|
31110C
12157-10010 Gasket (For Drain Plug)[05.1982 - 04.1986] AL2#..MTM |
12157-10010 |
from US $1.60 |
||
|
31110D
|
31110D
12157-10010 Gasket (For Drain Plug)[05.1982 - 04.1986] AL2#..MTM |
12157-10010 |
from US $1.60 |
||
|
33101F
|
33101F
90301-54002
Ring, O(For Input Front)
[05.1982 - 04.1986] AL2#..MTM |
90301-54002 |
— | ||
|
41110F
|
41110F
41110-16021
Carrier Assy, Differential, Front
[05.1982 - 04.1986] AL21..5F..SR R=41:11,*AXC=Y302 |
41110-16021 |
— | ||
|
41181
|
41181
41181-16020 Cover, Front Differential Carrier[05.1982 - 04.1986] AL2# |
41181-16020 |
US $48.19 |
||
|
41181A
|
41181A
41182-16010 Gasket, Front Differential Carrier Cover[05.1982 - 04.1986] AL2# |
41182-16010 |
US $3.49 |
||
|
9033120044
|
9033120044
90331-20044
Plug(For Transmission Case)
|
90331-20044 |
— | ||
|
9161140820
|
9161140820
91611-40820
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40820 |
— | ||
|
9161961250
|
9161961250
91619-61250 Bolt |
91619-61250 |
from US $2.05 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
