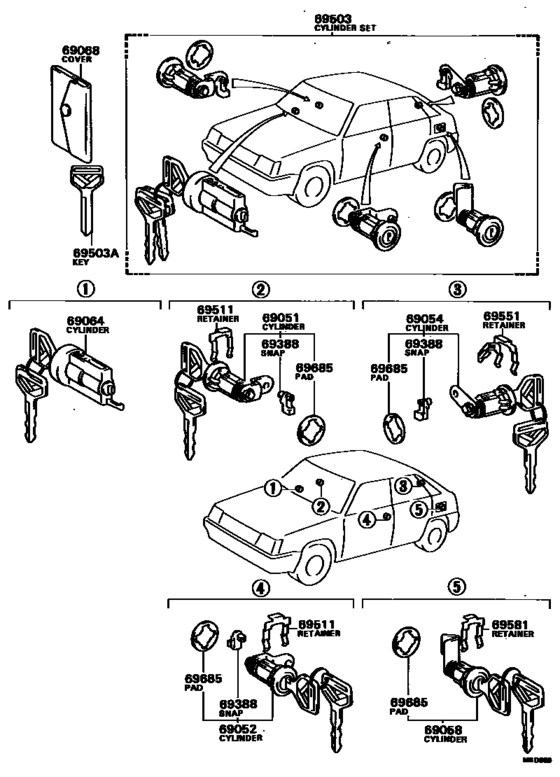

Lock Cylinder Set ([05.1982 - ] (8205- )) Diagram Toyota COROLLA
- Year
- 1984 - 1986
- Sales region
- Japan
- Frame
- AL21
- grade
- SR
- body
- SED
- ENGINE
- 3ASU
- TRANSMISSION
- MTM
- Model
- COROLLA 2
- From
- 08.1984
- To
- 04.1986
- Gear Shift Type
- 5F
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69051
|
69051
69051-16030 Cylinder & Key Set, Door Lock, Rh[05.1982 - 04.1986] AL2# |
69051-16030 |
US $48.63 |
||
|
69052
|
69052
69052-16030 Cylinder & Key Set, Door Lock, Lh[05.1982 - 04.1986] AL2# |
69052-16030 |
US $48.63 |
||
|
69054
|
69054
69055-16070 Cylinder & Key Set, Back Door Lock[05.1982 - 04.1986] AL2# |
69055-16070 |
US $50.96 |
||
|
69058
|
69058
69058-16030 Cylinder & Key Set, Fuel Filler Lid[05.1982 - 04.1986] AL2# |
69058-16030 |
US $48.63 |
||
| replacement | |||||
|
69058
|
69058
69058-12110 Cylinder & Key Set, Fuel Filler LidFUEL FILLER LID [05.1982 - 04.1986] AL2# |
69058-12110 |
US $49.94 |
||
|
69064
|
69064
69057-16040 Cylinder & Key Set, Ignition Switch Lock[05.1982 - 04.1986] AL2# |
69057-16040 |
US $90.27 |
||
| replacement | |||||
|
69064
|
69064
69057-16061
Cylinder & Key Set, Ignition Switch Lock
[05.1982 - 04.1986] AL2# |
69057-16061 |
— | ||
|
69068
|
69068
69555-17010
Cover Sub-Assy, Key
[08.1984 - 04.1986] AL2# |
69555-17010 |
— | ||
|
69068
|
69068
69555-20010 Cover Sub-Assy, Key[05.1982 - 08.1984] AL2# |
69555-20010 |
US $12.48 |
||
|
69388
|
69388
69759-24080 Snap, Front Door Lock Control Rod[05.1982 - 04.1986] AL2# RH,BACK DOOR |
69759-24080 |
US $3.20 |
||
|
69388
|
69388
69759-24090 Snap, Front Door Lock Control Rod[05.1982 - 04.1986] AL2# LH |
69759-24090 |
US $2.88 |
||
|
69503
|
69503
69005-16100 Cylinder Set, Lock[05.1982 - 04.1986] AL2# |
69005-16100 |
US $253.34 |
||
|
69503A
|
69503A
90999-00085 Key, Blank[05.1982 - 04.1986] AL2# マスターキー |
90999-00085 |
US $8.37 |
||
|
69511
|
69511
69511-32010 Retainer, Front Door Lock Cylinder[05.1982 - 04.1986] AL2# |
69511-32010 |
US $2.56 |
||
|
69551
|
69551
69501-16010 Retainer, Back Door Lock Cylinder[05.1982 - 04.1986] AL2# |
69501-16010 |
US $5.39 |
||
|
69581
|
69581
69511-32010 Retainer, Front Door Lock Cylinder[05.1982 - 04.1986] AL2# |
69511-32010 |
US $2.56 |
||
|
69685
|
69685
69513-32010 Pad, Lock Cylinder[05.1982 - 04.1986] AL2# |
69513-32010 |
from US $1.92 |
||
|
69685
|
69685
69563-32010
Pad, Luggage Compartment Door Lock Cylinder
[05.1982 - 04.1986] AL2# BACK DOOR |
69563-32010 |
— | ||
