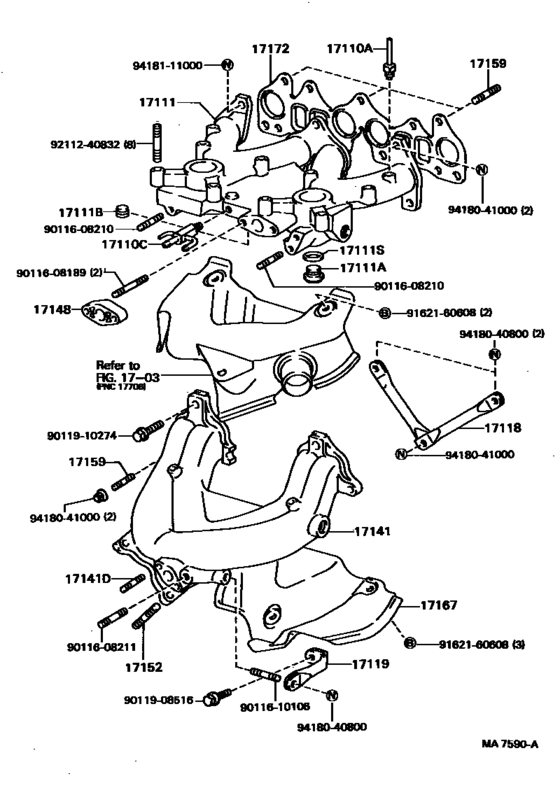

Manifold ([08.1984 - ] (8408- )3ASU) Diagram Toyota COROLLA
- Year
- 1984 - 1986
- Sales region
- Japan
- Frame
- AL21
- grade
- SR
- body
- SED
- ENGINE
- 3ASU
- TRANSMISSION
- MTM
- Model
- COROLLA 2
- From
- 08.1984
- To
- 04.1986
- Gear Shift Type
- 5F
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17110A
|
17110A
90404-51051 Union, Vacuum Hose[08.1984 - 04.1986] 3ASU..AL21 |
90404-51051 |
US $3.64 |
||
|
17110C
|
17110C
90404-51043 Union(For Air Cleaner To Manifold)[08.1984 - 04.1986] 3ASU..AL21 |
90404-51043 |
US $7.72 |
||
|
17111
|
17111
17111-15050 Manifold, Intake[08.1984 - 04.1986] 3ASU..AL21 |
17111-15050 |
US $246.06 |
||
|
17111A
|
17111A
90341-22003 Plug, No.1[08.1984 - 04.1986] 3ASU..AL21 |
90341-22003 |
US $5.97 |
||
|
17111B
|
17111B
90344-53015 Plug, W/head Taper Screw, No.1[08.1984 - 04.1986] 3ASU..AL21 |
90344-53015 |
US $4.80 |
||
|
17111S
|
17111S
90430-22002 Gasket(For Manifold Plug)[08.1984 - 04.1986] 3ASU..AL21 |
90430-22002 |
US $4.48 |
||
|
17118
|
17118
17118-15040 Stay, Manifold[05.1982 - 08.1984] 2AU,3A#..AL2# |
17118-15040 |
US $15.87 |
||
|
17118
|
17118
17118-15060 Stay, Manifold[08.1984 - 04.1986] 3ASU..AL21 |
17118-15060 |
US $32.76 |
||
|
17119
|
17119
17139-15010 Stay, Manifold, No.2[08.1984 - 04.1986] 3ASU..AL21 |
17139-15010 |
US $22.13 |
||
|
17141
|
17141
17140-15070 Manifold, Exhaust[05.1982 - 08.1984] 2AU,3A#..AL2# |
17140-15070 |
US $324.69 |
||
|
17141
|
17141
17141-15100 Manifold, Exhaust[08.1984 - 04.1986] 3ASU..AL21 |
17141-15100 |
US $385.84 |
||
|
17141D
|
17141D
90116-08128 Bolt, Stud(For Manifold Stay)[05.1982 - 04.1986] 2AU,3A#..AL2# |
90116-08128 |
US $4.16 |
||
|
17148
|
17148
25617-15010 Plate, Exhaust Manifold(For Egr Inlet)[08.1984 - 04.1986] 3ASU..AL21 |
25617-15010 |
US $21.55 |
||
|
17152
|
17152
90116-10058 Bolt, Stud(For Manifold Extension)[05.1982 - 04.1986] 2AU,3A#..AL2# |
90116-10058 |
from US $2.44 |
||
|
17159
|
17159
90116-10090 Bolt, Stud(For Manifold To Cylinder Head)[08.1984 - 04.1986] 3ASU..AL21 L=44,S=17&22 |
90116-10090 |
US $2.77 |
||
|
17159
|
17159
92112-61032 Bolt, Stud(For Manifold To Cylinder Head)[05.1982 - 04.1986] 2AU,3A#..AL2# L=44,S=12&20 |
92112-61032 |
US $3.06 |
||
|
17167
|
17167
17932-15060 Insulator, Exhaust Manifold Heat, No.1[08.1984 - 04.1986] 3ASU..AL21 |
17932-15060 |
US $31.16 |
||
|
17172
|
17172
17172-15010 Gasket, Manifold To Cylinder Head[05.1982 - 04.1986] 2AU,3A#..AL2# |
17172-15010 |
US $18.35 |
||
| replacement | |||||
|
17172
|
17172
17172-14011 Gasket, Manifold To Cylinder Head[05.1982 - 04.1986] 2AU,3A#..AL2# |
17172-14011 |
US $15.72 |
||
|
9011608189
|
9011608189
90116-08189 New Genuine Part |
90116-08189 |
US $4.37 |
||
|
9011608210
|
9011608210
90116-08210 New Genuine Part |
90116-08210 |
US $2.48 |
||
|
9011608211
|
9011608211
90116-08211
New Genuine Part
|
90116-08211 |
— | ||
|
9011610106
|
9011610106
90116-10106 Bolt, Stud(For Manifold To Cylinder Head) |
90116-10106 |
US $3.35 |
||
| replacement | |||||
|
9011610106
|
9011610106
90116-10150 Bolt, Stud(For Manifold To Cylinder Head) |
90116-10150 |
US $3.68 |
||
|
9011908516
|
9011908516
90119-08516 BOLT |
90119-08516 |
from US $0.84 |
||
|
9011910274
|
9011910274
90119-10274 New Genuine Part |
90119-10274 |
US $2.62 |
||
| replacement | |||||
|
9011910274
|
9011910274
90119-10038 New Genuine Part |
90119-10038 |
US $5.76 |
||
|
9162160608
|
9162160608
91621-60608 New Genuine Part |
91621-60608 |
US $4.22 |
||
| replacement | |||||
|
9162160608
|
9162160608
91651-B0610 BOLTWWASHER |
91651-B0610 |
from US $1.92 |
||
|
9211240832
|
9211240832
92112-40832 Bolt, Stud(For Manifold To Carburetor) |
92112-40832 |
US $2.48 |
||
|
9418040800
|
9418040800
94180-40800 NUT |
94180-40800 |
US $2.40 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.42 |
||
|
9418111000
|
9418111000
94181-11000 Nut(For Backing Plate To Rear Axle Housing Setting) |
94181-11000 |
US $2.88 |
||
