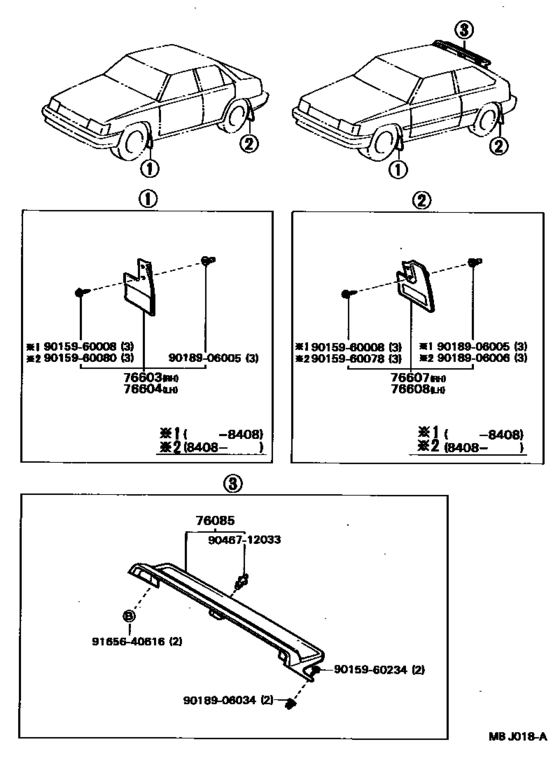

Mudguard & Spoiler ([05.1982 - ] (8205- )) Diagram Toyota COROLLA
- Year
- 1984 - 1986
- Sales region
- Japan
- Frame
- AL21
- grade
- SR
- body
- SED
- ENGINE
- 3ASU
- TRANSMISSION
- MTM
- Model
- COROLLA 2
- From
- 08.1984
- To
- 04.1986
- Gear Shift Type
- 5F
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76603
|
76603
76603-19085
Mudguard Sub-Assy, Front Fender, Rh
[05.1982 - 08.1984] AL21..3AHU |
76603-19085 |
— | ||
|
76603
|
76603
76603-19125
Mudguard Sub-Assy, Front Fender, Rh
[08.1984 - 04.1986] AL21; AL20..3DS..GL; AL20..DLX WINDY |
76603-19125 |
— | ||
|
76604
|
76604
76604-19085
Mudguard Sub-Assy, Front Fender, Lh
[05.1982 - 08.1984] AL21..3AHU |
76604-19085 |
— | ||
|
76604
|
76604
76604-19125
Mudguard Sub-Assy, Front Fender, Lh
[08.1984 - 04.1986] AL21; AL20..3DS..GL; AL20..DLX WINDY |
76604-19125 |
— | ||
|
76607
|
76607
76607-19135
Mudguard Sub-Assy, Quarter Panel, Rear Rh
[05.1982 - 08.1984] AL21..3AHU |
76607-19135 |
— | ||
|
76607
|
76607
76607-19215 Mudguard Sub-Assy, Quarter Panel, Rear Rh[08.1984 - 04.1986] AL21; AL20..3DS..GL; AL20..DLX WINDY |
76607-19215 |
US $26.79 |
||
| replacement | |||||
|
76607
|
76607
76607-16050 Mudguard Sub-Assy, Quarter Panel, Rear Rh[08.1984 - 04.1986] AL21; AL20..3DS..GL; AL20..DLX WINDY |
76607-16050 |
US $55.62 |
||
|
76608
|
76608
76608-19135
Mudguard Sub-Assy, Quarter Panel, Rear Lh
[05.1982 - 08.1984] AL21..3AHU |
76608-19135 |
— | ||
|
76608
|
76608
76608-19215 Mudguard Sub-Assy, Quarter Panel, Rear Lh[08.1984 - 04.1986] AL21; AL20..3DS..GL; AL20..DLX WINDY |
76608-19215 |
US $26.79 |
||
| replacement | |||||
|
76608
|
76608
76608-16050 Mudguard Sub-Assy, Quarter Panel, Rear Lh[08.1984 - 04.1986] AL21; AL20..3DS..GL; AL20..DLX WINDY |
76608-16050 |
US $55.62 |
||
|
9015960008
|
9015960008
90159-60008 SCREW |
90159-60008 |
US $1.12 |
||
|
9015960078
|
9015960078
90159-60078 SCREW |
90159-60078 |
US $1.92 |
||
|
9015960080
|
9015960080
90159-60080 SCREW |
90159-60080 |
US $3.52 |
||
|
9015960234
|
9015960234
90159-60234 New Genuine Part |
90159-60234 |
US $1.75 |
||
|
9018906005
|
9018906005
90189-06005 CLIP |
90189-06005 |
US $2.08 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.99 |
||
|
9018906034
|
9018906034
90189-06034 GROMMET |
90189-06034 |
from US $0.84 |
||
|
9046712033
|
9046712033
90467-12033 New Genuine Part |
90467-12033 |
US $2.77 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
