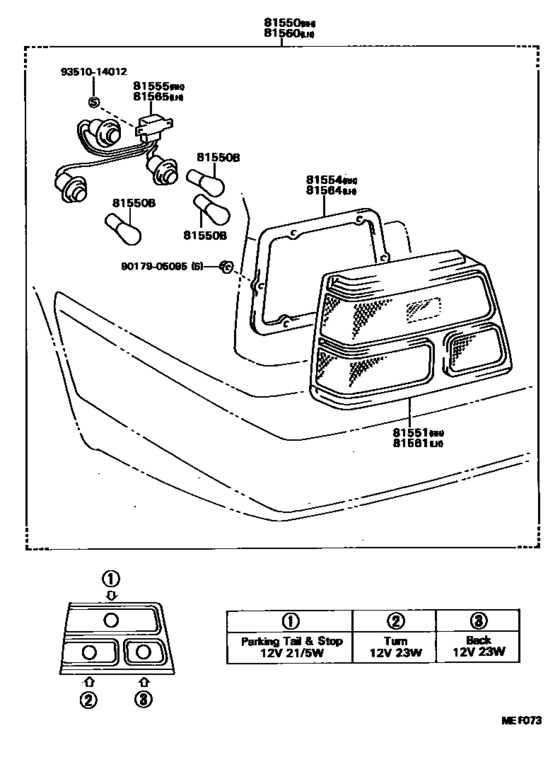

Rear Combination Lamp ([08.1984 - ] (8408- )) Diagram Toyota COROLLA
- Year
- 1984 - 1986
- Sales region
- Japan
- Frame
- AL21
- grade
- SR
- body
- SED
- ENGINE
- 3ASU
- TRANSMISSION
- MTM
- Model
- COROLLA 2
- From
- 08.1984
- To
- 04.1986
- Gear Shift Type
- 5F
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-80180 Lamp Assy, Rear Combination, RhREAR COMBINATION, RH [03.1983 - 08.1984] AL20..3DS..GL; AL21;AL20..5DS |
81550-80180 |
US $301.39 |
||
|
81550
|
81550
81550-80239 Lamp Assy, Rear Combination, Rh[08.1984 - 04.1986] AL2# |
81550-80239 |
US $301.39 |
||
| replacement | |||||
|
81550
|
81550
81550-16232 Lamp Assy, Rear Combination, Rh[08.1984 - 04.1986] AL2# |
81550-16232 |
US $288.29 |
||
|
81550B
|
81550B
99132-11230
Bulb, Fog Lamp
[05.1982 - 04.1986] AL2# １２Ｖ ２３Ｗ,12V 23W |
99132-11230 |
— | ||
| replacement | |||||
|
81550B
|
81550B
00234-01073 Bulb[05.1982 - 04.1986] AL2# １２Ｖ ２３Ｗ,12V 23W |
00234-01073 |
US $2.34 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[05.1982 - 04.1986] AL2# １２Ｖ ２１／５Ｗ,12V 21/5W |
99132-21210 |
from US $2.81 |
||
|
81551
|
81551
81551-16231 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [03.1983 - 08.1984] AL2# |
81551-16231 |
US $259.17 |
||
|
81551
|
81551
81551-16232 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [08.1984 - 04.1986] AL2# |
81551-16232 |
US $254.80 |
||
|
81554
|
81554
81554-16210
Gasket, Rear Combination Lamp Body, Rh
[05.1982 - 04.1986] AL2# |
81554-16210 |
— | ||
|
81555
|
81555
81555-16230
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[05.1982 - 08.1984] AL2# |
81555-16230 |
— | ||
|
81555
|
81555
81555-16232 Socket & Wire Sub-Assy, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [08.1984 - 04.1986] AL2# |
81555-16232 |
US $64.36 |
||
|
81560
|
81560
81560-80185 Lamp Assy, Rear Combination, LhREAR COMBINATION, LH [03.1983 - 08.1984] AL20..3DS..GL; AL21;AL20..5DS |
81560-80185 |
US $301.39 |
||
|
81560
|
81560
81560-80245 Lamp Assy, Rear Combination, Lh[08.1984 - 04.1986] AL2# |
81560-80245 |
US $301.39 |
||
| replacement | |||||
|
81560
|
81560
81560-16232 Lamp Assy, Rear Combination, Lh[08.1984 - 04.1986] AL2# |
81560-16232 |
US $288.29 |
||
|
81561
|
81561
81561-16231 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [03.1983 - 08.1984] AL2# |
81561-16231 |
US $259.17 |
||
|
81561
|
81561
81561-16232 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.1984 - 04.1986] AL2# |
81561-16232 |
US $254.80 |
||
|
81564
|
81564
81554-16210
Gasket, Rear Combination Lamp Body, Rh
[05.1982 - 04.1986] AL2# |
81554-16210 |
— | ||
|
81565
|
81565
81555-16232 Socket & Wire Sub-Assy, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [08.1984 - 04.1986] AL2# |
81555-16232 |
US $64.36 |
||
|
81565
|
81565
81565-16230
Socket & Wire Sub-Assy, Rear Combination Lamp, Lh
[05.1982 - 08.1984] AL2# |
81565-16230 |
— | ||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $1.93 |
||
|
9351014012
|
9351014012
93510-14012 New Genuine Part |
93510-14012 |
US $1.49 |
||
| replacement | |||||
|
9351014012
|
9351014012
93540-A4014 SCREW TAPPING |
93540-A4014 |
US $1.60 |
||
